RP-HX Series - miniature peristaltic pump with exchangeable pump head

Flow rate: 2 - 400µl/min (Silicone) | 5 - 1000µl/min (Silicone) | 2 - 350µl/min (Olefine)

RP-HX peristaltic pump
RP-HX peristaltic pump front
RP-HX peristaltic pump front 2

Description

Peristaltic pump based on the Ring Pump principle for pumping from micro liters to milliliters.

Easily exchangeable pump head with a magnetic mechanism

Pump head with integrated tube

Minimum dimensions of only 32.0 x 20.0 x 46.0 mm (L x W x D)

Specifications

Motor
Stepper motor
Flow rate
2 - 400 μl/min ± 20%
Silicone: @ Motor rotation: 20-4000 pps
(1/4 micro step)

*5 - 1000 μl/min ± 20%
Silicone: @ Motor rotation: 20-4000 pps
(1/4 micro step)*

*2 – 350 μl/min ± 20%
Olefine: @ Motor-rotation: 20-4000 pps
(1/4 micro step)
Channels
1
Operating pressure (max.)
500mbar
Tube materials
Silicone | Olefine
(other tube materials on request)
Tube sizes
(I.D. x O.D.) 0.5 x 1.5mm | 1.0 x 2.0mm
Operating voltage
3VDC
Dimensions
32.0 x 20.0 x 46.0 mm
Mounting direction
Any

 * Note: For operation above 2000 pps, the maximum operating time is 10 min.

Autoclave sterilization of Pump-head

Model No.
Model No. of Pump-head
Autoclave sterilization of Pump-head
Wire length (mm)
RP-HXP5S-P4A-DC3VS
RK-HXP5S
No
150
RP-HX01S-1A-DC3VS
RK-HX01S
No
150
RP-HXP5F-P25A-DC3VS
RK-HXP5F
No
150
RP-HXP5S-P4E-DC3VS
RK-HXP5S-C
Yes
1150
RP-HX01S-1H-DC3VS
RK-HX01S-D
Yes
1150

Product overview

Model No.
Voltage (DC V)
Discharge rate (mL/min)
Tube Material
ID x OD (mm)
RP-HXP5S-P4A-DC3VS
3
2 - 400
Silicone
0.5 x 1.5
RP-HX01S-1A-DC3VS
3
5 - 1,000
Silicone
1.0 x 2.0
RP-HXP5F-P25A-DC3VS
3
2 - 350
Olefin-based
0.5 x 1.5
RP-HXP5S-P4E-DC3VS
3
2 - 400
Silicone
0.5 x 1.5
RP-HX01S-1H-DC3VS
3
5 - 1,000
Silicone
1.0 x 2.0

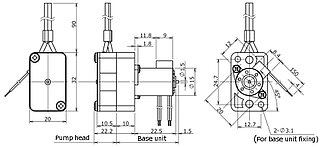

Dimensions

RP-HX Dimensions
Dimensions
RP-HX Mounting holes
Mounting holes
RP-HX Discharge direction
Discharge direction
Ring Pump - Schlauchpumpensystem

Ring Pump - peristaltic pump system

The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
