RP-RO - 6-channel micro peristaltic pump - up to 0,830 ml/min each channel

  • approx. 830 µl/min each channel (DC-Motor)
  • approx. 0,23 - 350 µl/min each channel (Stepper-Motor)

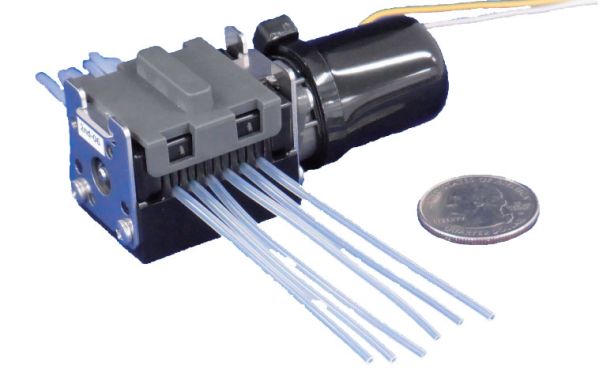

 6-channel micro peristaltic pump

Description

Peristaltic pump for 6 channel simultaneous pumping of up to 830 µl/min for the version with DC motor and 0.23 to 350 µl/min for the version with stepper motor.

Easy tube replacement

Minimum dimensions of only 84.0 x 31.0 x 32.0 mm (L x W x D)

Specifications

Motor DC motor Bipolar Stepper Motor
Flow rate approx. 0.8 ml/min per channel approx. 0.23 - 350 μl/min per channel
Channels 6 6
Operating pressure (max.) 300mbar 300mbar
Tube materials Silicone
(other tube materials on request)
Silicone
(other tube materials on request)
Tube sizes (I.D. x O.D.) 1,0 x 2,0mm 1,0 x 2,0mm
Operating voltage 3VDC 10VDC
Dimensions 84.0 x 31.0 x 32.0 mm 84.0 x 31.0 x 32.0 mm
Mounting direction Any Any
