RP-2GII Series - Ring Pump peristaltic pump

Flow rates: 20ml/min | 25ml/min | 30 ml/min | 35ml/min | 50ml/min | 70ml/min | 80ml/min

RP-2GII Series - Ring Pump Peristaltic Pump
RP-2GII Series - Dimensions

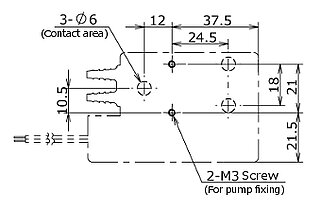

RP-2GII Series - Mounting Dimensions
RP-2GII Series - Inputs/ Outputs

Description

Double-head peristaltic pump based on the Ring Pump principle for pumping different fluids depending on the tube material in different flor rate ranges.

Specifications

Motor DC gear motor
Flow rate 20ml/min | 25ml/min | 30 ml/min | 35ml/min | 50ml/min | 70ml/min | 80ml/min
Channels 2
Operating pressure (max.) 500mbar
Tube materials Silicone | PharMed® | Norprene® | TM-15
Tube sizes (I.D. x O.D.) 2.0 x 4.0mm | 2.0 x 4.2mm | 2.5 x 4.5mm | 2.8 x 4.8mm
Operating voltage 12VDC | 24VDC
Dimensions 74.0 x 27.0 x 47.5 mm
Mounting direction Any
Ring Pump - Schlauchpumpensystem

Ring Pump - peristaltic pump system

The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
