RP-KII Series - Ring Pump peristaltic pump

Flow rates up to 250ml/min, 24VDC motor

RP-K2 Series - Ring Pump Peristaltic Pump
RP-K2 Series - Dimensions
RP-K2 Series - Mounting

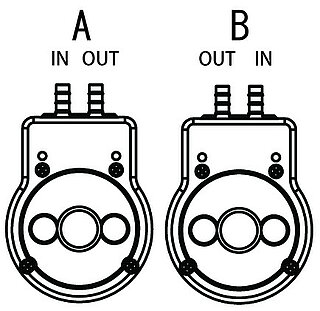

RP-K2 Series - Input / Output

Description

Peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.

Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)

Compact, economical design with fixed tube.

Specifications

Motor DC gear motor
Flow rate 50 ml | 100 ml | 150 ml | 200 ml | 250 ml
Channels 1
Operating pressure (max.) 500mbar
Tube materials Silicone | Norprene® | TM-15
Tube sizes (I.D. x O.D.) 4.8 x 8.0mm | 6.5 x 9.9mm | 6.35 x 9.52mm
Operating voltage 24VDC
Dimensions 79.0 x 29.6 x 100.0 mm
Mounting direction Any
Ring Pump - Schlauchpumpensystem

Ring Pump - peristaltic pump system

The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
