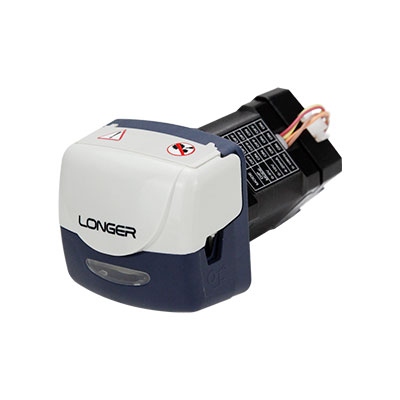

Peristaltic pump with BPH01 flip‑type pump head – quick and easy tubing change
Four rollers in the BPH01 pump head ensure smooth, low‑pulsation fluid transfer.
Description
- Version SC01: Pump communication control via RS485 interface with support for Modbus RTU for easy system integration
- Version SE01: Flexible pump control via digital, analog, and pulse signals for versatile applications and straightforward system integration

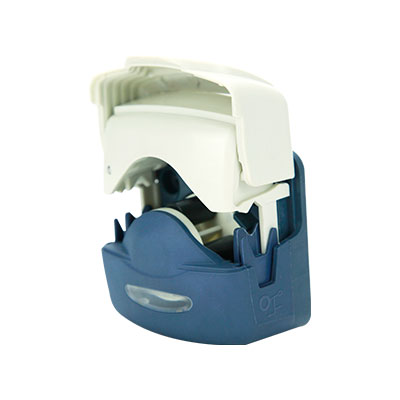

- BPH01 pump head with flip‑type design for particularly quick and easy tubing loading
- Spring‑loaded pump mechanism ensures longer tubing life and precise pressure control
- 4‑roller design provides smooth, low‑pulsation fluid transfer
- High flexibility through support of various tubing sizes with 1.6 mm wall thickness in the BPH01 pump head
- Motor versions available with 100 rpm and 400 rpm
Specifications
Parameter
|
TX00-SE01 + BPH01
|
TX00-SC01 + BPH01
|
|---|---|---|
Pump Speed
|
0–100 rpm (T100) 0–400 rpm (T400) |
0–100 rpm (T100) 0–400 rpm (T400) |
Rollers
|
4
|
4
|
Speed Resolution
|
0.1 rpm
|
Modbus RTU: 0.01 rpm Longer OEM protocol: 0.1 rpm 1 rpm (400 rpm versions) |
Running Direction Control
|
Controlled via switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = clockwise, contact closed = counterclockwise
|
Controlled via RS485 communication commands
|
Start/Stop Control
|
Controlled via switch signal (dry contact); trigger mode configurable (level or pulse); default: level trigger; contact open = start, contact closed = stop
|
Controlled via RS485 communication commands
|
Control Functions
|
–
|
Control of speed, start/stop, running direction, and priming function (full speed) via communication commands; power‑up status configurable
|
DIP Switch – Speed Setting
|
0–100 rpm; each DIP position corresponds to 5 rpm
|
0–100 rpm; each DIP position corresponds to 5 rpm
|
External Speed Signals
|
4–20 mA, 0–5 V, 0–10 V, 0–10 kHz; signal‑to‑speed mapping configurable via communication commands
|
–
|
Communication Interface
|
–
|
RS485
|
Communication Parameters
|
–
|
Baud rate: 1200 / 9600 / 19200 / 115200 bps; Parity: None / Even; Pump address: 1–32; Stop bit: 1 bit
|
Output
|
DC 5 V / 10 mA
|
DC 5 V / 10 mA
|
Power Supply
|
DC 24 V / 8 W
|
DC 24 V / 8 W
|

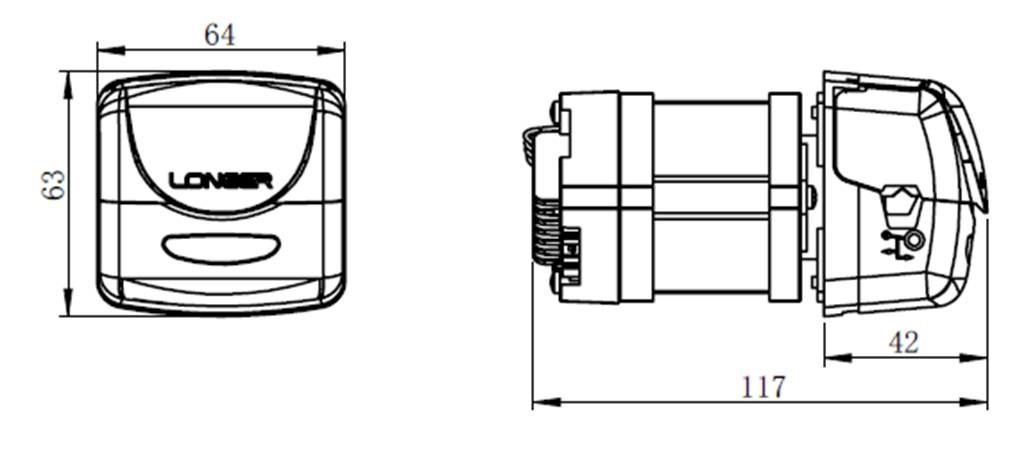

Dimensions (L × W × H)
|
117 × 64 × 63 mm
|
117 × 64 × 63 mm
|
Mounting Method
|
Panel mount
|
Panel mount
|
Operating Conditions
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Temperature: 0–40 °C; relative humidity < 80 %
|
Weight
|
0.54 kg
|
0.54 kg
|
Dimensions

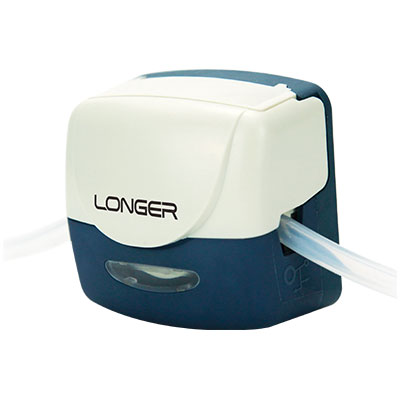

Compatible tubing
Pump Drive
|
Max. Speed
|
Tubing
|
Max. Flow Rate (mL/min)
|
|---|---|---|---|
T100-SE01 & BPH01
|
100 rpm
|
13#, 14#, 19#, 16#, 25#
|
82
|
T400-SE01 & BPH01
|
400 rpm
|
13#, 14#, 19#, 16#, 25#
|
340
|
Flow rates
