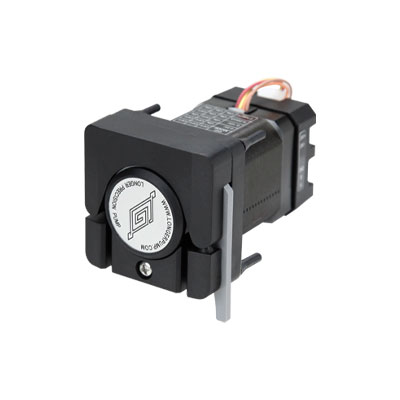

Precision peristaltic pump T100-WX10 - 2.5µl/min to 40ml/min
High precision, due to stepper motor control 0.1rpm to 100rpm
Available in versions with control mode:
- Dial switch and external signal (4-20 mA)
- Dial switch and external signal (0-5 V)
- Dial switch and external signal (0-10 V)
- Dial switch and external signal (0-10 kHz)
- RS485 communication
For tubing with 0.8-1.0mm wall thickness and up to 3.17mm inner diameter.
From 2.5 µl/min with 0.5 x 0.8 mm (ID x WT) tubing and 0.1 rpm.
Up to 40ml/min with 3.0 x 1.0mm (ID x WT) tubing and 100 rpm.
Pumphead with 4 rollers or for lower pulsation with 8 rollers.

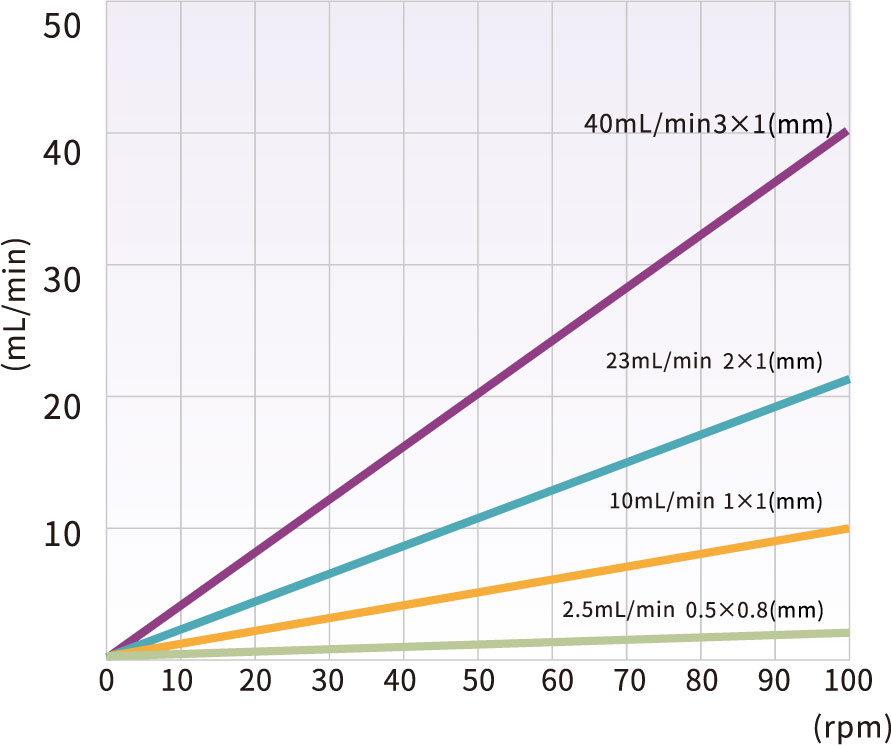

Max. flow rate
4 | 8
ID ≤ 3.17mm, wall thickness 0.8mm - 1.0mm
Direction is controlled by external switch signal. CW when switch is open, CCW when switch is closed.
Start/stop is controlled by external switch signal. Pump runs when switch is open, stops when switch is closed.
*BCD dial switch speed control
The speed is divided into 15 grades. BCD position 1-F corresponding to (rpm) 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 (rpm)
*External speed control (optional)
4-20mA corresponding to 0.1-100rpm, 0-5V corresponding to 0-100rpm, 0-10V corresponding to 0-100rpm, 0-10kHz corresponding to 0-100rpm
**Communication pump ID
Pump ID range is 1-30
1200bps or 9600bps

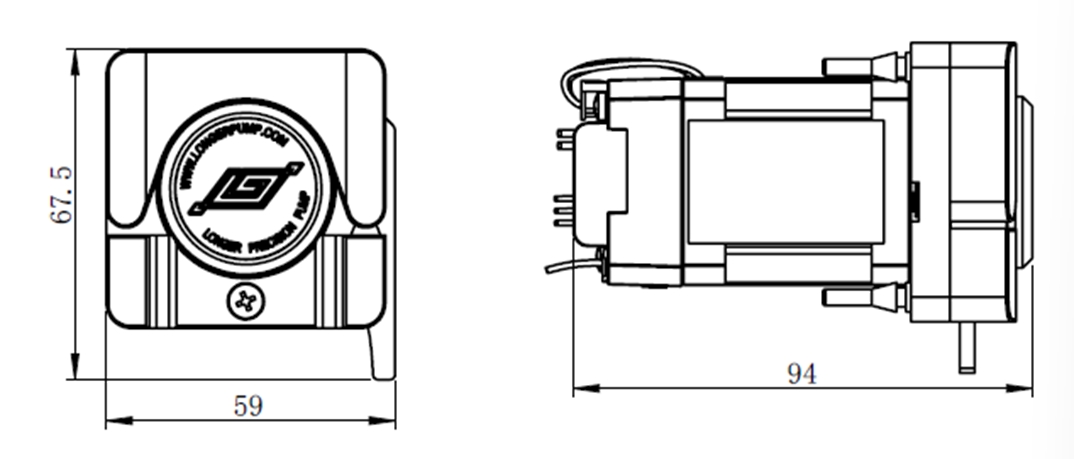

Dimension (L x W x H)
106 x 60 x 81 (mm)
0°C - 40°C
DC 11.4V - 25.2V
Items with * are only available for products with dial switch and external speed control signal.
Items with ** are only available for product with RS485.
