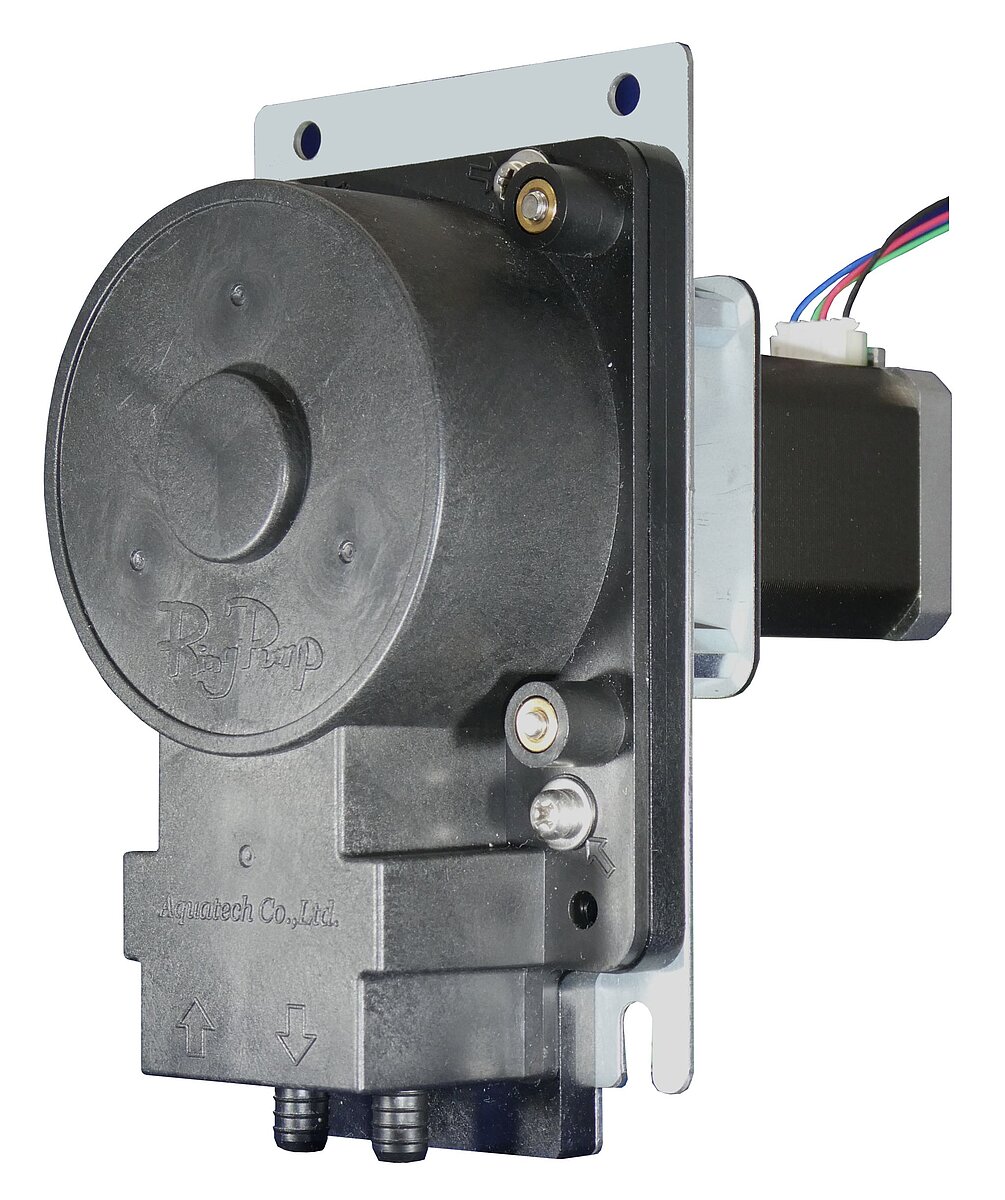

RP-WII Series - Ring Pump peristaltic pump - robust design
Flow rates up to 500ml/min, 24VDC motor | 0.8 to 700 mL/min with stepper motor
Description
Peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.
Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)
This peristaltic pump series is a dual type pump with two tubes and two rotors inside.
The pump uses tubing with an inner diameter of 4 mm and an outer diameter of 8 mm (wall thickness 2 mm). Compared to the 1.5 mm wall thickness tubing used in our other pumps with similar or higher flow rates, the thicker wall provides greater resilience when compressed, which improves suction performance - typically a weak point of peristaltic pumps.
The stepper motor drive allows for a wide adjustable flow rate range from 0.8 to 700 mL/min.
The dual-type design helps reduce discharge flow pulsation compared to single-head pumps.
Specifications
Motor
|
DC gear motor | Stepper motor
|
Flow rate
|
350ml | 500ml | 0.8 to 700 ml/min.
|
Channels
|
1
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
PharMed®
|
Tube sizes (I.D. x O.D.)
|
4.0 x 8.0mm
|
Operating voltage
|
24VDC
|
Mounting direction
|
Any
|
Product overview
Model No.
|
Motor
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
Motor
|
|---|---|---|---|---|---|---|
RP-WII04F-350Z-DC24V
|
DC gear motor
|
24
|
350
|
PharMed BPT
|
4.0 x 8.0
|
Motor A
|
RP-WII04F-500Z-DC24V
|
DC gear motor
|
24
|
500
|
PharMed BPT
|
4.0 x 8.0
|
Motor A
|
RP-WII04F-700Z-DC24V
|
DC gear motor
|
24
|
700
|
PharMed BPT
|
4.0 x 8.0
|
Motor B
|
RP-WII04F-700Z-DC24VS
|
Schrittmotor
|
24
|
0,8 (@ 0.3 U/min) bis 700 (@ 250 U/min)
|
PharMed BPT
|
4.0 x 8.0
|

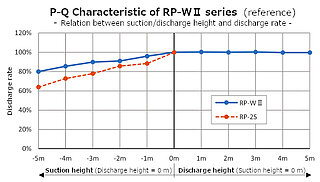

Relation between suction / discharge height and discharge rate
Dimensions (DC-Motor Versions)

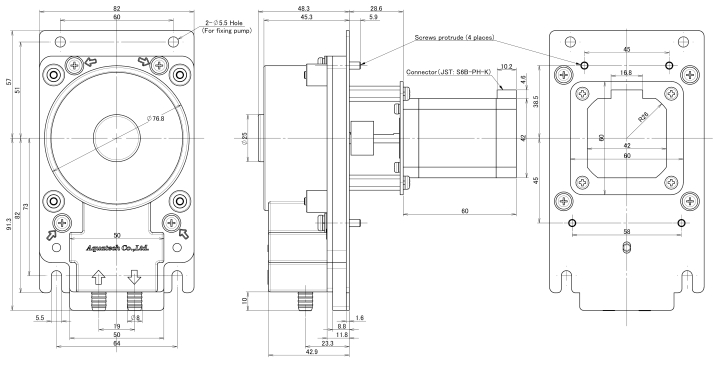

Dimensions (Stepper Motor Versions)

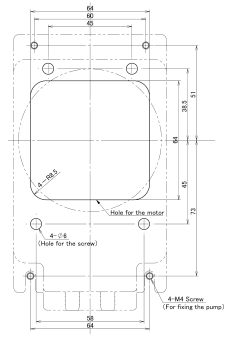

Mounting holes
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
Stepper motor driver board BD202412-S
- This stepper motor driver is used to connect the motor and the power supply, and to control the motor via external control signals.
- A separate control device is required to send the control signals.
- A 24 V DC, 2 A power supply is needed.
Downloads
RP-WII datasheet 661 KB
