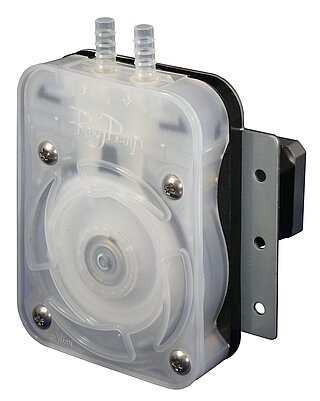

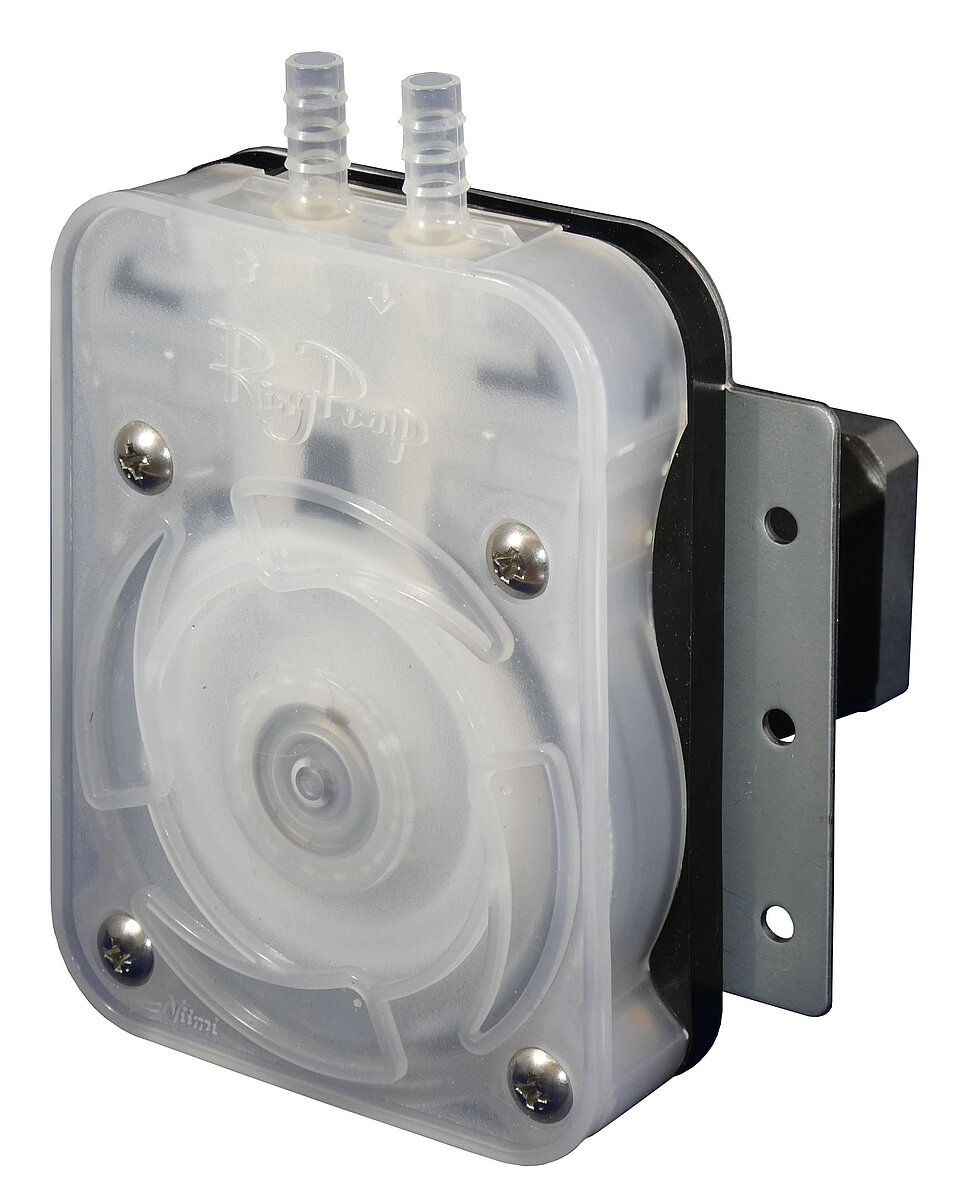

RP-S Series - Ring Pump peristaltic pump - high flow rate
Flow rates: 500ml/min, 700ml/min, 800ml/min, 0.7 to 600 ml/min
Description
Peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.
Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)
For the peristaltic pump version with stepper motor, the flow rate can be adjusted over a wide range from 0.7 to 600 mL/min.
Large flow rate with fixed tube - also available in double-head version.
Specifications
Motor
|
DC gear motor | Stepper motor
|
Flow rate
|
500ml | 700ml | 800ml | 0.7 to 600 ml/min.
|
Channels
|
1
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Norprene® | PharMed® | TM-15
|
Tube sizes (I.D. x O.D.)
|
6.35 x 9.52mm | 7.00 x 10.00mm
|
Operating voltage
|
24VDC
|
Mounting direction
|
Any
|
* Double head version available. (see RP-2S)
Product overview
Model No.
|
Motor
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube
|
ID x OD (mm)
|
Motor
|
Rotation direction
|
|---|---|---|---|---|---|---|---|
RP-S06N-500Z-DC24V
|
DC gear motor
|
24
|
500
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-S06F-500Z-DC24V
|
DC gear motor
|
24
|
500
|
PharMed BPT
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-S06W-500Z-DC24V
|
DC gear motor
|
24
|
500
|
Transmaster TM-15
|
6.35 x 9.52
|
Motor A
|
CW
|
RP-S06N-700Z-DC24V
|
DC gear motor
|
24
|
700
|
Tygon A-60-F
|
6.35 x 9.52
|
Motor B
|
CW
|
RP-S06F-700Z-DC24V
|
DC gear motor
|
24
|
700
|
PharMed BPT
|
6.35 ｘ 9.52
|
Motor B
|
CW
|
RP-S07W-800Z-DC24V
|
DC gear motor
|
24
|
800
|
Transmaster TM-15
|
7 ｘ 10
|
Motor B
|
CW
|
RP-S06N-600Z-DC24VS
|
Stepper motor
|
24
|
0,7 (at 0.3 rpm) to 600 (at 250 rpm)
|
Tygon A-60-F
|
6.35 x 9.52
| ||
RP-S06N-600R-DC24VS
|
Stepper motor
|
24
|
0,7 (at 0.3 rpm) to 600 (at 250 rpm)
|
Versilon F-5500-A
|
6.35 x 9.52
| ||
RP-S06N-600F-DC24VS
|
Stepper motor
|
24
|
0,7 (at 0.3 rpm) to 600 (at 250 rpm)
|
PharMed BPT
|
6.35 x 9.52
| ||
RP-S06N-600W-DC24VS
|
Stepper motor
|
24
|
0,7 (at 0.3 rpm) to 600 (at 250 rpm)
|
Transmaster TM-15
|
6.35 x 9.52
|
Relation between suction / discharge height and discharge rate
Dimensions (DC-Versions)

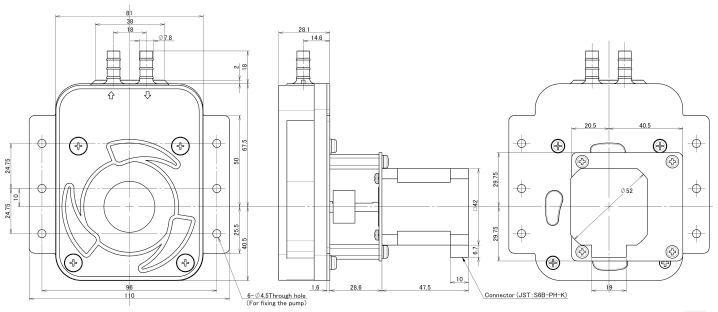

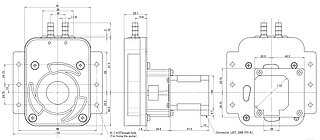

Dimensions (Stepper motor versions)
Mounting holes
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.

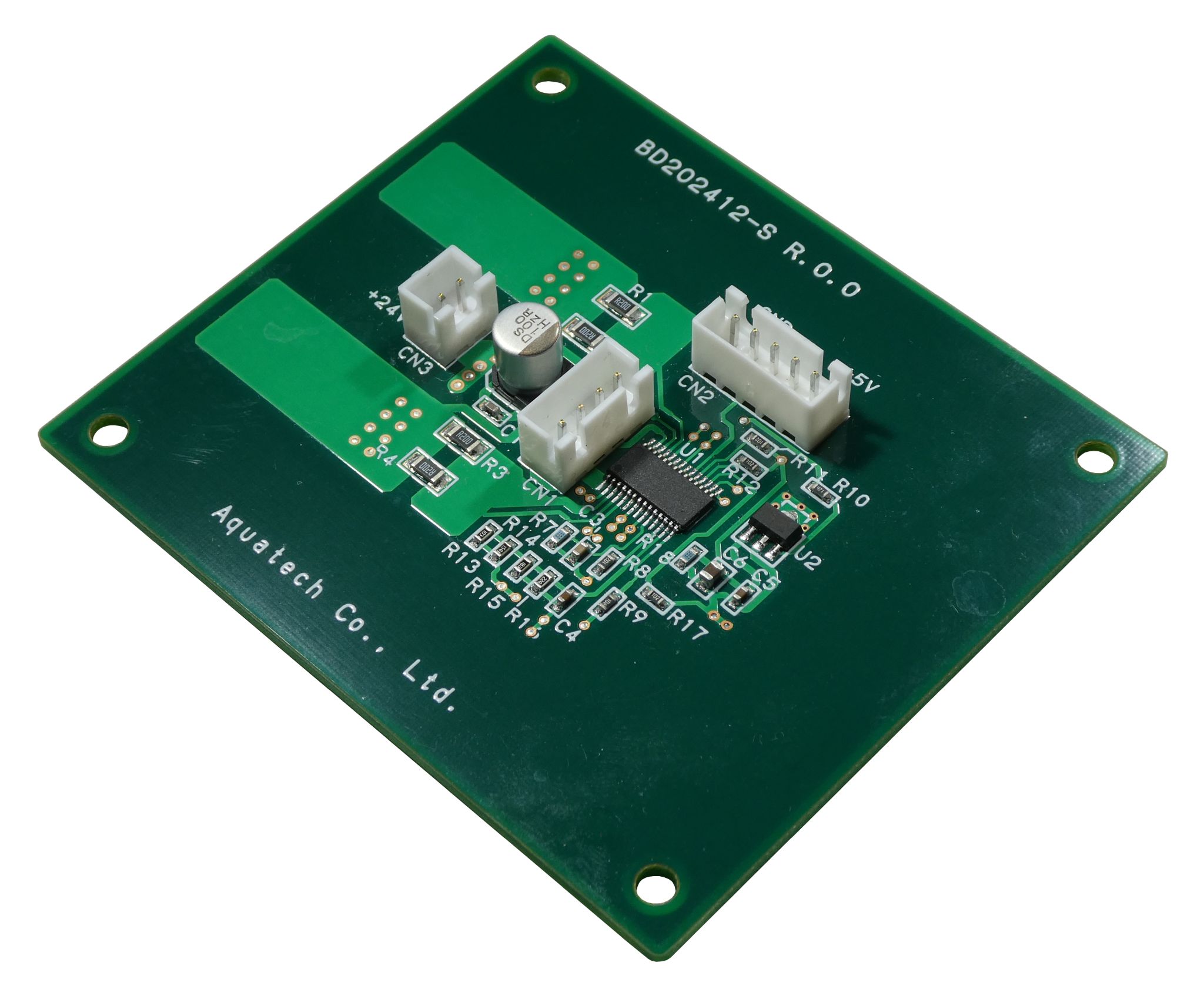

Stepper motor driver board BD202412-S
- This stepper motor driver is used to connect the motor and the power supply, and to control the motor via external control signals.
- A separate control device is required to send the control signals.
- A 24 V DC, 2 A power supply is needed.
Downloads
RP-S datasheet 203 KB
