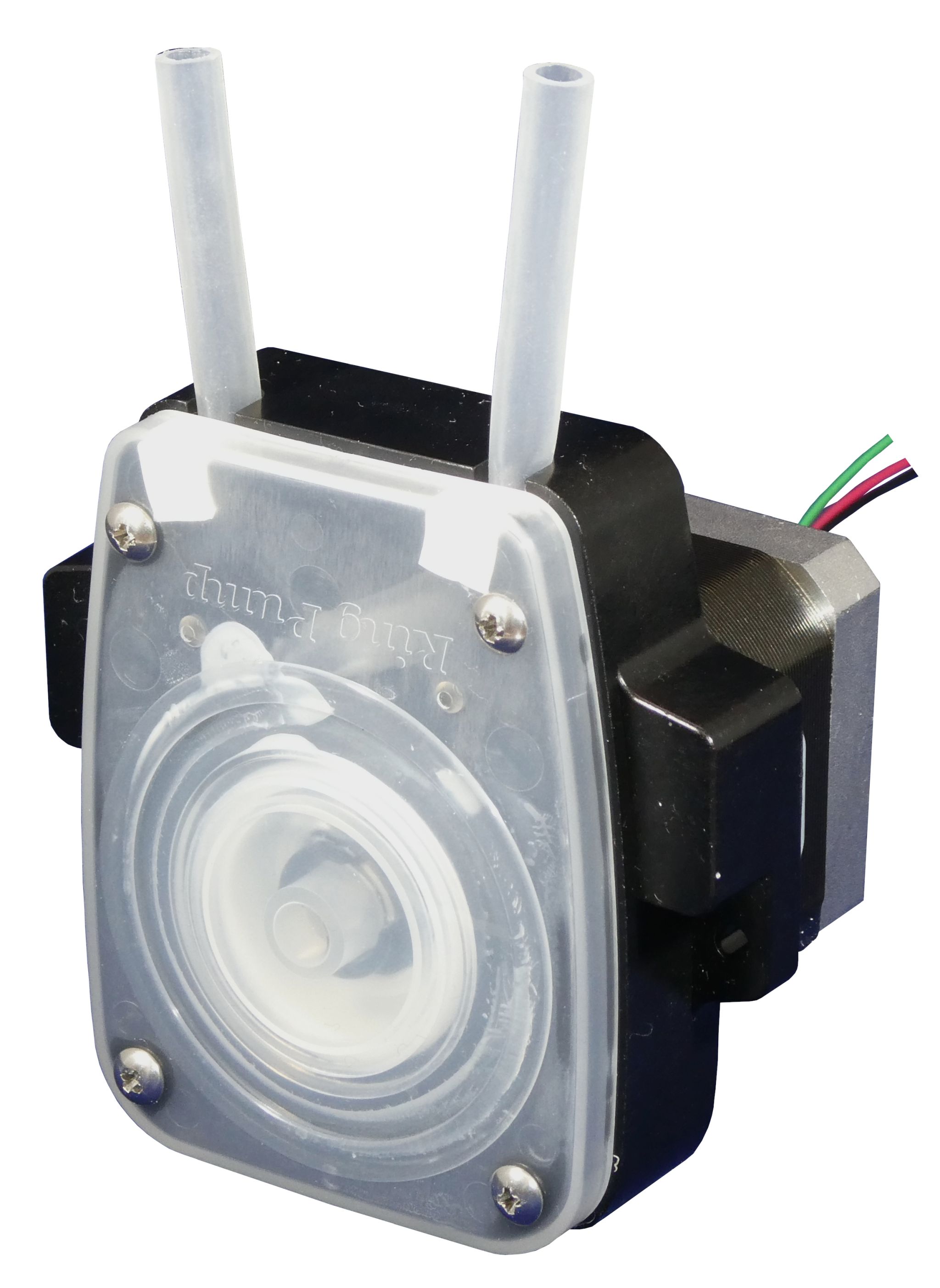

RP-M Series - Ring Pump peristaltic pump compact 24VDC
Flow rates up to 65ml/min | 0.2 to 60 mL/min
Description
Peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.
Significant extension of service intervals due to gentle pump system and durable tubes. (see Ring-Pump System)
Compact design with fixed tubes.
The flow rate of the stepper motor driven pump can be adjusted over a wide range from 0.2 to 60 mL/min.
Specifications
Motor
|
DC gear motor | Stepper motor
|
Flow rate
|
10ml | 20ml | 40ml | 50 ml | 65 ml | 0,2 bis 60 ml/min |
Channels
|
1
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
Silicone | PharMed® BPT | Transmaster TM-15 | SWFT | Tygon A-60-F | Versilon F-5500-A
|
Tube sizes (I.D. x O.D.)
|
2.0 x 4.0mm | 3.0 x 5.0mm | 3.9 x 5.8mm | 4.0 x 6.0mm
|
Operating voltage
|
24VDC
|
Mounting direction
|
Any
|
Product overview
Model No.
|
Motor
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
Dimension of L
|
Rotation direction
|
Discharge direction
|
|---|---|---|---|---|---|---|---|---|
RP-M02S-5Z-DC24V
|
DC gear motor
|
24
|
5
|
Silicone
|
2.0 x 4.0
|
30.8
|
CW
|
A
|
RP-M02F-5Z-DC24V
|
DC gear motor
|
24
|
5
|
PharMed BPT
|
2.0 x 4.0
|
30.8
|
CW
|
A
|
RP-M02W-5Z-DC24V
|
DC gear motor
|
24
|
5
|
Transmaster TM-15
|
2.0 x 4.0
|
30.8
|
CW
|
A
|
RP-M03S-10Z-DC24V
|
DC gear motor
|
24
|
10
|
Silicone
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03F-10Z-DC24V
|
DC gear motor
|
24
|
10
|
PharMed BPT
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03W-10Z-DC24V
|
DC gear motor
|
24
|
10
|
Transmaster TM-15
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03S-20Z-DC24V
|
DC gear motor
|
24
|
20
|
Silicone
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03F-20Z-DC24V
|
DC gear motor
|
24
|
20
|
PharMed BPT
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03W-20Z-DC24V
|
DC gear motor
|
24
|
20
|
Transmaster TM-15
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03S-30Z-DC24V
|
DC gear motor
|
24
|
30
|
Silicone
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03F-30Z-DC24V
|
DC gear motor
|
24
|
30
|
PharMed BPT
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M03W-30Z-DC24V
|
DC gear motor
|
24
|
30
|
Transmaster TM-15
|
3.0 x 5.0
|
30.8
|
CW
|
A
|
RP-M04S-50Z-DC24V
|
DC gear motor
|
24
|
50
|
Silicone
|
4.0 x 6.0
|
28.3
|
CCW
|
B
|
RP-M04F-50Z-DC24V
|
DC gear motor
|
24
|
50
|
PharMed BPT
|
4.0 x 6.0
|
28.3
|
CCW
|
B
|
RP-M04W-50Z-DC24V
|
DC gear motor
|
24
|
50
|
Transmaster TM-15
|
4.0 x 6.0
|
28.3
|
CCW
|
B
|
RP-M04C-50Z-DC24V
|
DC gear motor
|
24
|
50
|
SWFT
|
3.9 x 5.8
|
28.3
|
CCW
|
B
|
RP-M04F-70Z-DC24V
|
DC gear motor
|
24
|
65
|
PharMed BPT
|
4.0 x 6.0
|
28.3
|
CCW
|
B
|
RP-M04W-70Z-DC24V
|
DC gear motor
|
24
|
65
|
Transmaster TM-15
|
4.0 x 6.0
|
28.3
|
CCW
|
B
|
RP-M04C-70Z-DC24V
|
DC gear motor
|
24
|
65
|
SWFT
|
3.9 x 5.8
|
28.3
|
CCW
|
B
|
RP-M04N-60Z-DC24VS
|
Stepper motor
|
24
|
0.2 (at 0.3 rpm) to 60 (at 100 rpm)
|
Tygon A-60-F
|
3.9 x 5.8
| |||
RP-M04C-60Z-DC24VS
|
Stepper motor
|
24
|
0.2 (at 0.3 rpm) to 60 (at 100 rpm)
|
SWFT
|
3.9 x 5.8
| |||
RP-M04R-60Z-DC24VS
|
Stepper motor
|
24
|
0.2 (at 0.3 rpm) to 60 (at 100 rpm)
|
Versilon F-5500-A
|
3.9 x 5.8
| |||
RP-M04F-60Z-DC24VS
|
Stepper motor
|
24
|
0.2 (at 0.3 rpm) to 60 (at 100 rpm)
|
PharMed BPT
|
4.0 x 6.0
| |||
RP-M04W-60Z-DC24VS
|
Stepper motor
|
24
|
0.2 (at 0.3 rpm) to 60 (at 100 rpm)
|
Transmaster TM-15
|
4.0 x 6.0
|
Relation between suction / discharge height and discharge rate
Dimensions (DC-Versions)

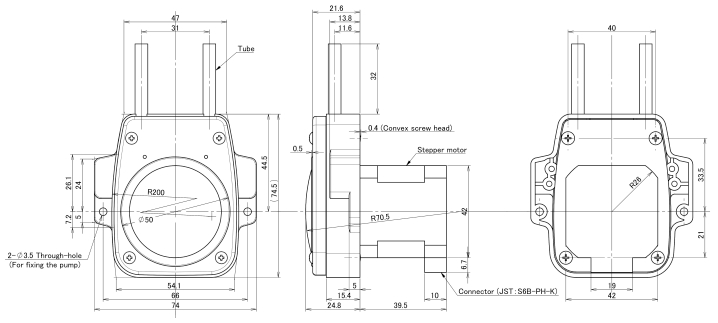

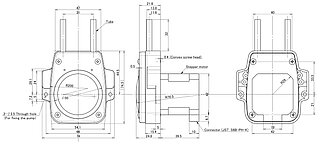

Dimensions (Stepper-Motor-Versions)
Mounting holes
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
Stepper motor driver board BD202411-M
- This stepper motor driver is used to connect the motor and the power supply, and to control the motor via external control signals.
- A separate control device is required to send the control signals.
- A 24 V DC, 2 A power supply is needed.
Downloads
RP-M datasheet 3 MB
