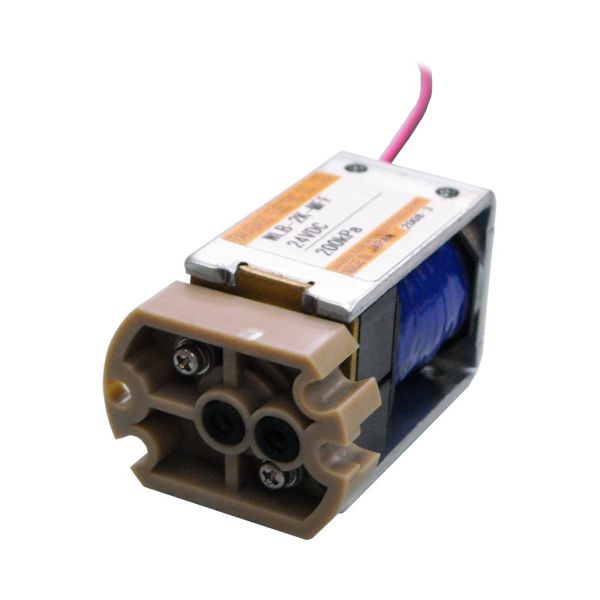

WLB Series - Diaphragm isolation solenoid valve as a latching design
Orifice diameter 1.2 - 2.0mm
Description
2/2-way and 3/2-way diaphragm isolation solenoid valves with fluid separation as a latching design.
A low power consumption is achieved due to the latching design and heat development - optimal for battery operated applications and liquids that react sensitively to heat transfer.
Specifications
Type
|
2/2-way bistable 3/2-way latching |
Orifice diameter
|
1.2 - 2.0 mm
|
Port Connection
|
M6 | 1/4-28UNF | hose barbs | flange
|
Rated voltage
|
12 VDC | 24 VDC other voltages on request |
Operating Pressure range
|
Input: -900 - 2000 mbar Output(NC): 0 - 1000 mbar Output(NC | NO): 0 - 500 mbar |
Diaphragm material
|
PTFE
|
Body material
|
PEEK | PPS | PTFE
|
Diaphragm material
|
PTFE | Perfluoroelastomer (FFKM) | FPM | EDPM
|
Other materials in contact with the medium
|
PTFE
|
Fluid temperature range
|
5 - 50°C
|
Ambient temperature range
|
5 - 50°C
|
Power consumption
|
8W (when switching) |
Operating duration
|
10% ED
|
Mounting direction
|
Any
|
Fluid
|
Resistant to neutral and aggressive liquids / gases (see resistance lists) |
Dimensions
|
24.0 x 20.6 x 55.9 mm
|
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, different port connections, ...)
Downloads
WLB series data sheet 266 KB
