EXV Series - Diaphragm isolation solenoid valve

Orifice diameter 1.0mm

EXV Series
EXV gradient mixing

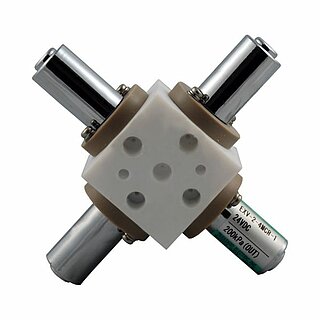

EXV Manifold
EXV valve block
EXV mixer with 12 valves

Description

2/2-way diaphragm isolation solenoid valves with fluid separation.

With a low internal volume of only 4 μl (inlet), 25 μl (outlet) and optimized pumping volume, this valve series can be used to precisely control liquids.

The flange connection and the small size allow for easy integration into compact modules.

Specifications

Type 2/2-way normally closed
Orifice diameter 1.0 mm
Port Connection Flange
Rated Operating voltage 12 VDC | 24 VDC
other voltages on request
Operating Pressure range input: -200 - 2000 mbar
(special models up to 6000mbar)
output: -500 - 2000 mbar
Diaphragm material PTFE
Body material PTFE | PCTFE | PEEK | PPS
Seal material Soft-Seal Perfluoroelastomer (FFKM) | FPM
Fluid temperature range 0 - 40°C (higher temperatures on request)
Ambient temperature range 0 - 40°C (higher temperatures on request)
Power consumption 2,8W
Operating duration 100% ED
Mounting direction Any
Fluid Resistant to neutral and aggressive liquids / gases
(see resistance lists)
Dimensions 14.0 x 25.0 x 31.7 mm

Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, different port connections, ...)
