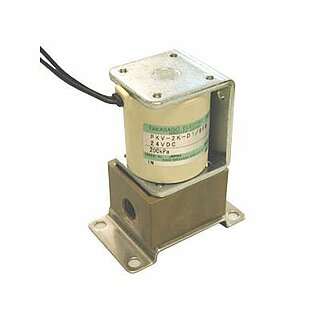

PKV Series - Diaphragm isolation solenoid valve
Orifice diameter 4.0 - 6.0mm
Description
2/2-way and 3/2-way diaphragm isolation solenoid valves with fluid separation and large orifice diameter.
A wide range of connection options allows easy integration into fluidic systems.
Specifications
Type
|
2/2-way normally closed 2/2-way normally open 3/2-way |
Orifice diameter
|
4.0 - 6.0 mm
|
Port Connection
|
Rc1/8 | Rc1/8 | Rc1/4 | 1/8-27NPT | 1/4-18NPT | Hose barbs
|
Rated Operating voltage
|
12 VDC | 24 VDC other voltages on request |
Operating Pressure range
|
Input: -900 - 2000 mbar Output (NC | NO): 0 - 500 mbar |
Diaphragm material
|
PTFE
|
Body material
|
PTFE | PEEK | PPS | HPVC
|
Soft-Seal material
|
Perfluoroelastomer (FFKM) | FPM | EPDM
|
Other wetted materials
|
PTFE | PCTFE | Ceramic - AL2O3 (for 3/2-way)
|
Fluid temperature range
|
5 - 60°C
|
Ambient temperature range
|
5 - 40°C
|
Power consumption
|
6.0 - 10.0 W (depending on model) |
Operating duration
|
100% ED
|
Mounting direction
|
Any
|
Fluid
|
Resistant to neutral and aggressive liquids / gases (see resistance lists) |
Dimensions
|
40.0 x 42.0 x 71.0 - 85.3 mm
|
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, different port connections, ...)
Downloads
PKV data sheet 244 KB
