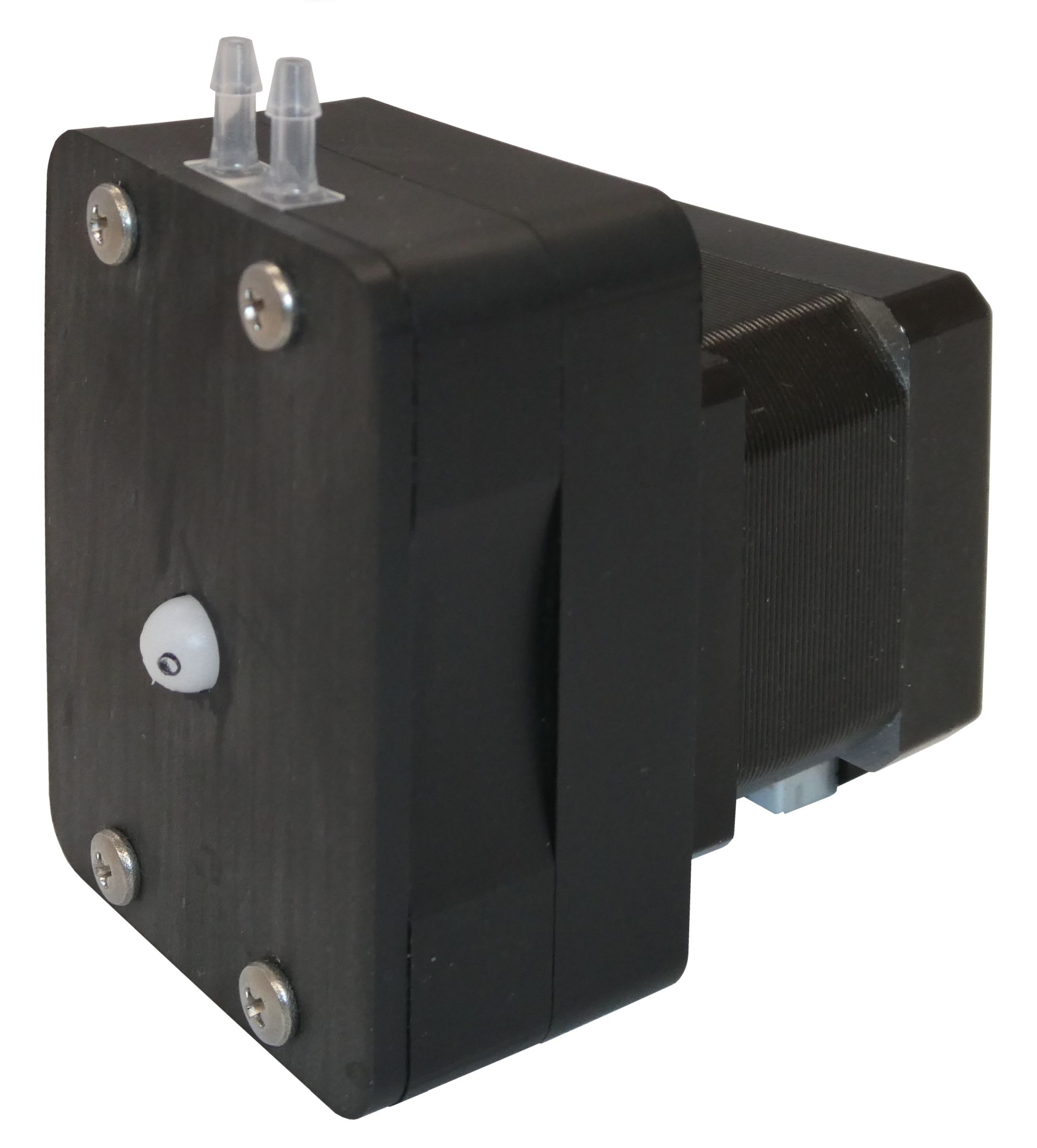

RP-HIII – Ring Pump 0.06 – 45 ml/min – Pump head replaceable & sterilizable
Flow rate: 0.06 (at 0,3 rpm) to 45 (at 250 rpm)
Description
The RP-HIII peristaltic pump is a high-precision, stepper motor-driven system featuring an easily interchangeable pump head.
Precise stepper motor control enables flexible adjustment of flow rates ranging from 0.06 to 45 mL/min, ensuring accurate and consistent fluid delivery.

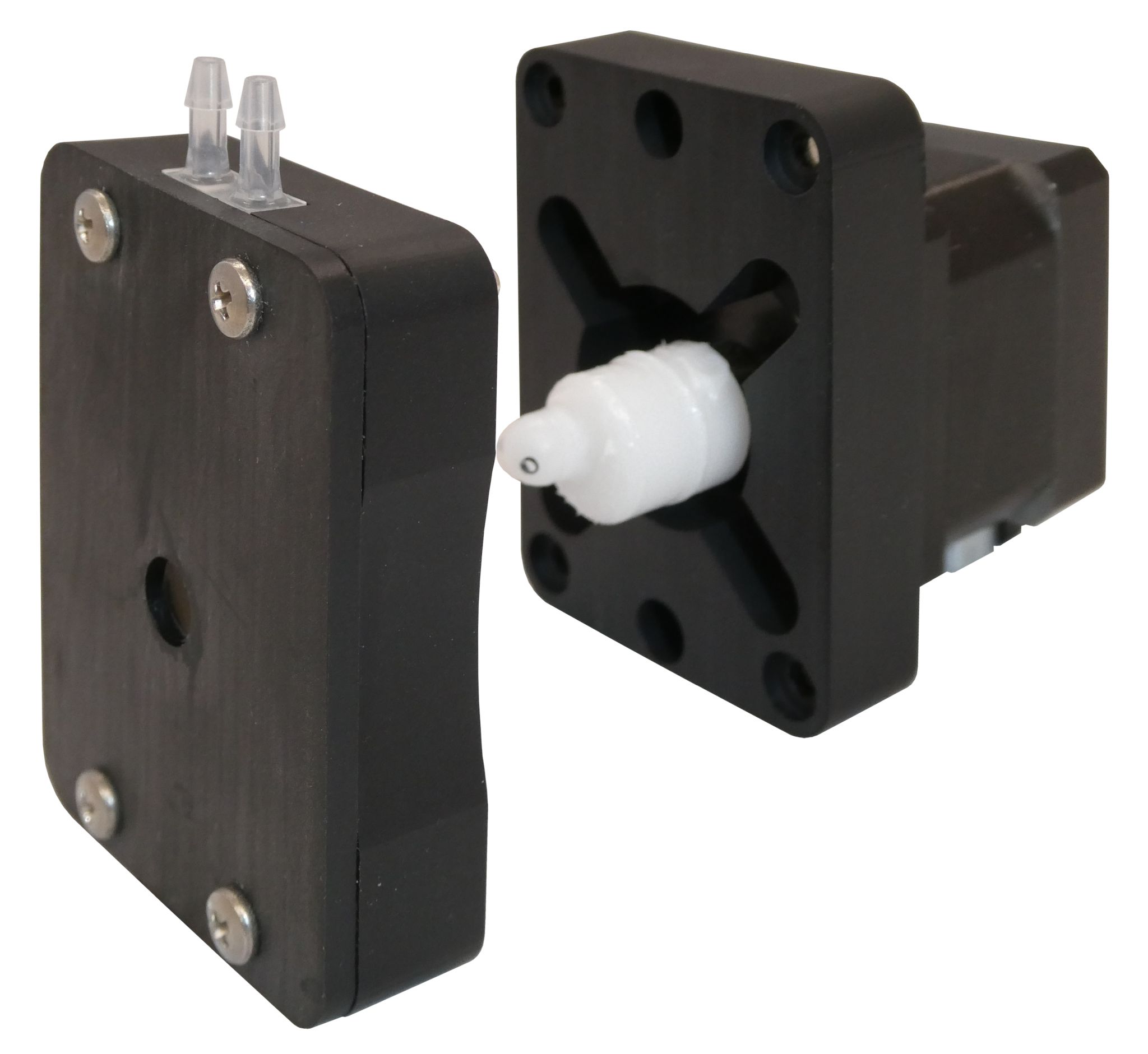

The pump head can be easily replaced using a one-touch magnetic coupling mechanism.
The RP-HIII02S model (equipped with silicone tubing) and the RP-HIII02F model (equipped with PharMed® BPT tubing) are autoclavable under the following conditions:
121 °C for 25 minutes, up to 10 autoclave cycles
All pump heads are also gamma sterilizable up to a maximum dose of 25 kGy, supporting a wide range of sterile processing requirements.
Product overview
Product
|
Motor
|
Voltage (DC/V)
|
Flow rate (ml/min)
|
Tube material
|
Tube size (ID / OD mm)
|
|---|---|---|---|---|---|
RP-HIII02S-45Z-DC24VS
|
Stepper motor
|
24
|
0.06 (at 0.3 rpm) to 45 (at 250 rpm)
|
Silicon
|
2.0 x 4.0
|
RP-HIII02F-45Z-DC24VS
|
Stepper motor
|
24
|
0.06 (at 0.3 rpm) to 45 (at 250 rpm)
|
PharMed BPT
|
2.0 x 4.0
|
RP-HIII02W-45Z-DC24VS
|
Stepper motor
|
24
|
0.06 (at 0.3 rpm) to 45 (at 250 rpm)
|
Transmaster TM-15
|
2.0 x 4.0
|

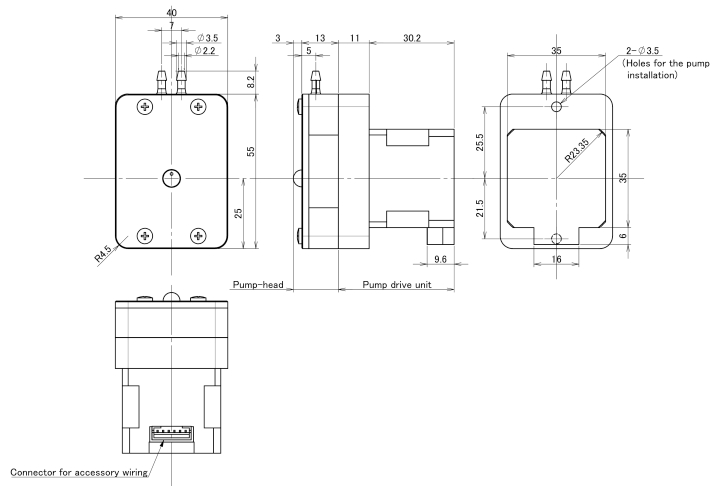

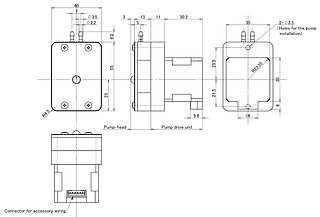

Dimensions

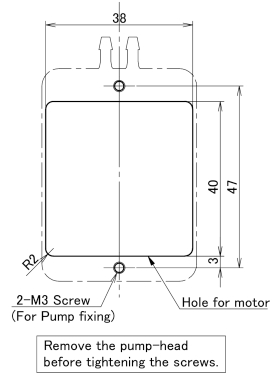

Mounting holes

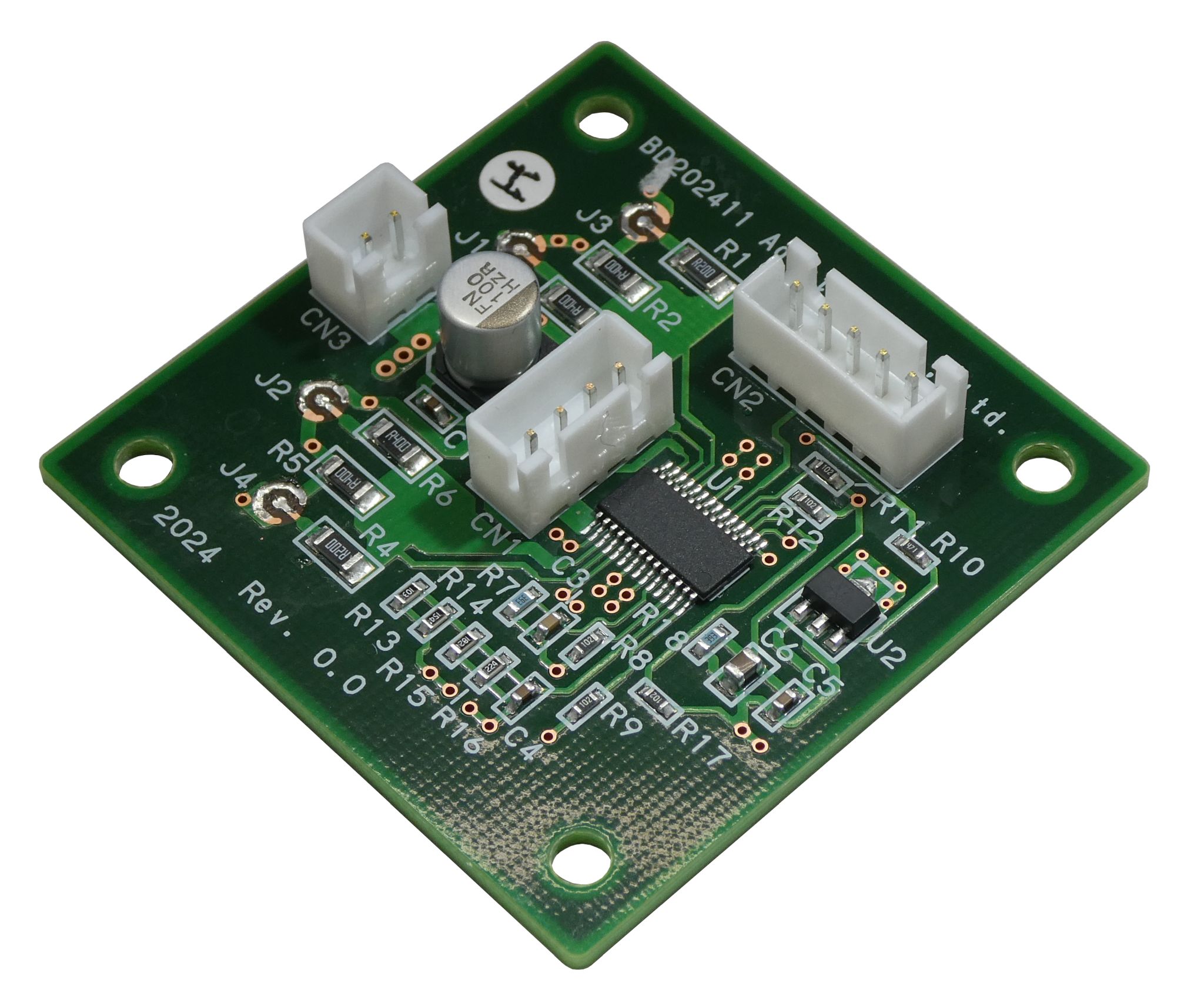

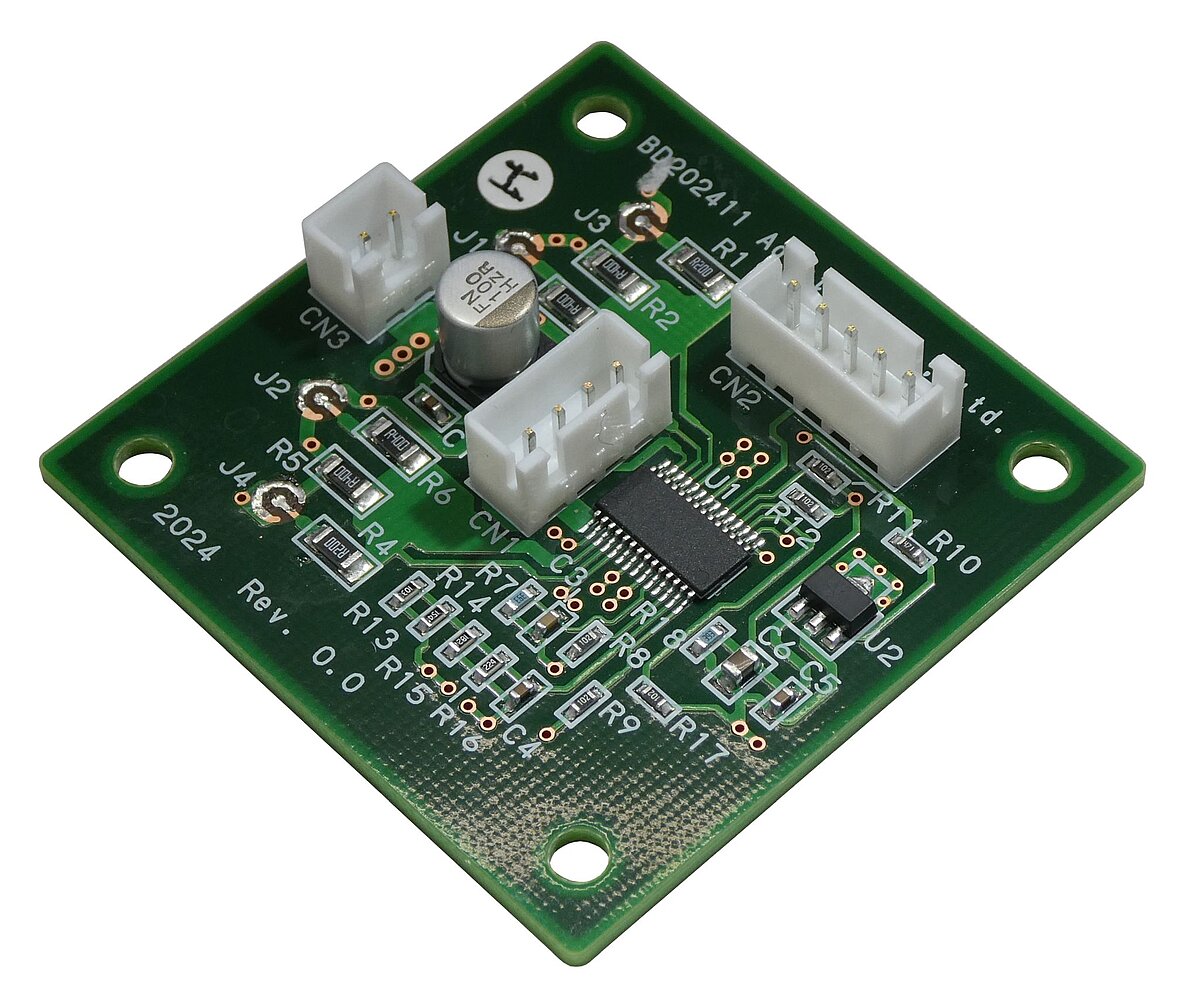

Stepper motor driver board BD202411-H3
- This stepper motor driver is used to connect the motor and the power supply, and to control the motor via external control signals.
- A separate control device is required to send the control signals.
- A 24 V DC, 1 A power supply is needed.
