RP-HII – Ring Pump 0.2 – 200 ml/min – Pump head replaceable & sterilizable

Flow rate: 0.2 (at 0.3 rpm) to 200 (at 250 rpm)

Description

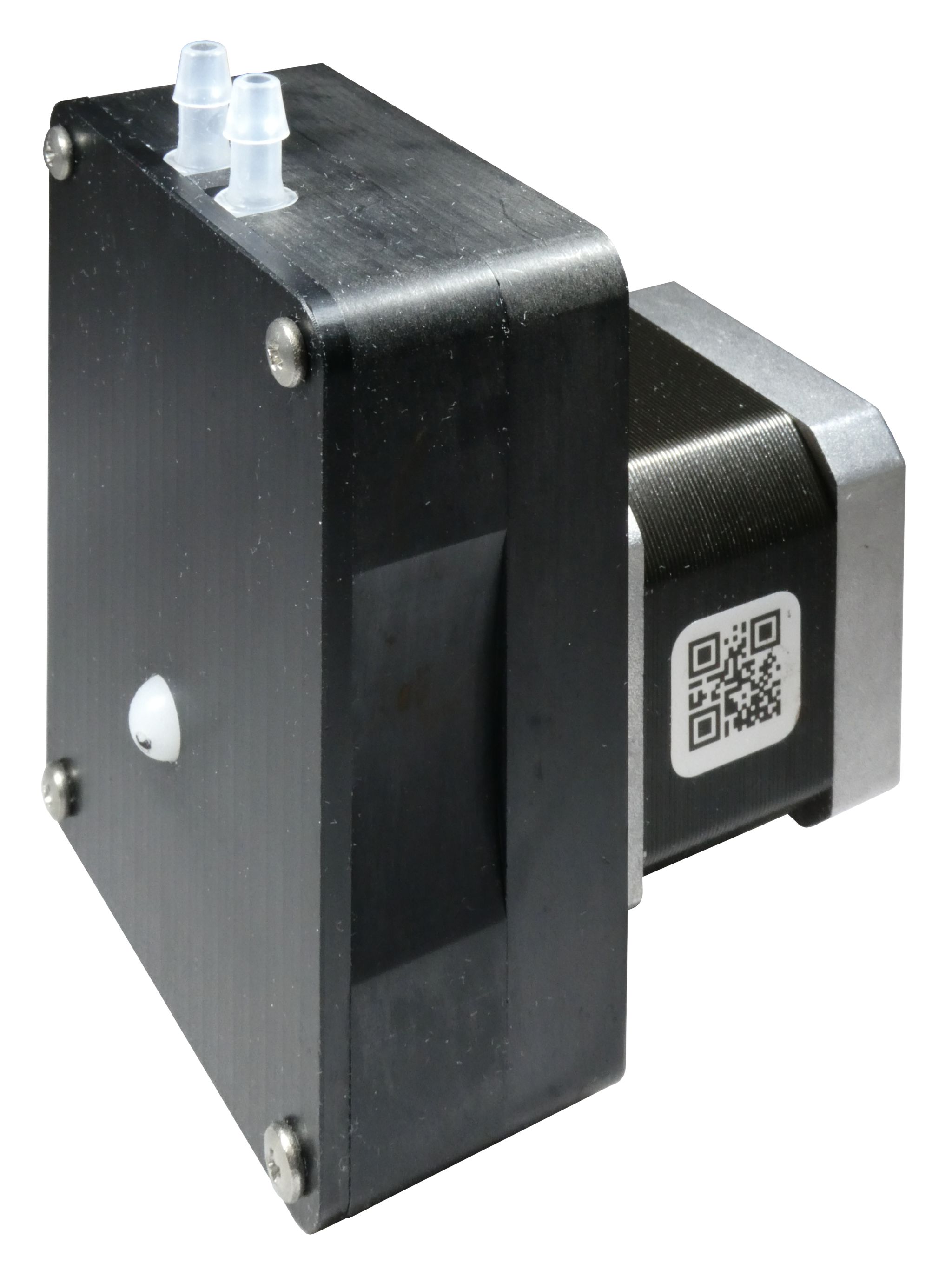

The RP-HII peristaltic pump is a high-precision, stepper motor-driven system featuring an easy interchangeable pump head.
Thanks to precise stepper motor control, the flow rate can be flexibly adjusted within a range of 0.2 to 200 mL/min, ensuring accurate and consistent fluid delivery.
The pump head features an innovative one-touch magnetic coupling system, allowing for quick and tool-free replacement.
The following models are autoclavable under defined conditions: RP-HII04N with Tygon A-60-F tubing, RP-HII04C with SWFT tubing and RP-HII04F with PharMed® BPT tubing:
Autoclaving conditions: 121 °C for 25 minutes, up to 10 sterilization cycles
All pump heads are also gamma sterilizable up to a dose of 25 kGy, supporting sterile applications in demanding environments.
(Note: The sterilization compatibility of the "Versilon F-5500-A" tubing has not been verified.)

Product	Motor	Voltage (DC/V)	Flow rate (ml/min)	Tube material	Tube size (ID / OD mm)
RP-HII04N-200Z-DC24VS	Stepper motor	24	0.2 (at 0.3 rpm) to 200 (at 250 rpm)	Tygon A-60-F	3.9 x 5.8
RP-HII04C-200Z-DC24VS	Stepper motor	24	0.2 (at 0.3 rpm) to 200 (at 250 rpm)	SWFT	3.9 x 5.8
RP-HII04R-200Z-DC24VS	Stepper motor	24	0.2 (at 0.3 rpm) to 200 (at 250 rpm)	Versilon F-5500-A	3.9 x 5.8
RP-HII04F-200Z-DC24VS	Stepper motor	24	0.2 (at 0.3 rpm) to 200 (at 250 rpm)	PharMed BPT	4.0 x 6.0
RP-HII04W-200Z-DC24VS	Stepper motor	24	0.2 (at 0.3 rpm) to 200 (at 250 rpm)	Transmaster TM-15	4.0 x 6.0

This stepper motor driver is used to connect the motor and the power supply, and to control the motor via external control signals.
A separate control device is required to send the control signals.
A 24 V DC, 2 A power supply is needed.
