Slide valve

Slide valve - solenoid driven

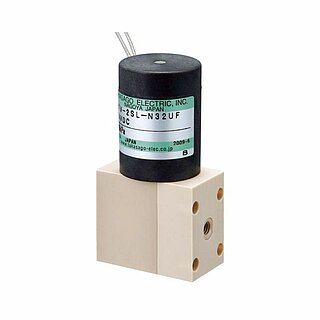

MTV SchieberventilMTV Slide valve
Slide valve Functionality

Description

2/2-way and 3/2-way slider valve, which allows a high pressure range of up to 5bar.

Because of the innovative design, the negative holding pressure effect, which is disadvantageous for many analysis instruments, is almost eliminated and a possible cross-contamination of the samples is also significantly reduced.

Functionality of slider valve 3/2-way

Functionality of slider valve 3/2-way

Functionality of slider valve 3/2-way

Functionality of slider valve 3/2-way

Comparison of the pumping volume effect to conventional valves with separating diaphragm

KV-3K Series pumping volume effect
KV-3K Series pumping volume effect
Slide valve pumping volume effect
Slide valve pumping volume effect

Specifications

Type 2/2-way normally closed
3/2-way
Orifice diameter 0.4 mm | 1.0 mm
Port Connection 10-32UNF (0.4mm orifice size)
M6 | 1/4-28UNF (1.0mm orifice size)
Rated voltage 12 VDC | 24 VDC
other voltages on request
Operating pressure range inlet: -0 - 5000 mbar (0.4mm orifice size)
-900 - 3000mbar (1.0mm orifice size)
Seal material PTFE
Body material PEEK
Other wetted materials Al2O3 (0.4mm OD)
SiC (Silicon Carbide) (1.0mm orifice size)
Inner volume 1.5µl (2/2-way 0.4mm orifice size) | 3.7µl (3/2-way 0.4mm orifice size)
16.5µl (2/2-way 1.0mm orifice size) | 32.2µl (3/2-way 1.0mm orifice size)
Fluid temperature range 10 - 50°C
Ambient temperature range 10 - 50°C
Power consumption 18W (0.4mm orifice size)
16W (1.0mm orifice size)
Operating duraction 100% ED
Mounting direction Any
Fluid resistance neutral and aggressive liquids / gases
(see resistance lists)
Dimensions 24.0 x 34.0 - 38.5 x 62.0 mm (0.4mm orifice size)
38,0 x 38,0 - 41,5 x 86,0 mm (1.0mm orifice size)
