5mm micro solenoid valve up to 5 bar | long life-time

cartridge type valve

5mm microvalve

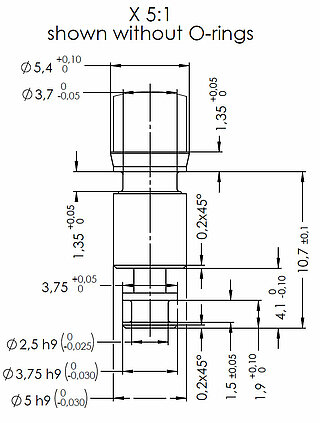

5mm microvalve dimensions

Description

2/2-way normally closed with stainless steel body

Micro valve with an outside diameter of 5 mm with orifice diameters of 0.6 mm.

Weight only ~ 2.4 g.

The compact design and cartridge system enable space-saving integration.

Low power consumption of approx. 0.6 W.

Specifications

Type
2/2 way normally closed
Connection type
Cartridge
Size
5 mm
Voltage
12 VDC
Orifice diameter
0.6 mm
Pressure range
0 - 5 bar
Gasket
FKM | EPDM
Max. ambient temp.
60 °C
Body material
stainless steel (1.4305)
Inner parts material
stainless steel (1.4310/1.4105)
Power consumption
~ 0.6 W
Operating duration
100% ED
Mounting direction
Any (preferably upright)
Weight ~ 2.4 g
