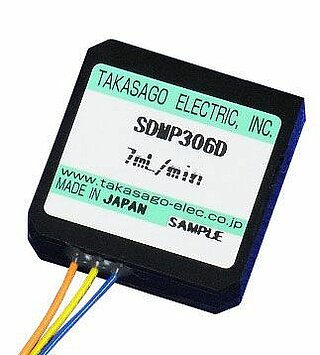

SDMP306D Piezo pump with 7ml/min flow rate and integrated driver

Materials in contact with fluid: COC and EPDM

SDMP306D Piezo pump with 7ml/min flow rate and integrated driver

Description

Piezo pump with 7ml/min as maximum flow rate and integrated driver for control with 5VDC.

The small and thin design as well as the low weight are only some of the advantages of the piezo pumps. The low-noise operation and the very low power consumption open up new possibilities for fluidic systems.

Piezo pump design

Piezopumpen Aufbau SDMP302

Specifications

Flow rate (max.)
7ml/min
Operating pressure (max.)
450 mbar
Suction pressure (max.)
-10mbar (self-priming)
Port connections
hose barbs (O.D. 2.2 - I.D. 1.2 - L 3.2 mm)
Rated voltage
5 VDC
Wetted materials
COC and EDPM
Fluid temperature range
5 - 50°C
Ambient temperature range
5 - 50°C
Weight
approx. 7 g
Power consumption
5 mW standby / 120 mW (typical) Operation
Mounting direction
Any
Dimensions
25.0 x 25.0 x 8.9 mm

Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, higher flow rates, ...)
