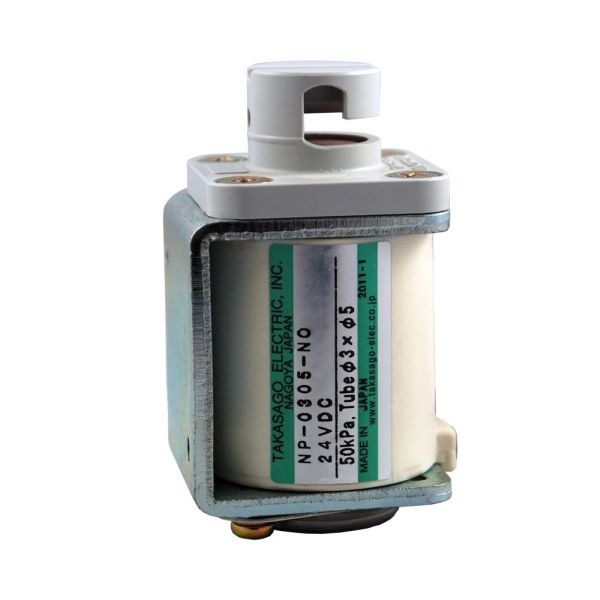

NP Serie - Pinch Valve

Tube size: 1.6-6.4 x 4.0-9.6mm (ID x OD)

NP Series Valve


2/2-way pinch valve.


2/2-way normally closed
2/2-way normally open
Tube inner diameter (ID)
1.6 - 6.4 mm
Tube outer diameter (OD)
4.0 - 9.6 mm
Tube material
Silicone | Pharmed®
Please ask for further tube sizes and types, we will be pleased to adapt our valves to your tube!
Rated voltage
12 VDC | 24 VDC
other voltages on request
Operating pressure range
0 - 500 mbar
Ambient temperature range
0 - 40°C
Power consumption
10 W
Operating duration
100% ED
Mounting direction
36.0 x 40.0 x 64.5 - 87.5 mm

The pinch valves can be customized to your tubes to achieve optimum closing force.

Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage,  ...)
