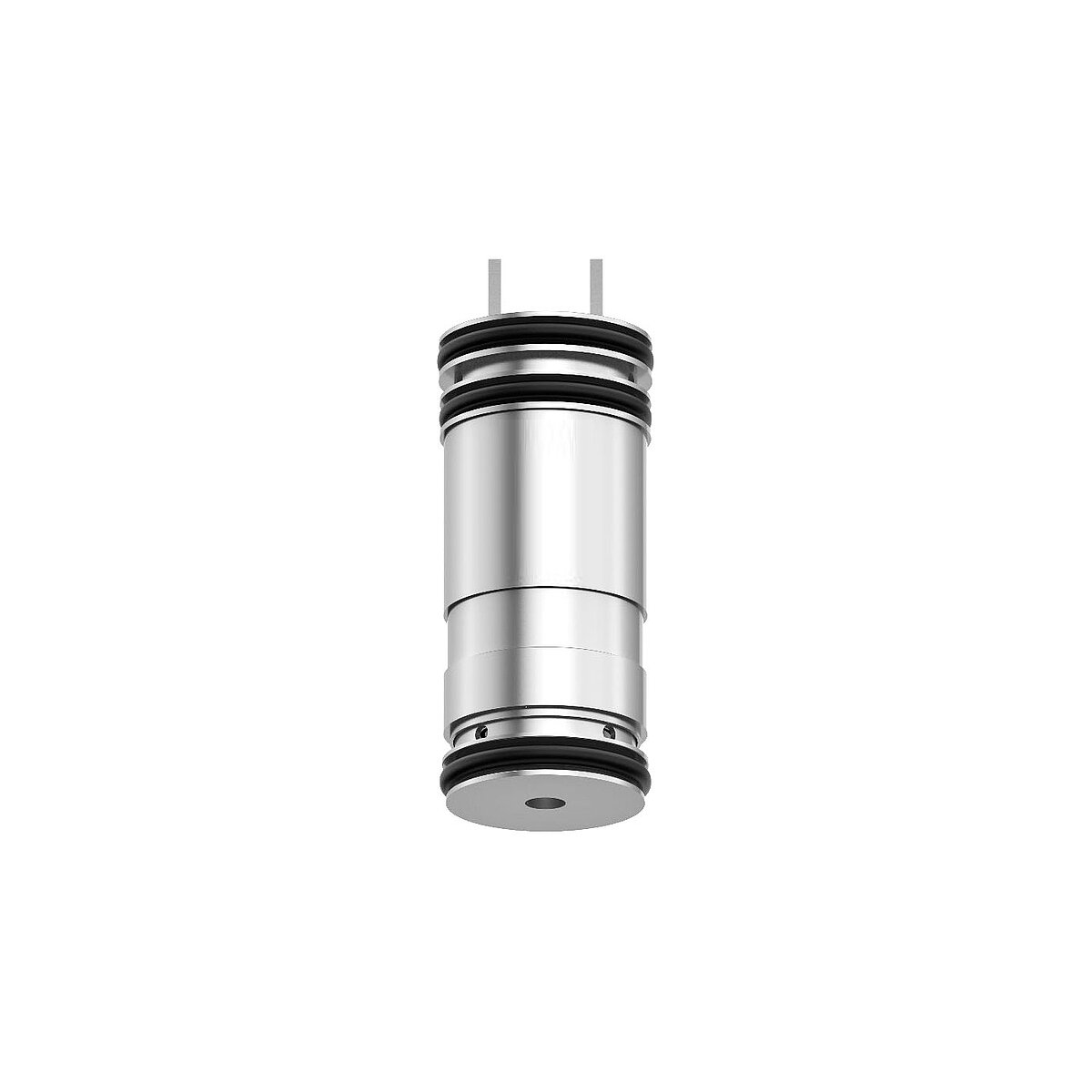

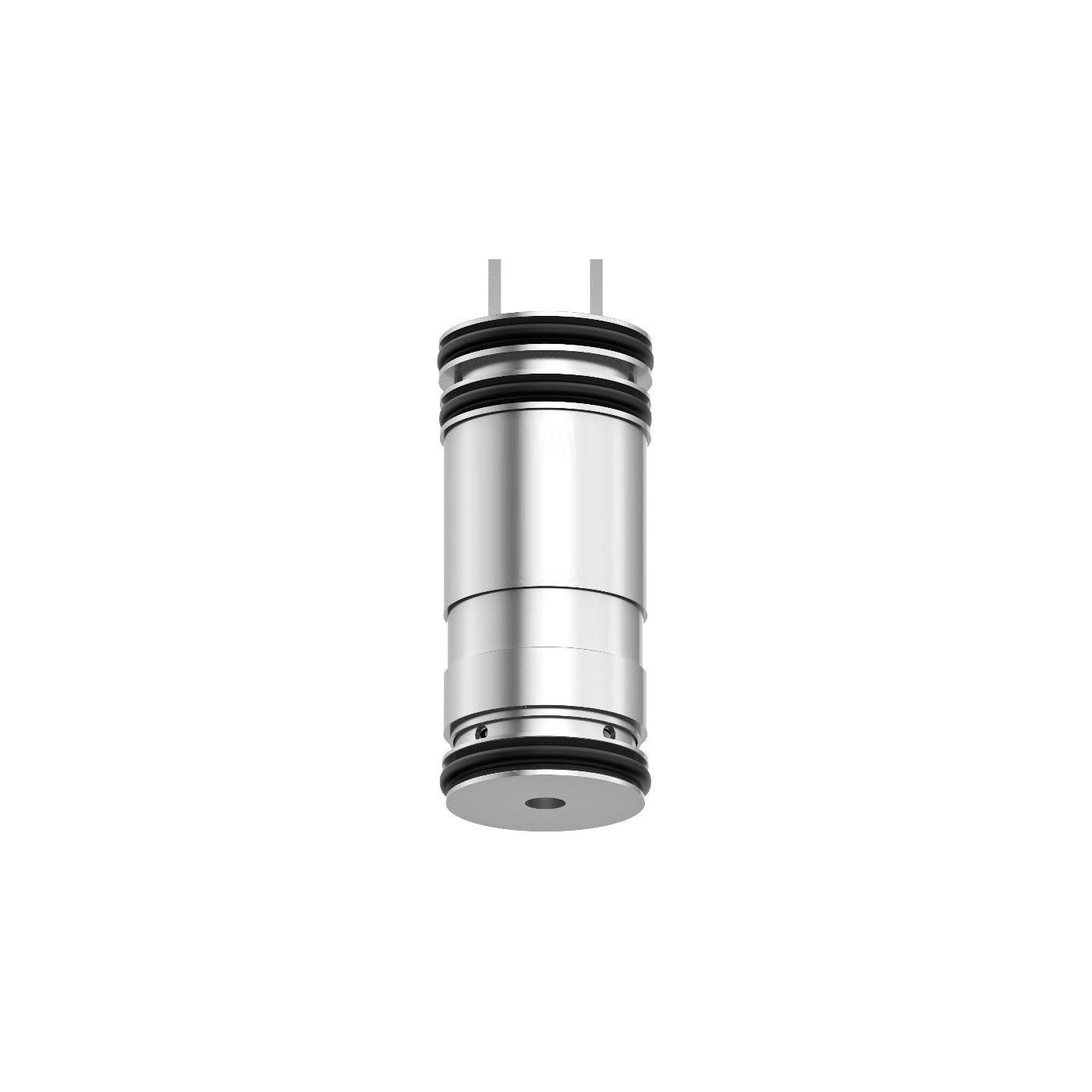

8mm 3/2-Way NC Micro Solenoid Valve – with FlexConnect
0.3 - 1.0mm Orifice diameter
Description
These compact 3/2-way NC micro solenoid valves with an 8 mm width are ideal for space-saving and flexible system solutions. They can be integrated directly into manifolds or used as a tube connection solution with FlexConnect – offering maximum adaptability across a wide range of applications.
The innovative flat spring valve design enables extremely fast switching times while ensuring a long service life. This makes the valves particularly suitable for precise control tasks in fields such as medical technology, laboratory automation, or industrial processes.
Whether used in modular systems or as standalone components – these micro valves deliver reliable performance in the smallest of spaces.
Specifications
Type
|
3/2-way, normally closed (NC)
|
Connections
|
Cartridge | FlexConnect
|
Size
|
8 mm
|
Voltage
|
12 VDC | 24 VDC
|
Orifice diameter
|
0.3 mm | 0.5 mm | 1.0 mm
|
Pressure range
|
0–10 bar (depending on orifice diameter)
|
Seal material
|
FKM
|
Max. ambient temperature
|
50 °C
|
Body material
|
Stainless steel (1.4305)
|
Internal components
|
Stainless steel (1.4310 / 1.4105)
|
Rated power
|
0.5 W
|
Operating mode
|
100% duty cycle
|
Mounting position
|
Any (preferably upright)
|
Weight
|
5 g
|

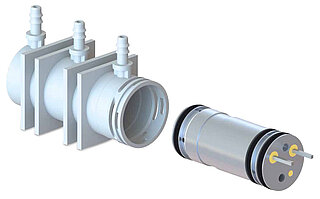

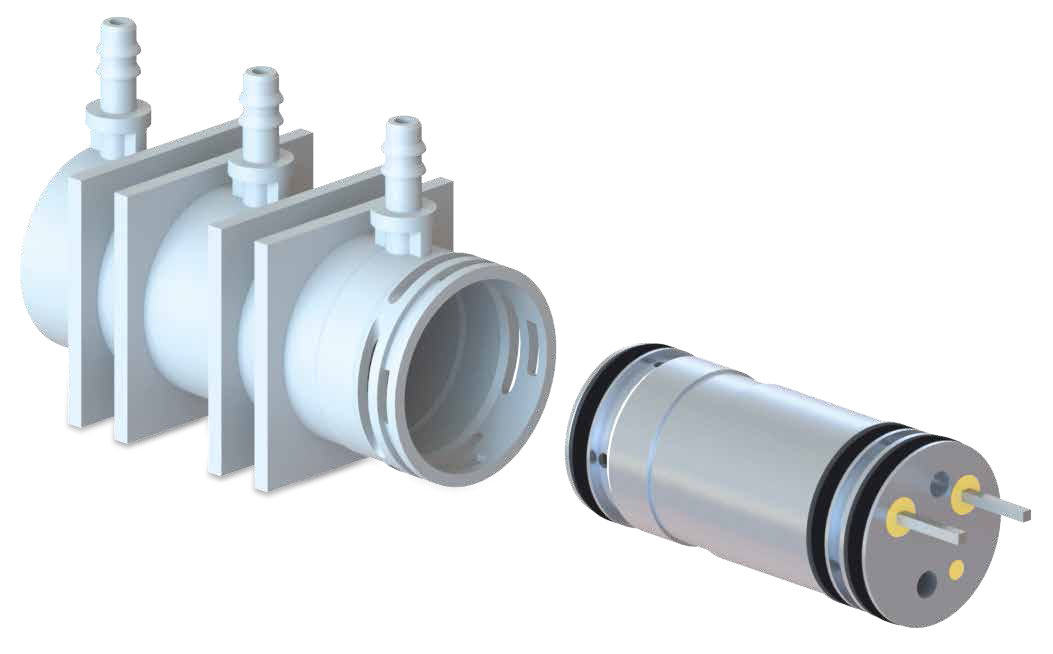

FlexConnect – Quickly connected, flexibly configurable

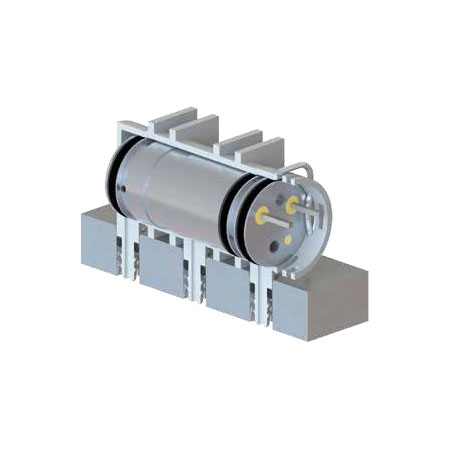

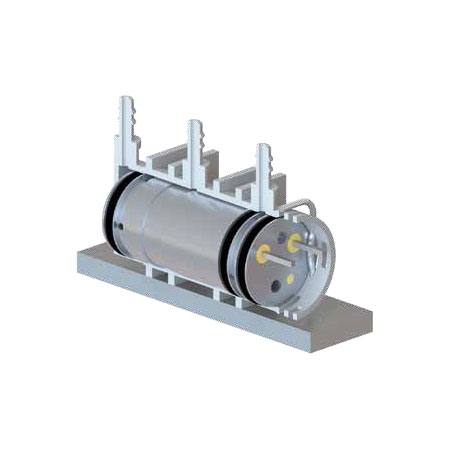

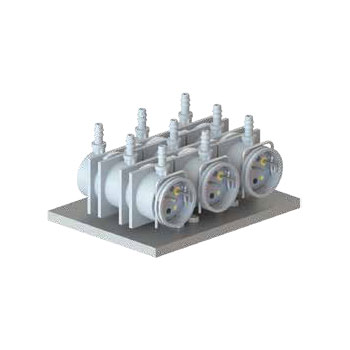

The FlexConnect adapter enables quick and straightforward connection of 8 mm valves. Thanks to integrated barb fittings, tubes can be easily attached – providing maximum flexibility during installation. Its versatile mounting options, including direct PCB installation, support efficient integration into existing systems.

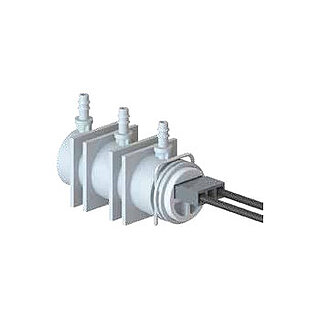

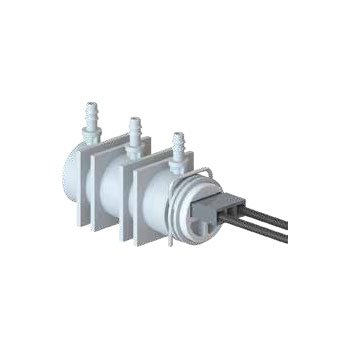

With FlexConnect, various valve configurations can be implemented: 3/2-way, 2/2-way NC, and 2/2-way NO, depending on application requirements. FlexConnect also offers full flexibility in electrical connection: pin, plug, PCB solder contact, or PCB plug contact.
This adapter sets new standards in valve technology and supports optimized assembly across a wide range of applications.
