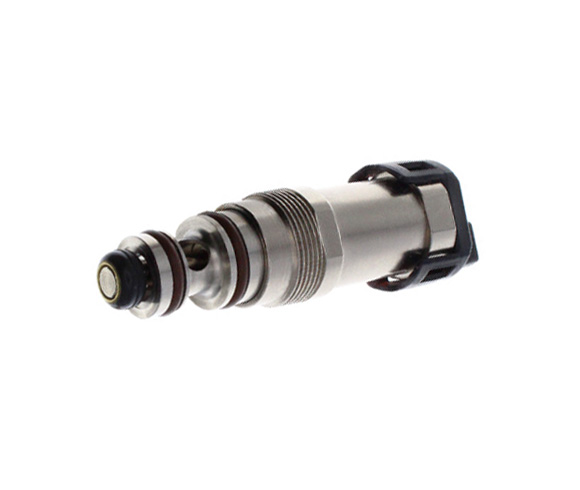

3-Port Cartridge Solenoid Valve - High Flow
Cornerstone Produkt
Description
Developed for demanding OEM applications, this valve series offers maximum flexibility, impressive durability, and optimal flow performance – ideal for modern pneumatic systems.
- Developed for tight installation spaces and flexible use as a 2/2‑way or 3/2‑way valve

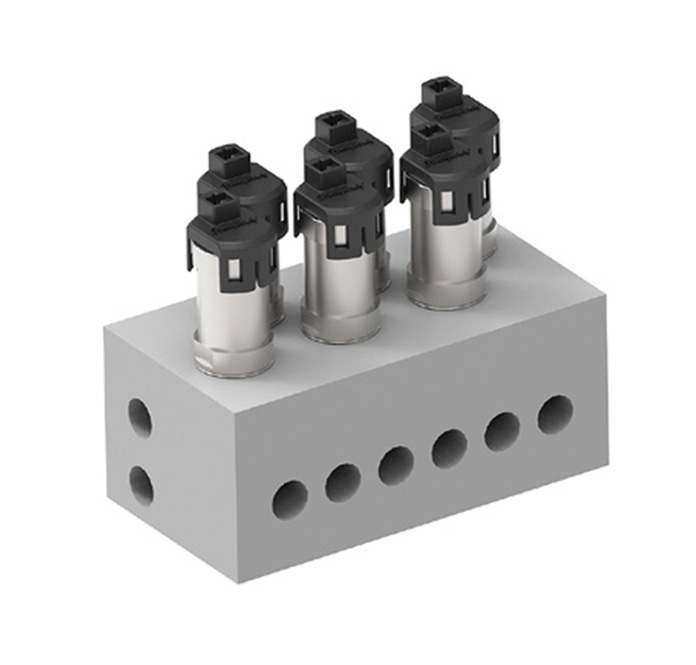

- Ideal for compact, custom valve manifolds
- Optimized flow path for low‑pressure pneumatic modules with high flow capability
- Long service life: expected 20 million switching cycles
- Flow rate: 57 LPM at approx. 1 bar
- Weight: 40 g
Specifications
Type
|
2/2-way NC | 2/2-way NO | 3/2-way
|
Connections
|
Cartridge
|
Size
|
approx. 15 mm
|
Voltage
|
12 VDC
|
Flow Rate
|
57 LPM @ approx. 1 bar (15 PSI)
|
Pressure Range
|
0–2 bar
|
Seal Material
|
FKM
|
Max. Ambient Temperature
|
52 °C
|
Wetted Materials
|
Stainless steel 303, nickel-plated brass, FKM
|
Power Consumption
|
4.0 W
|
Switching Time
|
approx. 10 ms (@ 2 bar / 30 PSI)
|
Duty Cycle
|
100% ED (continuous operation)
|
Mounting Orientation
|
Any (upright preferred)
|
Weight
|
40 g
|
Downloads
Datasheet Z5C022 736 KB
