PCRL Electronic pressure regulator - high flow

Optimized for high flow rates

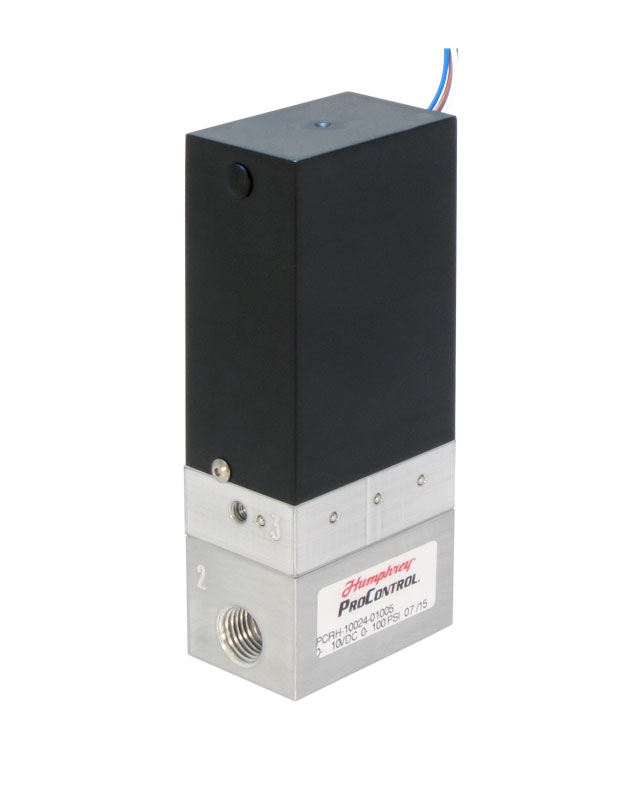

PCRH pressure regulator

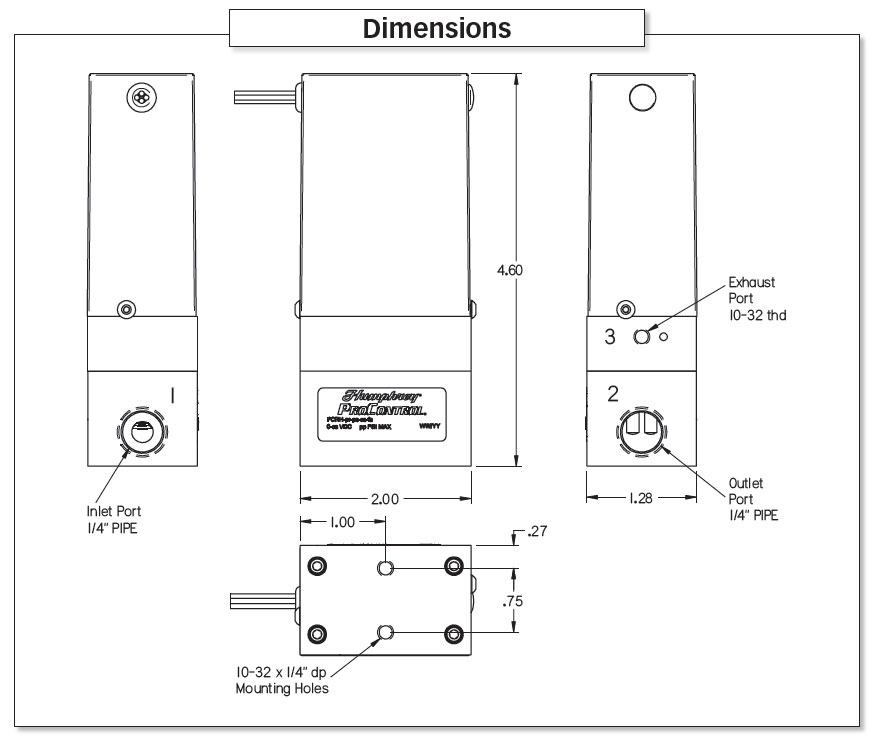

PCRH pressure regulator dimensions

Description

  • High accuracy and fast response time - due to proportional valve technology
  • Quiet operation - even at low pressures
  • Long service life - with several million cycles

Small flow version with Cv of 0.30.

Specifications

Media
air, inerte gases
Pressure ranges
0 - 3.4 bar | 0 - 6.8 bar
Ambient temperature
0 - 70°C
Related voltage
12 VDC | 24 VDC
Cv
0.30
Response time
1 sec.
Pressure accuracy (typical)
+/- 0,5% (full span)
Linearity (typical)
+/- 0,5% (full span)
Connections
1/4“ NPSF (Relief 10-32UNF)
Internal valve wetted materials
Cold-rolled stainless steel w/electroless,
nickel plating, brass, 304 and 403 stainless steel,
FKM seals, Nylon, Aluminum
Control signals
0 - 5V | 0 - 10V
Output signal
0 - 5V
Power supply
12 VDC | 24 VDC
Power consumption
max. 200 mA
Weight
approx. 363 g

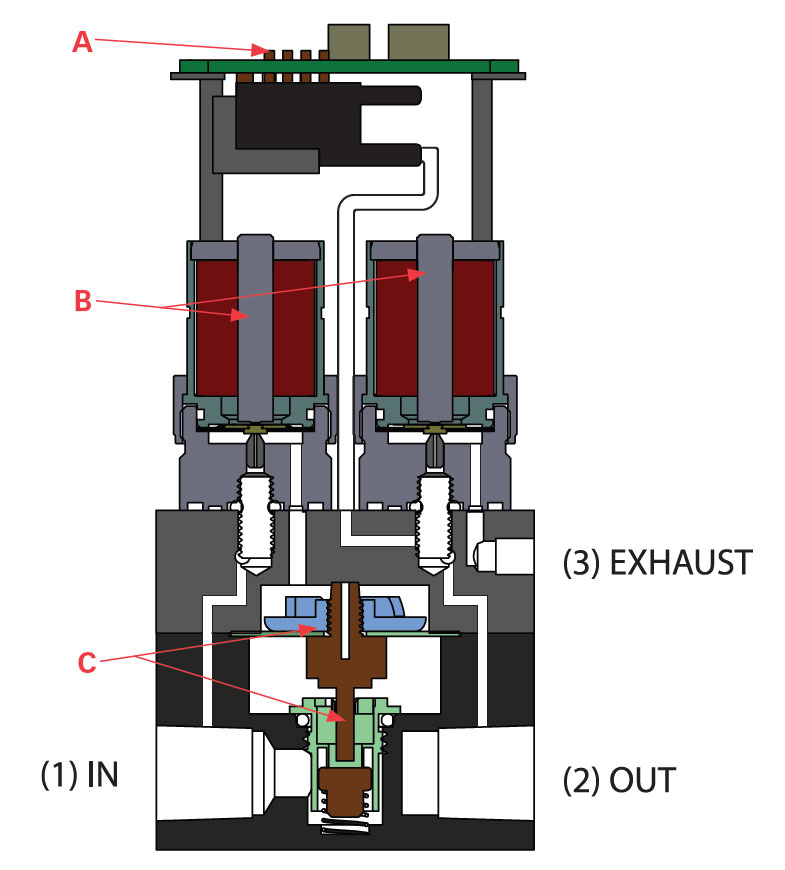

Structure of PCRH pressure regulator - high flow

Structure of PCRH pressure regulator - high flow

A:
Analog control circuitry compensates for dynamic changes in output pressure, offering fast, accurate, closed-loop pressure control characteristics.

B:
The incorporation of two proportional control valves offers fast and smooth pressure control, excellent resolution, as well as optimized response times when pressure venting, and reduced overall air (media) consumption.

C:
Utilizes a pilot operated configuration with an Internal Valve and Diaphragm. This offers high volume flow rates relative to size, while accurately controlling output pressure.

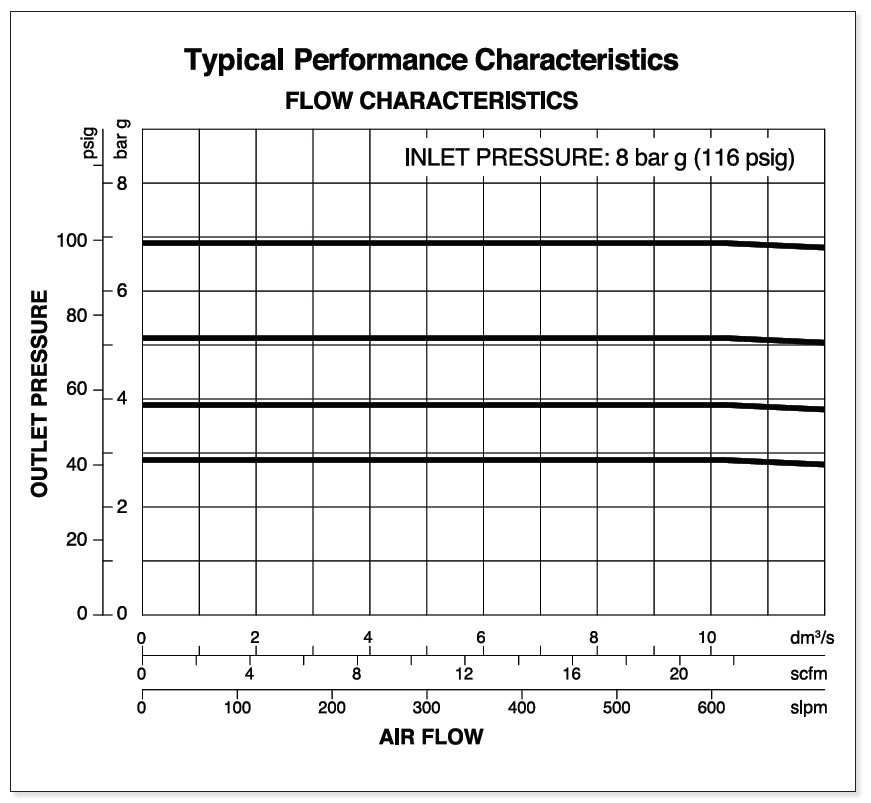

Typical flow characteristics

PCRH pressure regulator performance
