Shape Memory Alloy valve driver - for the SMV-valve series

SMA valve driver

Description

Driver to control the SMV valves - the miniature low cost valve solution with separation membrane.

Multiple valves can be controlled in series

Connection using the JST XHP-2 connector

Dimensions 12.00 x 43.50 mm

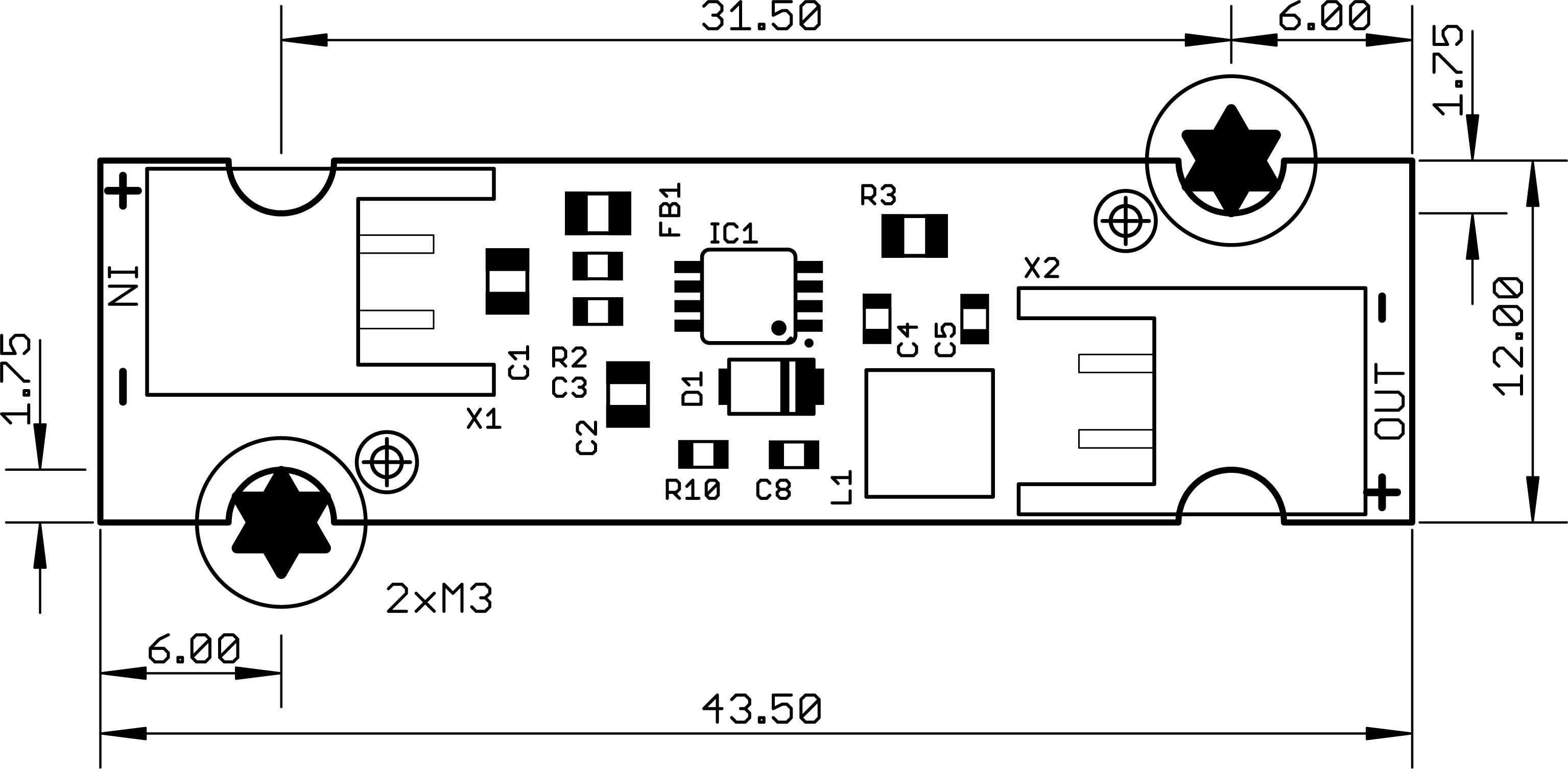

Dimensions

SMA valve driver dimensions

Specifications

Partno. 7100319311
Vin 12 - 24 V nominal
Iout 250mA (±10%) - Driver is current controlled
Vout nom. 0.6V @ 250 mA
Vout max. @ 12 Vin: 7.3 V
Vout max. @ 24 Vin: 12 V

Customer-specific solutions for the individual control of SMA valves are possible.
