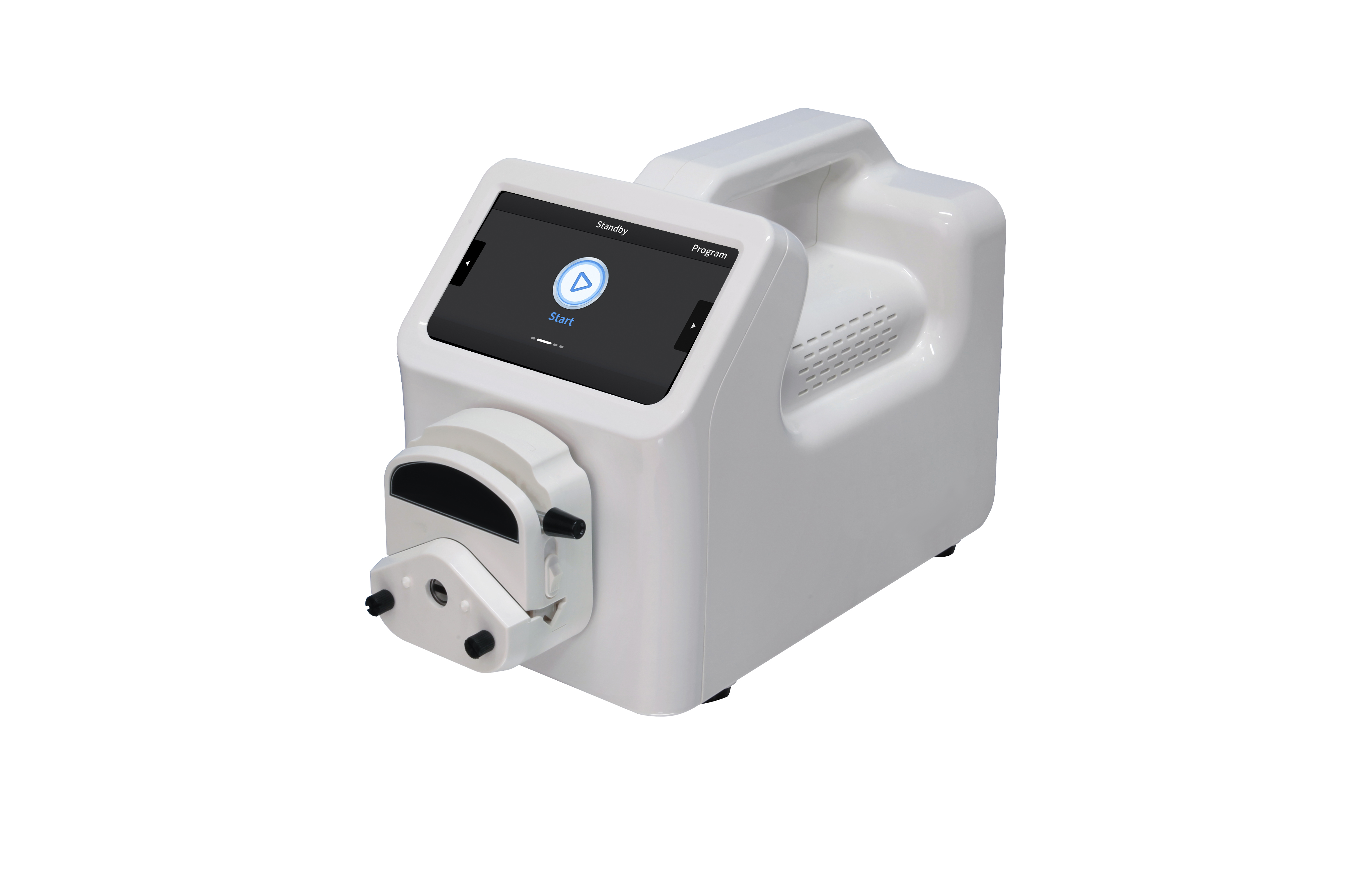

Precise laboratory peristaltic pump 0.15 µl/min - 3000 ml/min - many functions, large display
Flow rate: 0.15µl/min - 3000 ml/min
Description
The intelligent peristaltic pump was developed for demanding applications in laboratory environments and small‑batch production, combining high performance with intuitive, modern operation. The core of the control system is a 7‑inch touchscreen with a graphical user interface, enabling clear and convenient parameter setting.
The pump operates with adjustable speed ranges from 0.1–100 rpm, with optional operation up to 300 rpm or 600 rpm. The speed resolution is 0.1 rpm at speeds below 100 rpm and 1 rpm at speeds of 100 rpm and above, allowing flow rates to be set precisely and reproducibly. The supported flow range extends from 0.15 µL/min to 3000 mL/min.
For complex pumping and transfer tasks, multiple function modules and intelligent algorithms are available, providing flexible adaptation to a wide variety of applications.
The pump offers extensive control and communication options. It can be operated via touchscreen, footswitch, analog signals, or RS485 communication. For easy system integration, several interfaces are available, including USB, RJ11, and DB9.
The pump is compatible with a wide range of proven pump heads.

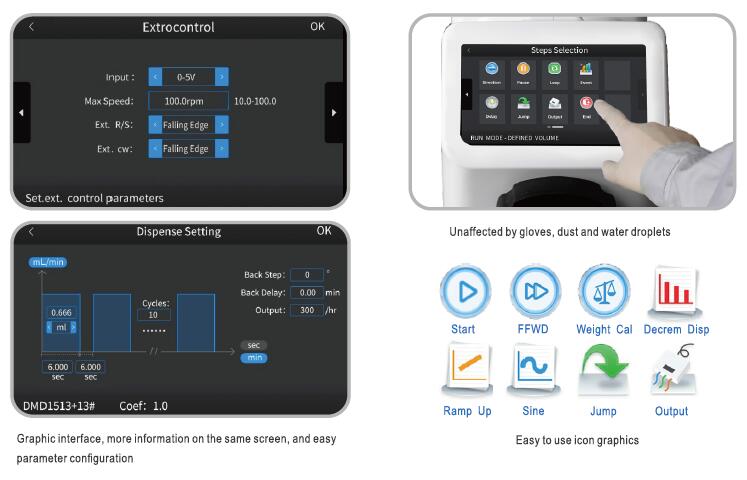

7 inch color display
7 inch color display, full touch screen and intuitive graphic interface, provide easy-to-use operations.
- 7 inch color display shows more information simultaneously
- Intuitive graphic interface and full touch screen quickly set up application process

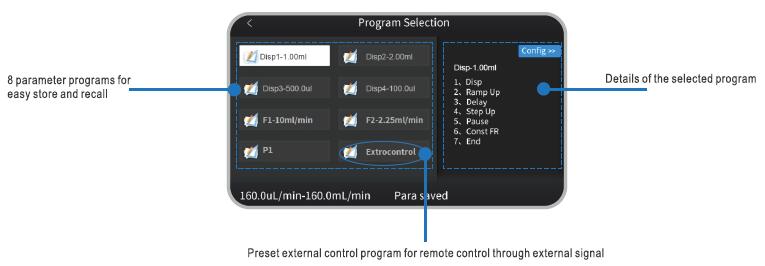

Pump parameters programmable
Customize parameters by programming, and the parameter programs can be stored and easily recalled.
- Parameters are defined by programming
- 7 parameter programs of up to 10 steps can be configured and stored
- Program name can be defined by letters and numbers for identification and easy recall
- Preset external control program is for remote control through external signal
Function modules and intelligent algorithms
Multiple function modules and intelligent algorithms are designed for a wide variety of applications, including routine and multi-step complex applications

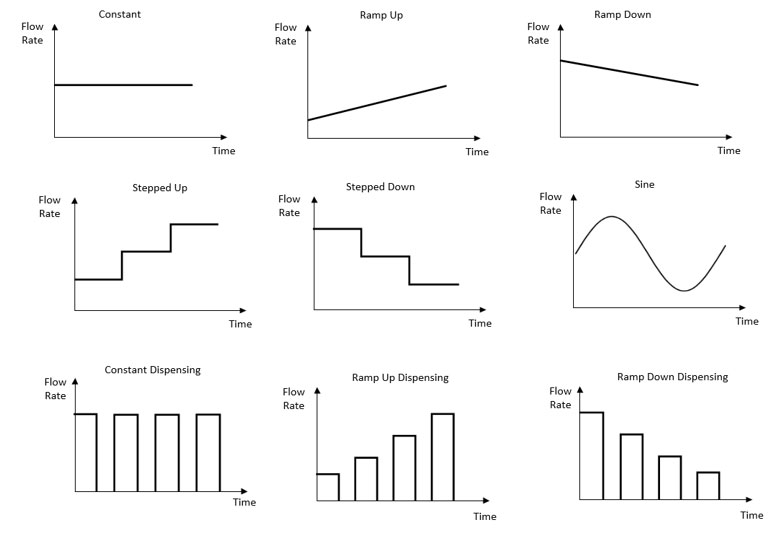

- 9 running control modules: constant, ramp up, ramp down, stepped up, stepped down, sine, constant dispensing, ramp up dispensing. ramp down dispensing

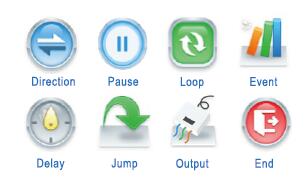

- 8 logic control modules: direction, delay, event trigger，status output, pause, jump, loop, stop
- Each running control module can be used independently for simple routine application

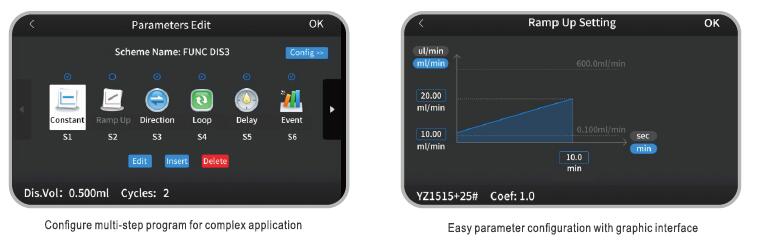

- Configure multi-step program with multiple modules for complex application

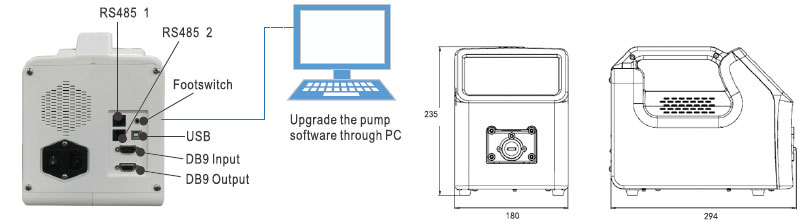

Pump control
Pump can be controlled through touch screen,foot switch,analog signal and communication, combined with a variety of interfaces (USB,RJ11,DB9 etc.) for easy system connection.
Pump heads
Tubing
Pump head
|
Number
|
Inner-diameter
|
Wall-thickness
|
max. Flow rate
|
Weight
|
|---|---|---|---|---|---|

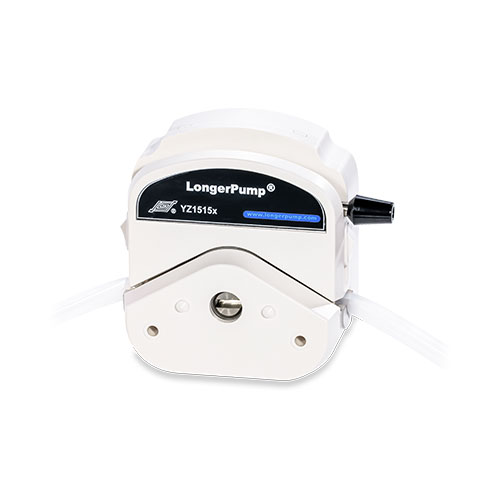

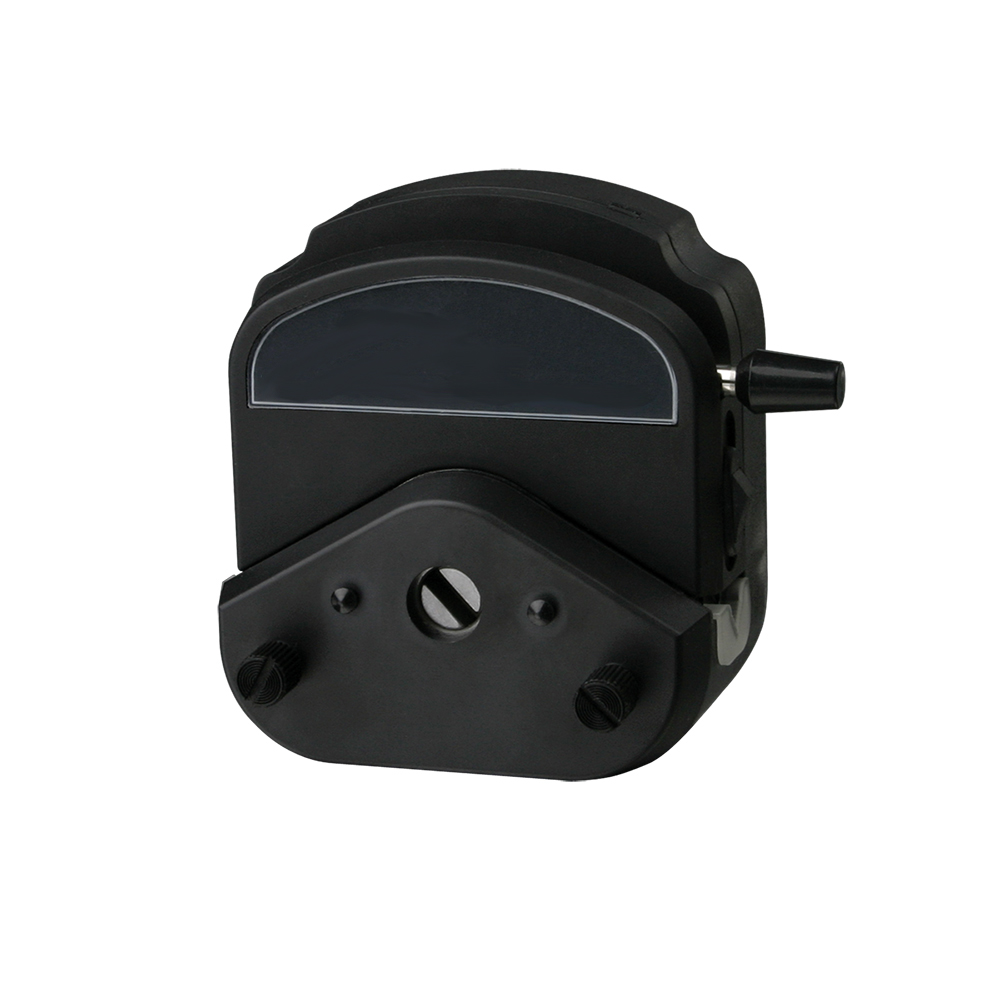

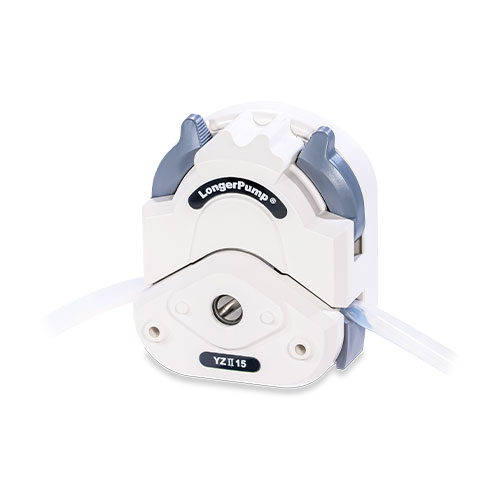

YZ1515x. YZII15
|
13#. 14#. 19#. 16#. 25#. 17#. 18#
|
0.8 - 7.9 mm
|
1.6. 1.7 mm
|
380 ml/min
|
ca. 5.4 kg
|
YZ2515x
|
15#. 24#
|
4.8. 6.4 mm
|
2.4 mm
|
266 ml/min
|
ca. 5.4 kg
|
YZII25
|
15#. 24#. 35#. 36#
|
4.8 - 9.6 mm
|
2.4 mm
|
500 ml/min
|
ca. 5.4 kg
|

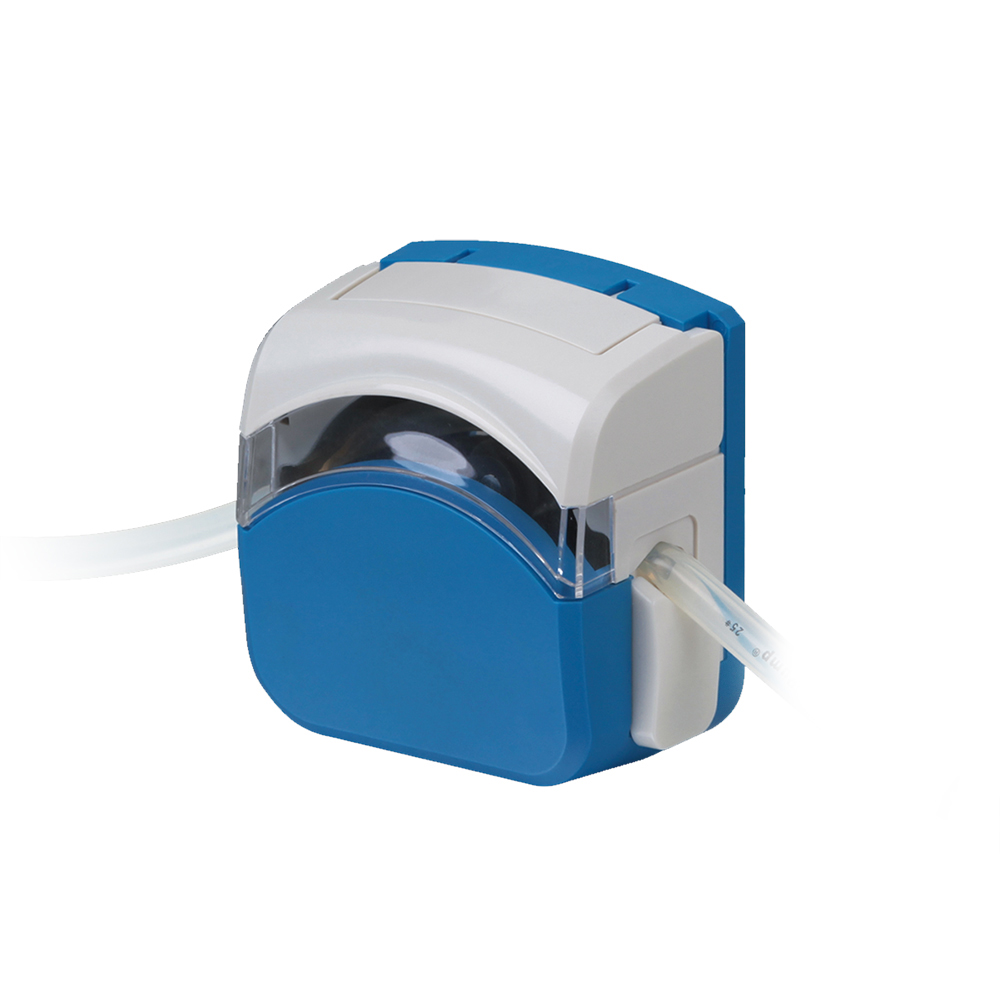

FG15-13
|
13#. 14#. 19#. 16#. 25#. 17#. 18#
|
0.8 - 7.9 mm
|
1.6, 1.7 mm
|
430 ml/min
|
ca. 5.3 kg
|
FG25-13
|
15#. 24#
|
4.8. 6.4 mm
|
2.4 mm
|
270 ml/min
|
ca. 5.3 kg
|

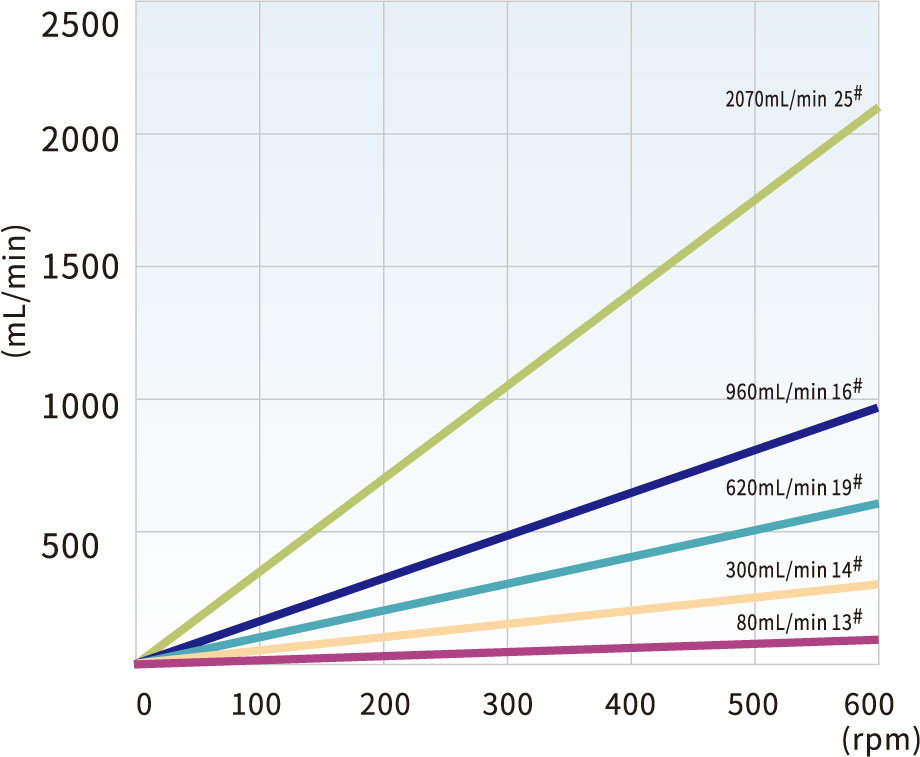

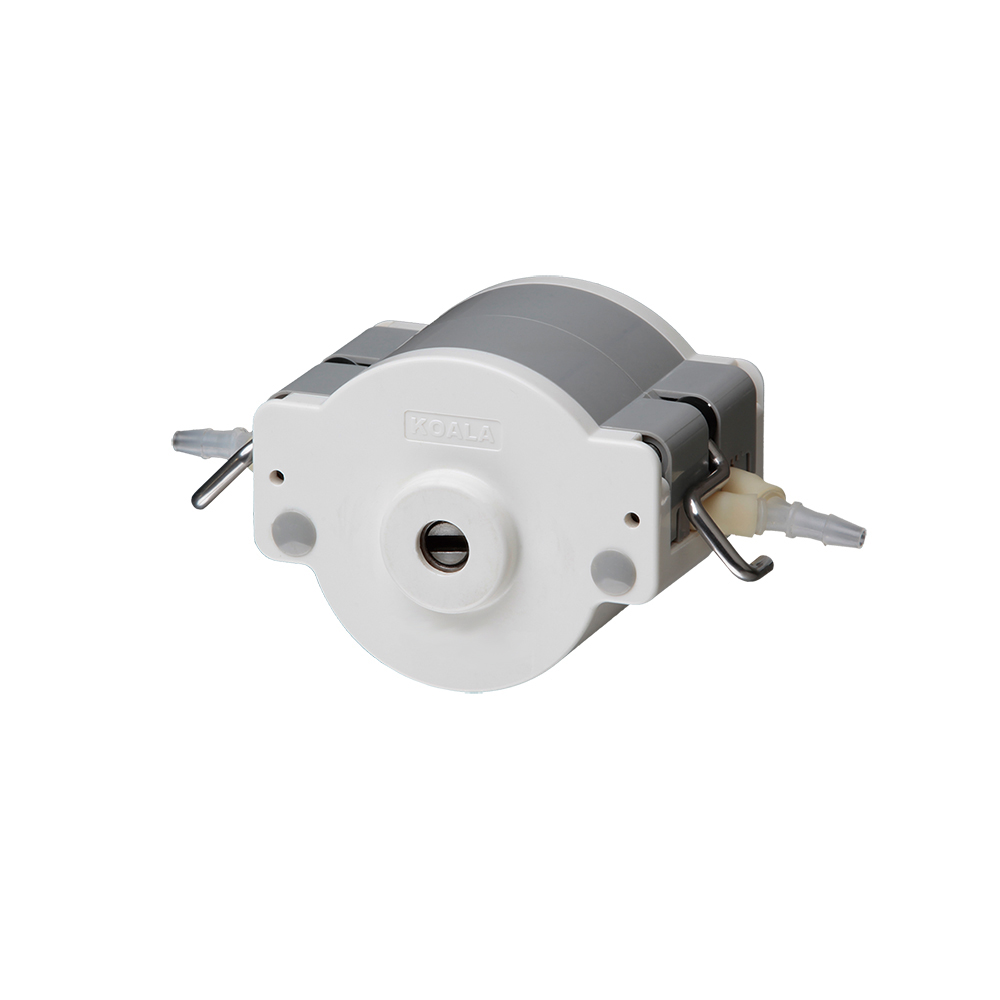

DMD15-13-B
|
2*13#. 2*14#. 2*19#. 2*16#. 2*25#
|
0.8 - 4.8 mm
|
1.6, 1.7 mm
|
375 ml/min
|
ca. 5.4 kg
|

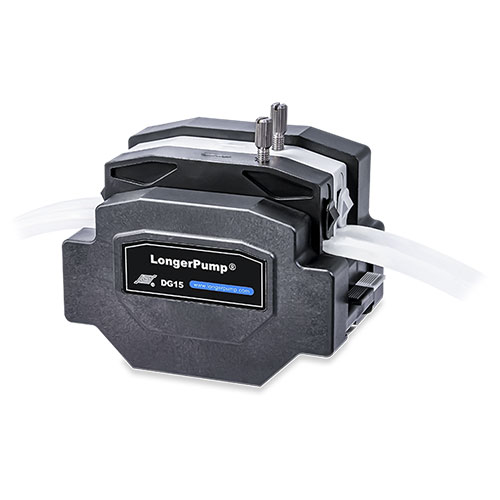

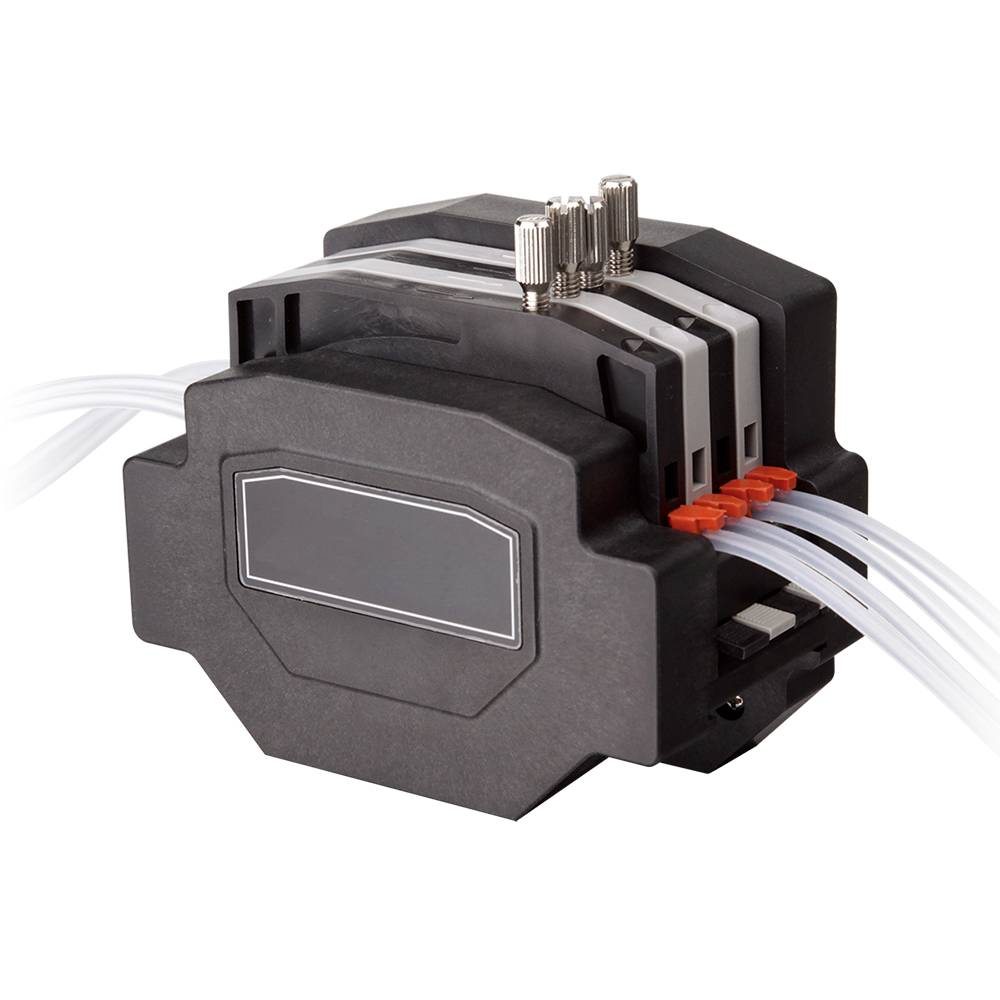

DG15-24
|
16#. 25#. 17#
|
3.2 - 6.4 mm
|
1.6 mm
|
300 ml/min
|
ca. 5.8 kg
|

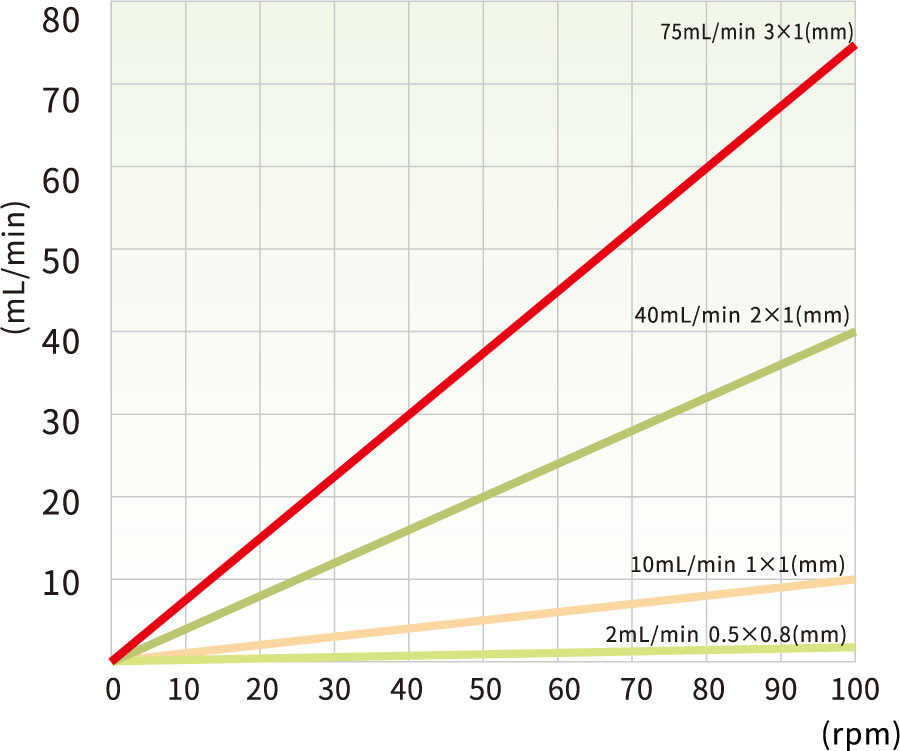

DG15-28
|
13#. 14#
|
0.8 - 1.6 mm ≤3.17mm |
1.7 mm 0.8 - 1.0 mm |
75 ml/min
|
ca. 5.7 kg
|

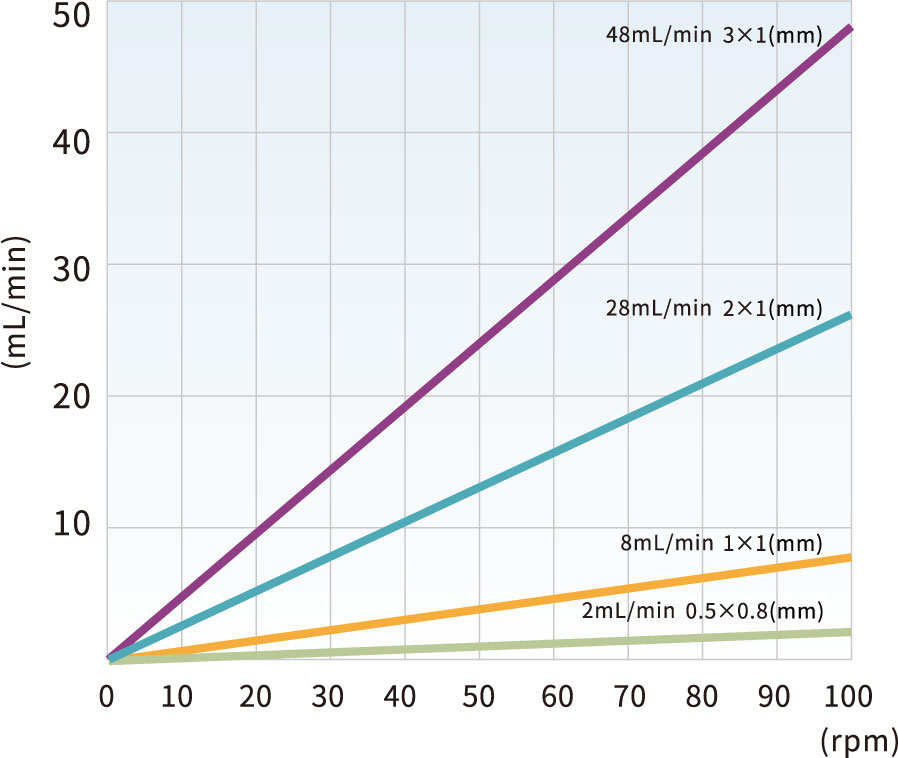

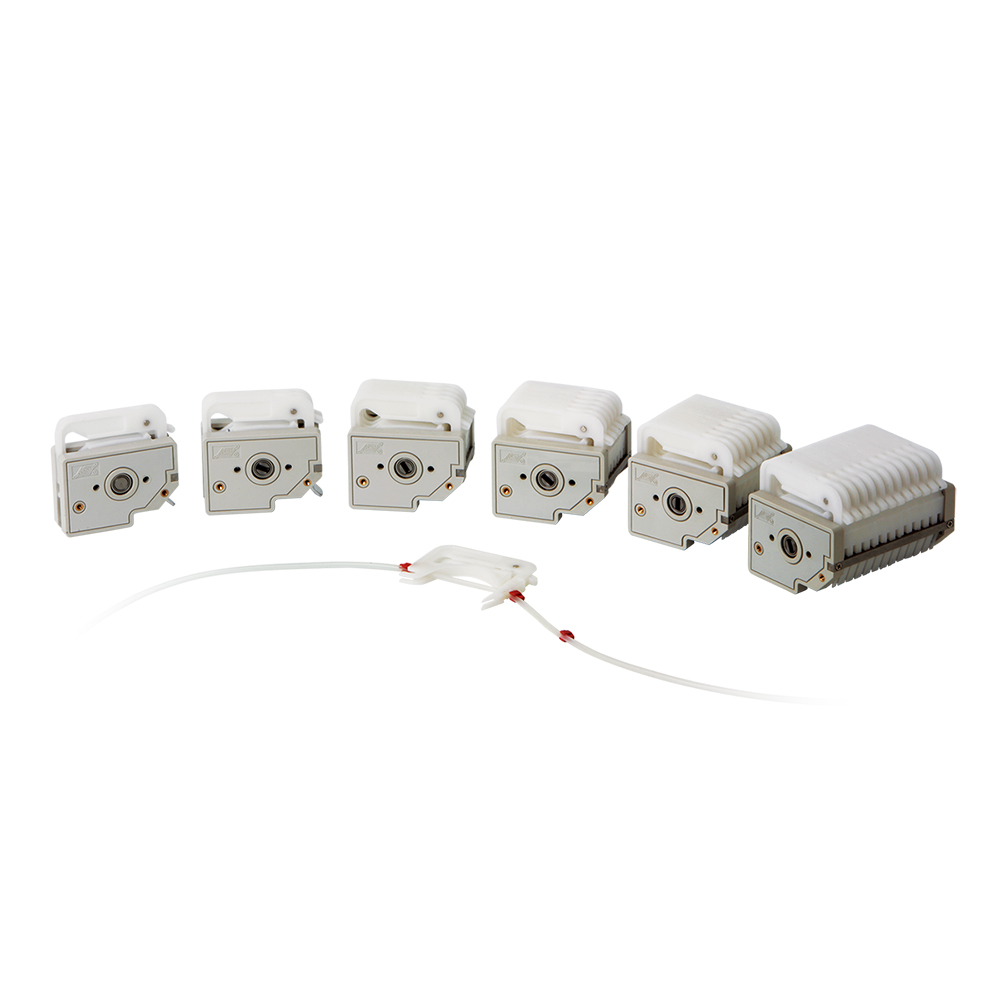

DG-(1, 2, 4, 6, 8) - 6 Rollen
|
≤3.17mm
|
0.8 - 1.0 mm
|
48 ml/min
|
ca. 5.2 - 5.6 kg
| |

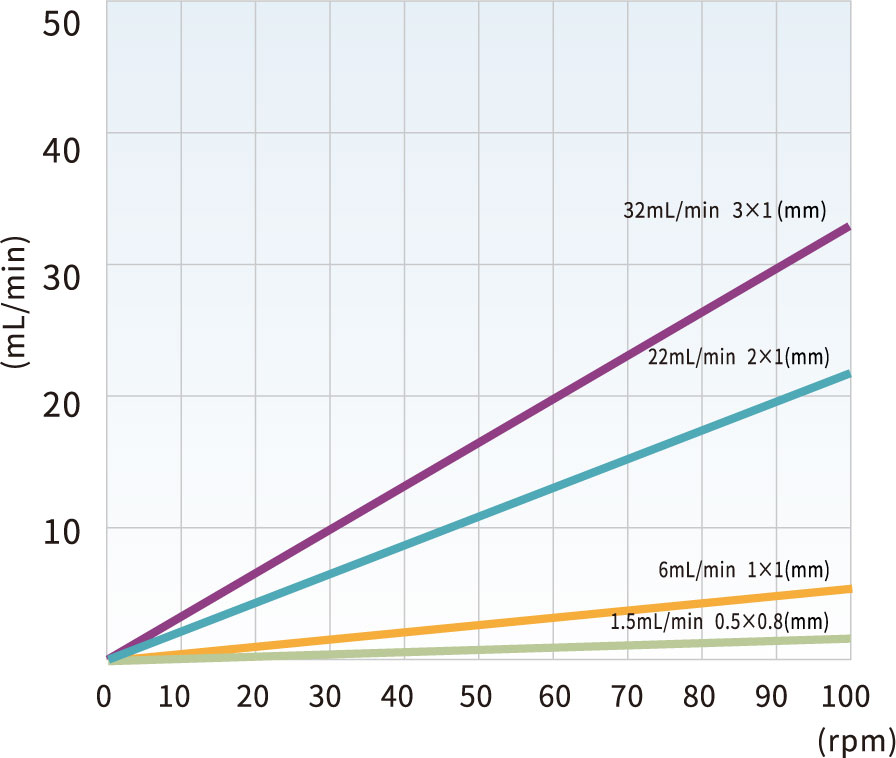

DG-(1, 2, 4) - 10 Rollen
|
≤3.17mm
|
0.8 - 1.0 mm
|
32 ml/min
|
ca. 5.2 - 5.6 kg
|

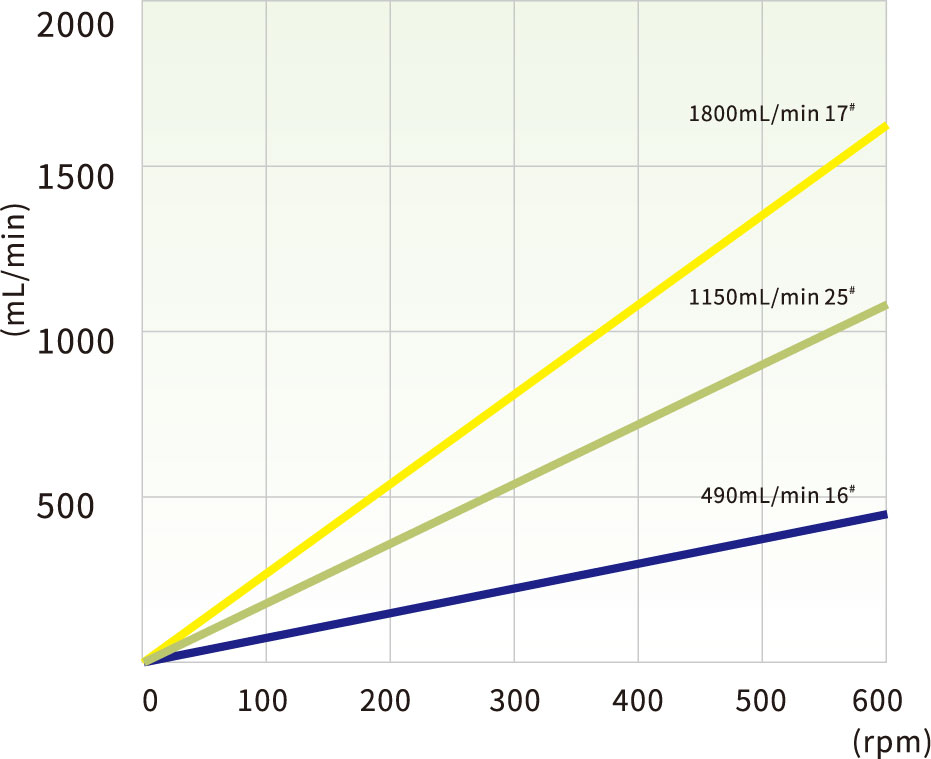

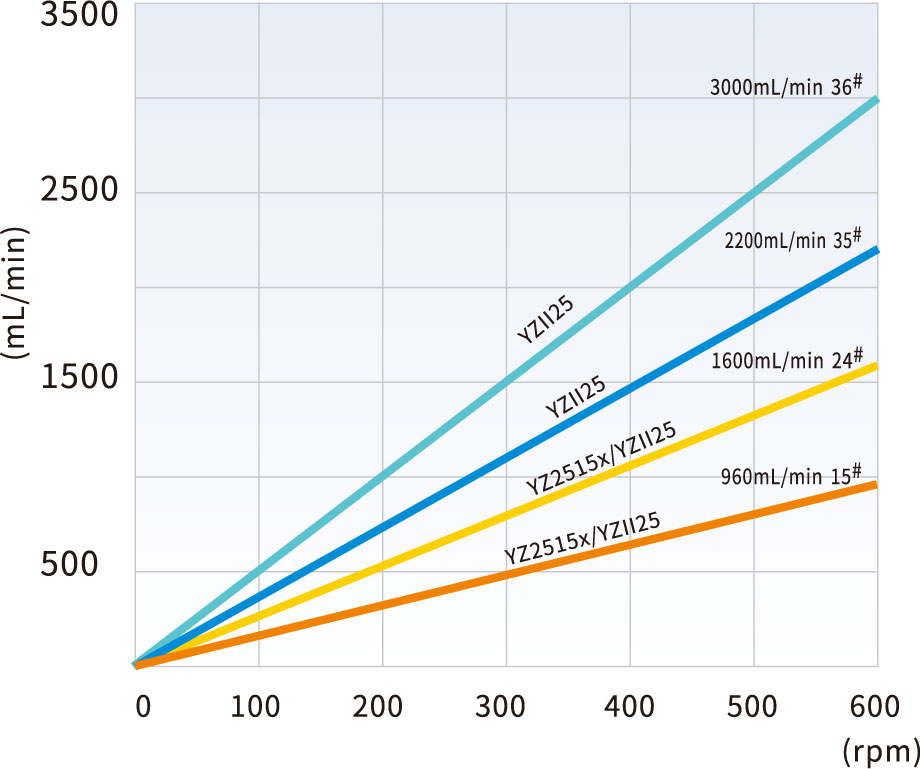

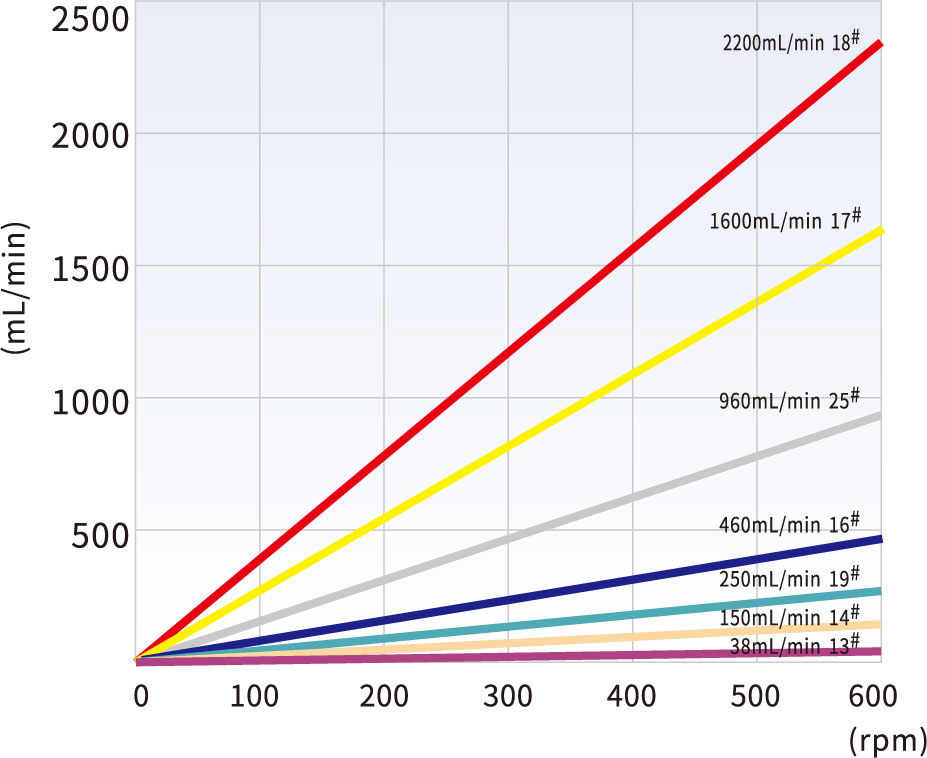

Flow rates
Specifications pump system
Flow volume
|
0.15µl/min - 3000ml/min
|
Dispensing volume setting range
|
0.001uL-9999L
|
Calibration
|
Improve the flow rate and dispensing volume accuracy. (accuracy of ±2% with calibration)
|
Interval time setting range
|
0.5s-9000s
|
Dispensing cycle setting range
|
1-99999(0 for unlimited)
|
Dispensing time setting range
|
0.5s-9000s (0s for continuous transfer without time limit)
|
Delay time setting range
|
0.5s-9000s
|
Display
|
7Inch 1024*600 color LCD
|
Language
|
English
|
Control mode
|
Touch screen control, footswitch control, external signal control and communication control
|
Work mode
|
Programming
|
Programming function
|
Running control module
|
Logic contol module
|
direction, delay, event trigger, status output, pause, jump, loop, stop
|
Configure
|
multi-step program with multiple modules for complex application
|
External control
|
Start/stop control, direction control
|
Speed control
|
0-5V, 0-10V, 4-20mA or 0-10kHz with uniform interface, max speed can be set.
|
Communication control
|
USB or RS485(RJ11) interface, Modbus protocol, multiple baud rate (1200/ 2400/ 4800/ 9600/ 19200/ 38400bps)
|
Status output
|
Output voltage level signals to indicate pump running status, direction status, and other custom status.
|
Parameter programs
|
7 parameter programs can be stored and easily recalled
|
Delayed start
|
Pump can start running at desired time
|
Back suction
|
Antidrip through setting back suction angle and delay time for high dispensing accuracy
|
Prime
|
Fast filling and emptying at full speed
|
EMC
|
Comply with EMC Directive 2014/30/EU
|
Dimension (L*W*H)
|
294mm×180mm×235(mm)
|
Power supply
|
AC196V-242V, 50/60Hz
|
Operating temperature
|
0°C-40°C
|
Relative humidity
|
<80%
|
IP rating
|
IP31
|
Weight
|
5 - 6kg
|
