Description
The General Dispensing Pumps of the GD series provide a flexible solution for precise dosing, continuous fluid transfer, and reproducible filling processes in laboratory, research, pharmaceutical, and industrial applications. The product range includes both the multi‑channel systems of the GD‑1B series as well as the GD200‑1C, which expands the portfolio with a compact version supporting up to four pump heads.
- Three color‑coded operating modes: continuous, time‑based, and volume‑based
- Closed‑loop flow control for constant and stable delivery performance
- Touchscreen combined with physical buttons for easy and reliable operation
- Voice control for contactless use
- GD200‑1C supports up to three channels
- User management and log functions for documentation and traceability
- Low‑noise operation for a comfortable working environment
- DG-Pump head with up to 24 channels
Color‑coded operating modes for maximum clarity
All models in the GD series feature a clear, easy‑to‑read display with three distinctly color‑coded operating modes:
- Continuous mode (blue) for uniform, continuous flow
- Time mode (purple) for time‑based, repeatable dosing
- Volume mode / dispensing mode (yellow) for precise, volume‑based filling
The visual color coding simplifies operation, improves clarity, and reduces the risk of operating errors.

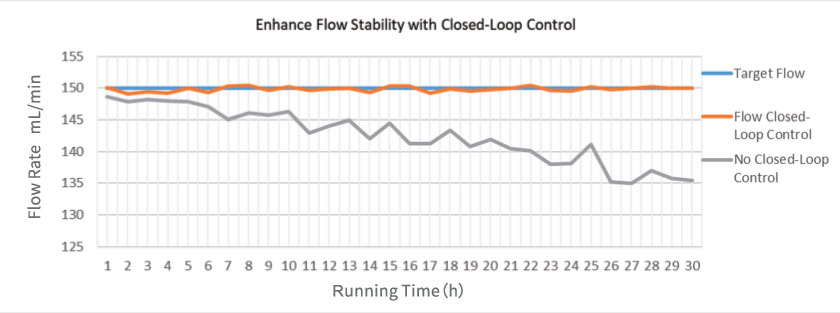

Optional closed‑loop flow control with flow meter
With the optionally available flow meter, the GD series can be expanded to include closed‑loop flow control. In this mode, the actual volumetric flow rate is continuously measured and automatically compared with the setpoint. Deviations—for example caused by tubing aging, changes in the medium, or pressure fluctuations—are corrected in real time.
This enables exceptionally stable and consistent flow delivery, particularly for long‑term and continuous applications. Closed‑loop control is therefore ideal for processes where constant flow, high reproducibility, and minimal deviation are critical—such as in continuous reactors, automated filling lines, or long‑duration experimental runs.
Benefits of the optional flow meter at a glance:
- Automatic flow calibration in continuous mode
- Constant delivery performance over long operating periods
- Compensation for tubing, media, and process variations
- Increased process stability and reproducibility
- Ideal for long‑term reactions and continuous applications
Intuitive operation, voice control, and secure access
The combination of a touchscreen and physical control buttons ensures simple, reliable, and ergonomic operation—even during continuous use or when wearing gloves. In addition, the GD series supports voice control, enabling contactless operation and offering particular advantages in hygienically sensitive environments. A three‑level user management system with exportable log records further supports traceability, quality assurance, and audit requirements.

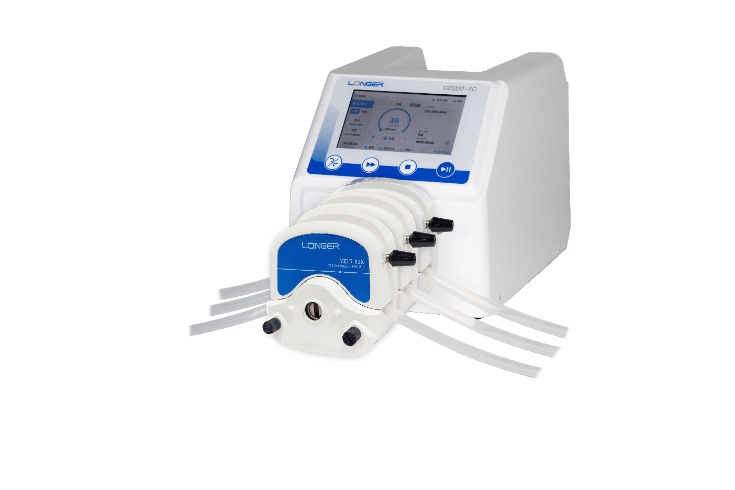

GD200‑1C – multi‑channel solution with up to four pump heads
The GD200‑1C expands the GD series with a compact dispensing pump that supports up to four pump heads. It is particularly well suited for applications requiring multi‑channel dosing, space‑saving integration, and a high level of process reliability. Despite its compact design, it offers the same intelligent features as the other models, including color‑coded operating modes, closed‑loop control, voice control, and log functions.
Product Table – GD Series
Feature
|

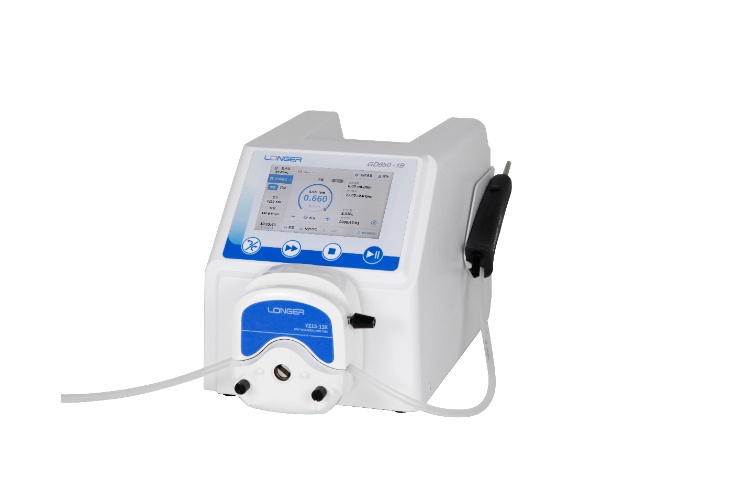

GD Series (GD200‑1B · GD400‑1B · GD650‑1B · GD200‑1C)
|
Pump type
|
General Dispensing Pump
|
Channels
|
Single‑channel (GD200‑1B / GD400‑1B / GD650‑1B) Up to 3 channels (GD200‑1C) |
Speed range
|
0.01–200 rpm (GD200‑1B / GD200‑1C) 0.01–400 rpm (GD400‑1B) 0.01–650 rpm (GD650‑1B) |
Dispensing volume
|
0.001 – 9,999 (units: µL, mL, L)
|
Dispensing count
|
0 – 999,999 (0 = unlimited)
|
Interval time
|
0.1 s – 9,999 h
|
Running time
|
0.1 s – 9,999 h
|
Speed resolution
|
0.01 rpm (<100 rpm), 0.1 rpm (≥100 rpm)
|
Speed accuracy
|
± 0.1 %
|
Operating modes
|
Continuous · Time · Volume (color‑coded)
|
Display
|
5″ color LCD
|
Operation
|
Touchscreen + physical buttons
|
Flow direction
|
Clockwise and counterclockwise
|
Calibration functions
|
Flow calibration, volume calibration, auto‑calibration with flow meter (optional)
|
Voice control
|
Start / Stop / Pause / Direction change / Full speed
|
Control modes
|
Touch + buttons · foot switch / handheld dispenser · external signals · communication protocol
|
Closed‑loop control
|
Optional with flow meter
|
Recipes
|
Up to 100 storable parameters
|
User management
|
Three‑level (administrator / developer / operator)
|
Log recording
|
Up to 4,000 entries, exportable
|
Scheduled start
|
Countdown and start at preset time
|
Key & screen lock
|
Enableable
|
Noise level
|
≤ 50 dB(A) (GD200‑1B) ≤ 55 dB(A) (GD400‑1B / GD650‑1B / GD200‑1C) |
IP rating
|
IP32
|
Dimensions (L×W×H)
|
305 × 190 × 201 mm
|
Weight (drive)
|
approx. 3.5 kg (GD200‑1B / GD400‑1B / GD650‑1B) approx. 5.5 kg (GD200‑1C) |
Power supply
|
AC 100–240 V, 50/60 Hz
|
Power consumption
|
30 W (GD200‑1B) / 50 W (GD400‑1B) / 60 W (GD200‑1C) / 70 W (GD650‑1B)
|
Pump Heads - DG-Series
Pump head
|
Tubing
|
Max. flow rate (mL/min) (single-channel operation) |
(1, 2, 3, 4) × YZ1515X (3-roller)
|
13# · 14# · 19# · 16# · 25# · 17# · 18#
|
730 @ 200 rpm1460 @ 400 rpm2350 @ 650 rpm
|
(1, 2, 3, 4) × YZ1515X (6-roller)
|
13# · 14# · 19# · 16# · 25# · 17# · 18#
|
320 @ 200 rpm640 @ 400 rpm960 @ 600 rpm
|
(1, 2, 3, 4) × YZ2515X
|
15# · 24#
|
530 @ 200 rpm1060 @ 400 rpm1730 @ 650 rpm
|
(1, 2, 3, 4) × YZ15-13X (YZ II 15)
|
13# · 14# · 19# · 16# · 25# · 17# · 18#
|
730 @ 200 rpm1460 @ 400 rpm2350 @ 650 rpm
|
(1, 2) × YZ25-13X (YZ II 25)
|
15# · 24# · 35# · 36#
|
1000 @ 200 rpm2000 @ 400 rpm3250 @ 650 rpm
|
(1, 2) × DMD15-13
|
13# · 14# · 19# · 16# · 25#
|
690 @ 200 rpm1380 @ 400 rpm2240 @ 650 rpm
|
FG15-13
|
13# · 14# · 19# · 16# · 25# · 17# · 18#
|
800 @ 200 rpm1600 @ 400 rpm2600 @ 650 rpm
|
FG25-13
|
15# · 24#
|
730 @ 200 rpm1460 @ 400 rpm2380 @ 650 rpm
|
KZ25-13 (GD200-1C)
|
15# · 24# · 35# · 36#
|
2000 @ 200 rpm
|
PFH01
|
ID 0.5–3.2 mm · wall thickness 1.6 mm
|
90 @ 200 rpm159 @ 350 rpm
|
PFH02
|
ID 0.6–4.8 mm · wall thickness 2.4 mm
|
523 @ 200 rpm930 @ 400 rpm1046 @ 450 rpm
|
DG-1/2/4/6/8/12/16/24 (6-roller)
|
ID ≤ 3.17 mm · wall thickness 0.8–1.0 mm
|
48 @ 100 rpm
|
DG-1/2/4/6/8/12/16/24 (10-roller)
|
ID ≤ 3.17 mm · wall thickness 0.8–1.0 mm
|
32 @ 100 rpm
|
DG15-24
|
16# · 25# · 17#
|
600 @ 200 rpm1200 @ 400 rpm1950 @ 450 rpm
|
DG15-28
|
ID ≤ 3.17 mm · wall thickness 0.8–1.0 mm · 13# · 14#
|
75 @ 100 rpm
|
DG15-48
|
ID ≤ 3.17 mm · wall thickness 0.8–1.0 mm · 13# · 14#
|
75 @ 100 rpm
|
