L310 latching poppet valve with 3 ports

For low power consumption and heating

[Translate to Englisch:] L310 bistabil

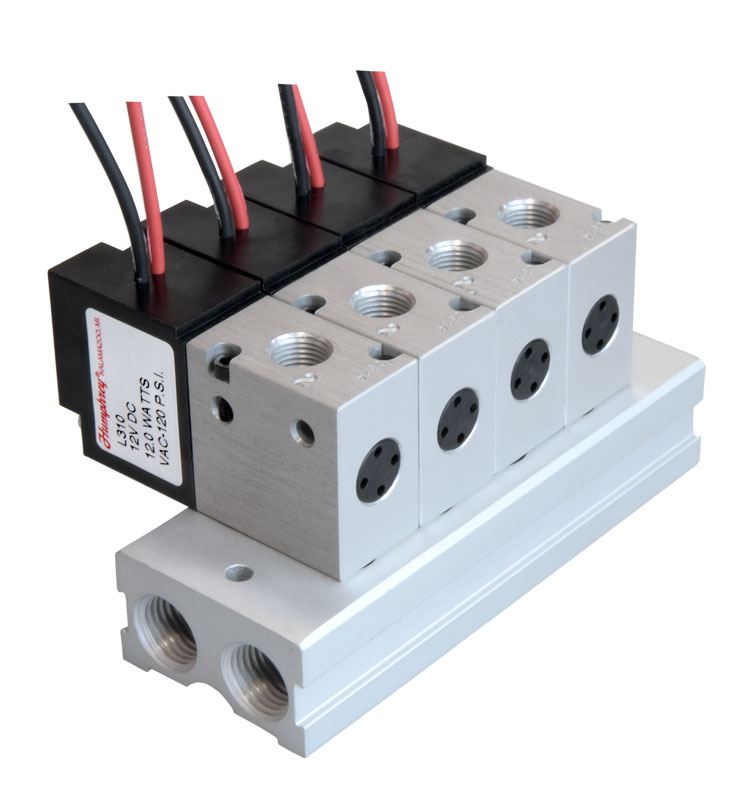

[Translate to Englisch:] L310 bistabil Manifold

Description

Use in energy-efficient applications.

A 50ms switching signal changes the valve position. No additional energy is required to hold the position.

The heat generated by a permanently energized solenoid is almost completely eliminated.

Can be used as 3/2-way and 2/2-way and for pressures of up to 8.6 bar on all connections. These pressure-balanced seat valves can be used in a variety of ways.

Specifications

Type 2/2-way latching | 3/2-way latching
Port connections 1/8" NPT
Media air, inert gases
Flow rates 0,24 Cv
Max. pressure range -950 mbar - 8,6 bar (each connection)
Rated voltage 12 VDC | 24 VDC (+/- 10 %)
Max. ambient temperature 0 - 50 °C
Seal material Buna
Wetted materials Brass, Aluminium, Steinless steel, Acetal
Max. leakage 4 ccm
Power conumption 12 W (at switching)
Min. pulse 50 ms
Operating duration 100% 10% ED
Weight 114 g
