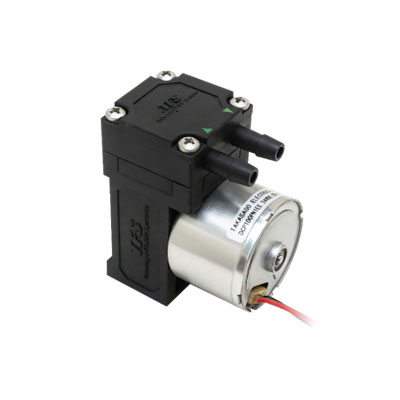

DCP-100 Diaphragm Pumps
up to 100 mL/min – brushless motor
Description
The DCP‑100 Series comprises compact diaphragm pumps with a standard flow rate of 100 mL/min and a pressure range from −300 to +1000 mbar. They are suited for applications where reliable pressure and vacuum performance is required within a minimal installation space.
A high‑performance brushless motor ensures long service life, maintenance‑free operation, and low noise levels. All wetted components are made of non‑metallic materials, providing high chemical resistance and broad media compatibility.
Specifications
Type
|
DCP-100P-N1EE
|
DCP-100P-N1TG
|
|---|---|---|
Flow rate (max.)
|
100 mL/min
|
100 mL/min
|
Pressure (max.)
|
1000 mbar
|
1000 mbar
|
Vacuum (max.)
|
-300 mbar
|
-300 mbar
|
Drive
|
12VDC / 24 VDC
|
12VDC / 24 VDC
|
Media temperature
|
0–80 °C
|
0–80 °C
|
Ambient temperature
|
0–40 °C
|
0–40 °C
|
Power consumption
|
6 W
|
6 W
|
Connection
|
Hose barbs
|
Hose barbs
|
Wetted materials
|
PP / EPDM
|
PP / PTFE / FFKM
|
Dimensions
|
24.4 × 42.7 × 38.3 mm
|
24.4 × 42.7 × 38.3 mm
|
Weight
|
approx. 50 g
|
approx. 50 g
|

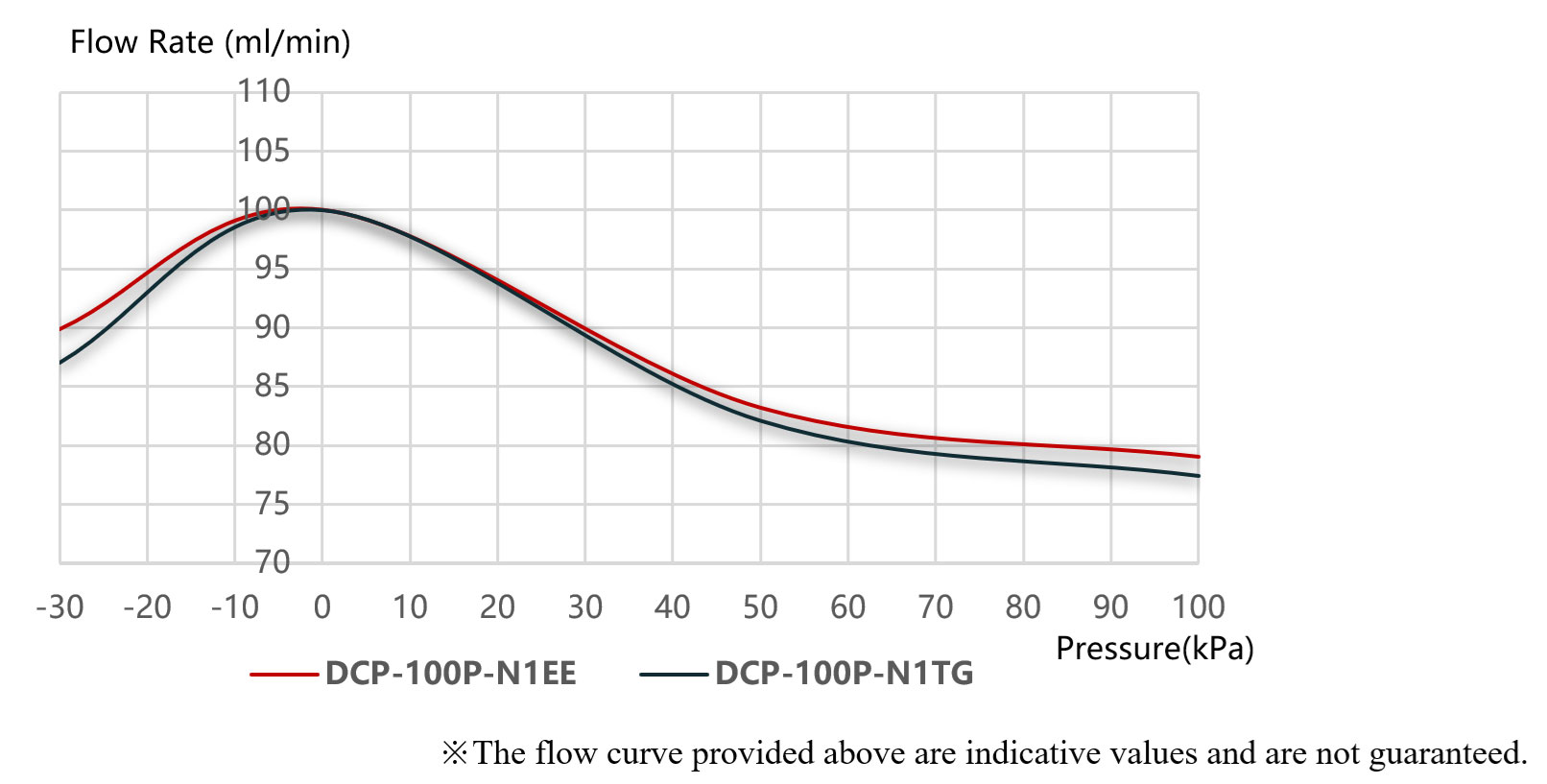

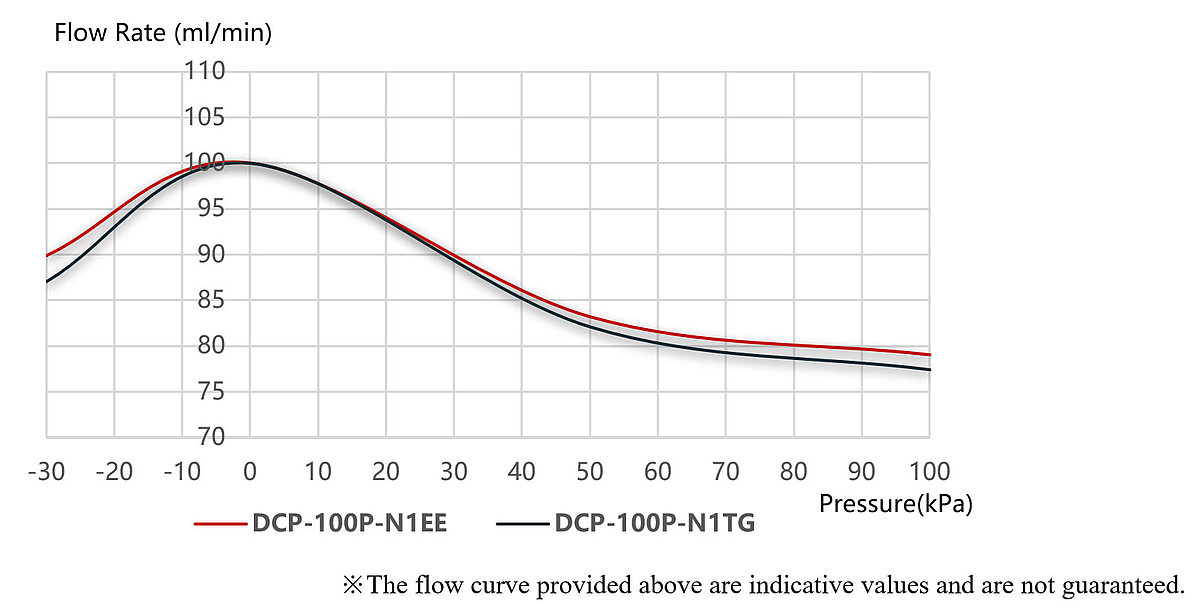

DCP-100 diaphragm pump performance curve

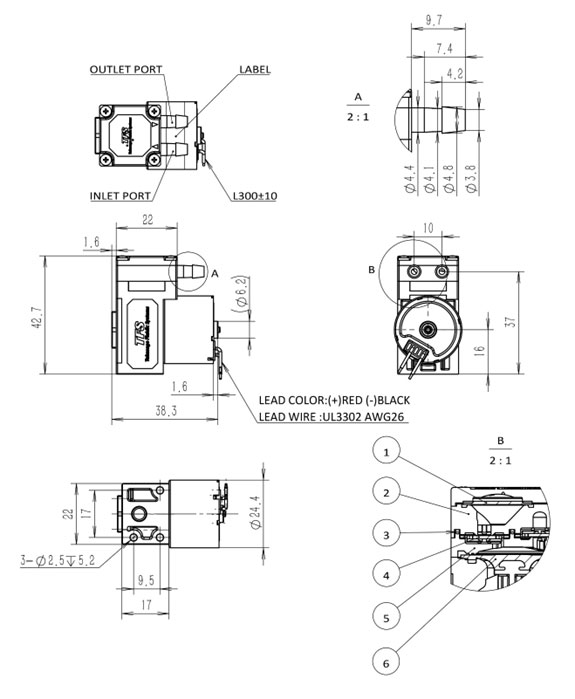

Dimensions
