Panel Mount Sliding Latch Quick Couplings - Technical Data

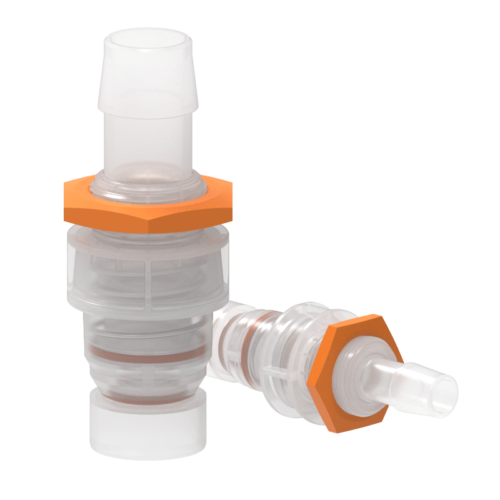

Panel Mount Sliding Latch Quick Couplings

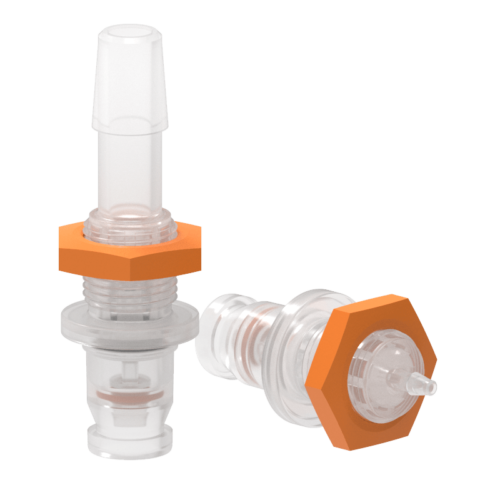

Panel Mount Sliding Latch Quick Couplings Micro-V

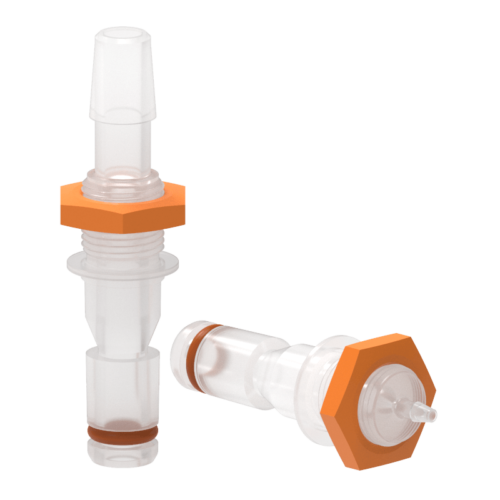

Panel Mount Sliding Latch Quick Couplings Micro-O
Panel Mount Sliding Latch Quick Couplings
Panel Mount Sliding Latch Quick Couplings Micro-V
Panel Mount Sliding Latch Quick Couplings Micro-O

Description

Series: Micro-O, Micro-V, Small, Medium, Large

Spring not in fluid path on Small, Medium, and Large series

Connections:

  • 1/16″
  • 1/8″
  • 3/16″
  • 1/4″
  • 5/16″
  • 3/8″
  • 1/2″
  • 5/8″
  • 3/4″

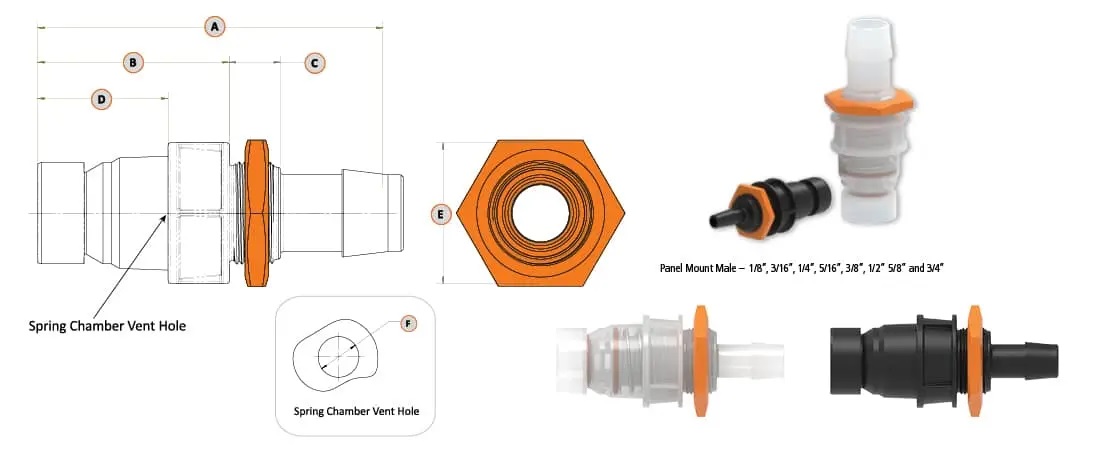

Dimensions (mm) Series Small, Medium, Large

Panel Mount Sliding Latch Quick Couplings Dimensions
Series
Connection
A
B
C
D
E
F
Small (1)
1/8"
51.82
28.96
12.7
24.64
22.1
17.53
Small (2)
3/16″
56.9
28.96
12.7
24.64
22.1
17.53
Medium (1)
1/4″
68.07
36.83
12.7
26.67
25.4
17.53
Medium (2)
5/16"
69.34
36.83
12.7
26.67
25.4
17.53
Medium (3)
3/8″
70.61
36.83
12.7
26.67
25.4
17.53
Large (1)
1/2″
85.85
47.5
12.7
32.26
34.8
25.4
Large (2)
5/8"
88.39
47.5
12.7
32.26
34.8
25.4
Large (3)
3/4″
90.93
47.5
12.7
32.26
34.8
25.4

Weight (g) Series Small, Medium, Large

Series
Connection
with Valves

without Valves


PP
PVDF
GFBN
PP
PVDF
GFBN
Small (1)
1/8″
6
8
7
4
7
6
Small (2)
3/16″
6
8
7
4
7
6
Medium (1)
1/4″
9
13
12
6
12
11
Medium (2)
5/16″
9
13
12
6
12
11
Medium (3)
3/8″
10
14
13
6
12
11
Large (1)
1/2″
20
24
22
14
20
16
Large (2)
5/8″
20
24
22
14
20
16
Large (3)
3/4″
21
25
23
15
21
14
