Barbed Sliding Latch Quick Couplings - Technical Data

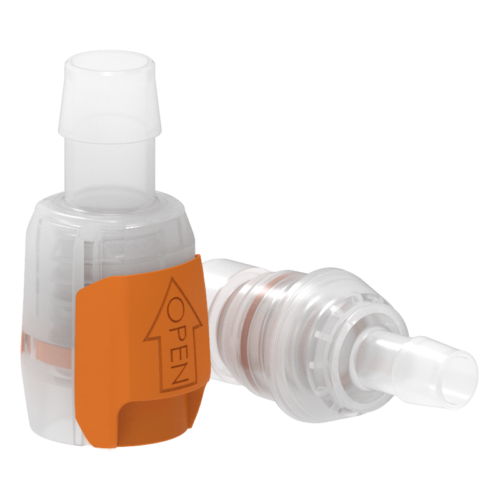

Barbed Sliding Latch Quick Couplings

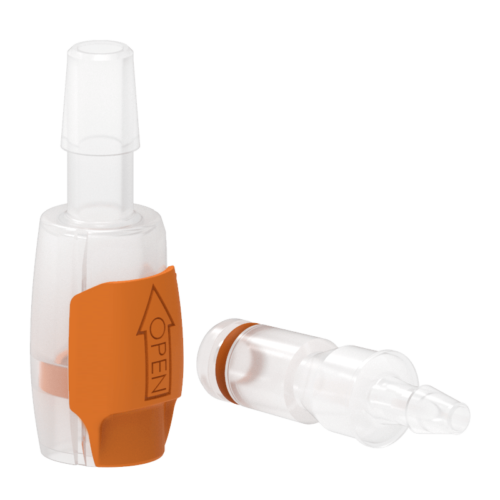

Barbed Sliding Latch Quick Couplings Micro-O

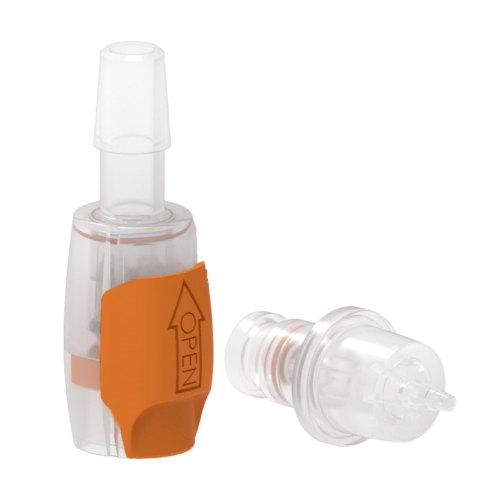

Barbed Sliding Latch Quick Couplings Micro-V
Barbed Sliding Latch Quick Couplings
Barbed Sliding Latch Quick Couplings Micro-O
Barbed Sliding Latch Quick Couplings Micro-V

Description

Series: Micro-O, Micro-V, Small, Medium, Large, X-Large

Spring not in fluid path on Small, Medium, Large, and X-Large series

Barb sizes:

  • 1/16″
  • 1/8″
  • 3/16″
  • 1/4″
  • 5/16″
  • 3/8″
  • 1/2″
  • 5/8″
  • 3/4″
  • 1″

Dimensions (mm) Micro-O

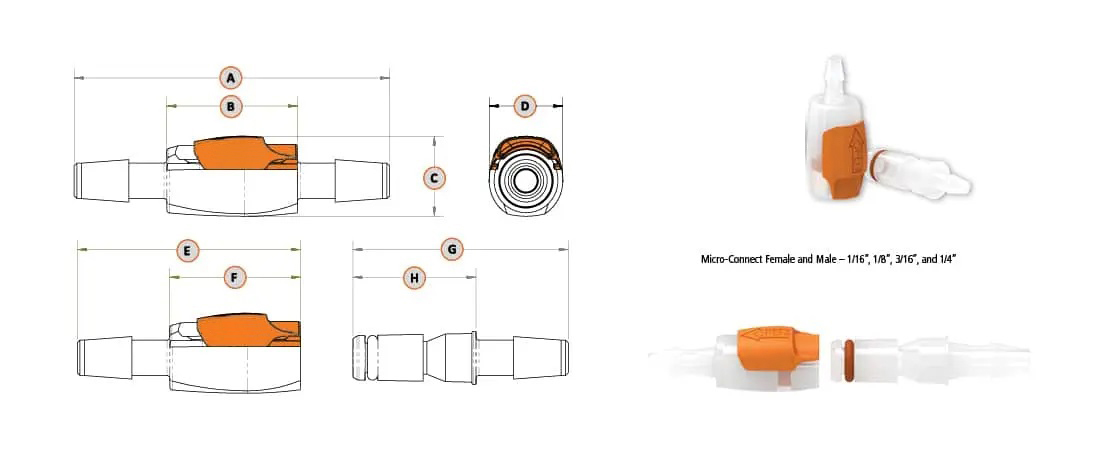

Sliding Latch Quick Couplings Dimensions Micro-O
Series
Dimensions
A
B
C
D
E
F
G
H
Micro-O (1)
1/16″
33.78
23.37
14.48
13.21
28.45
23.37
27.18
22.1
Micro-O (2)
1/8″
43.94
23.37
14.48
13.21
33.53
23.37
32.26
22.1
Micro-O (3)
3/16″
54.1
23.37
14.48
13.21
38.61
23.37
37.34
22.1
Micro-O (4)
1/4″
56.64
23.37
14.48
13.21
39.88
23.37
38.61
22.1

Weight versions without valves (g) Micro-O

Series
Barb size
Female

Male


PP
PVDF
PP
PVDF
Micro-O (1)
1/16″
1.5
2.9
0.8
1.6
Micro-O (2)
1/8″
1.6
3.1
0.8
1.7
Micro-O (3)
3/16″
1.8
3.5
1
2
Micro-O (4)
1/4″
1.8
3.5
1
2

Dimensions (mm) Micro-V

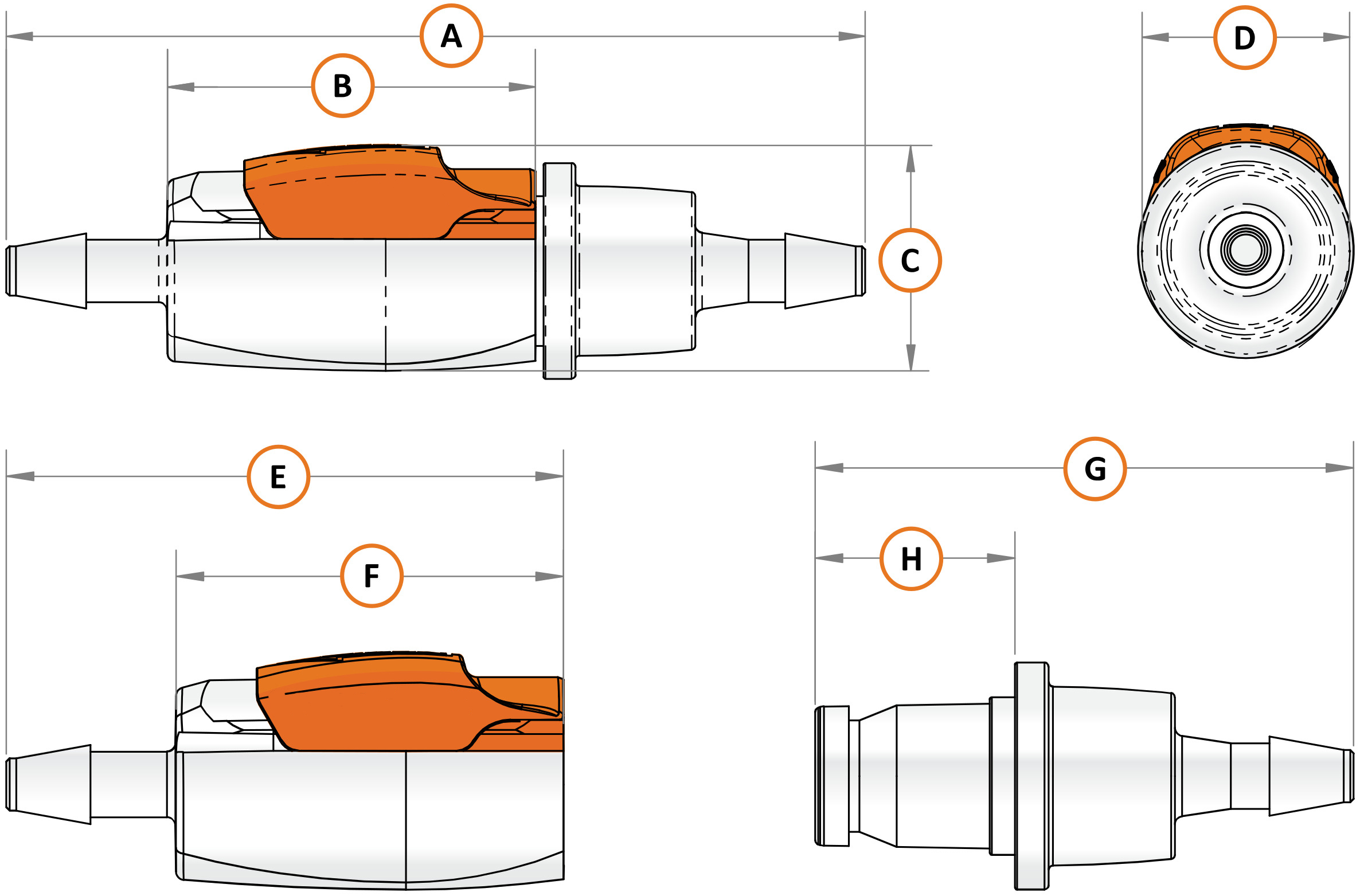

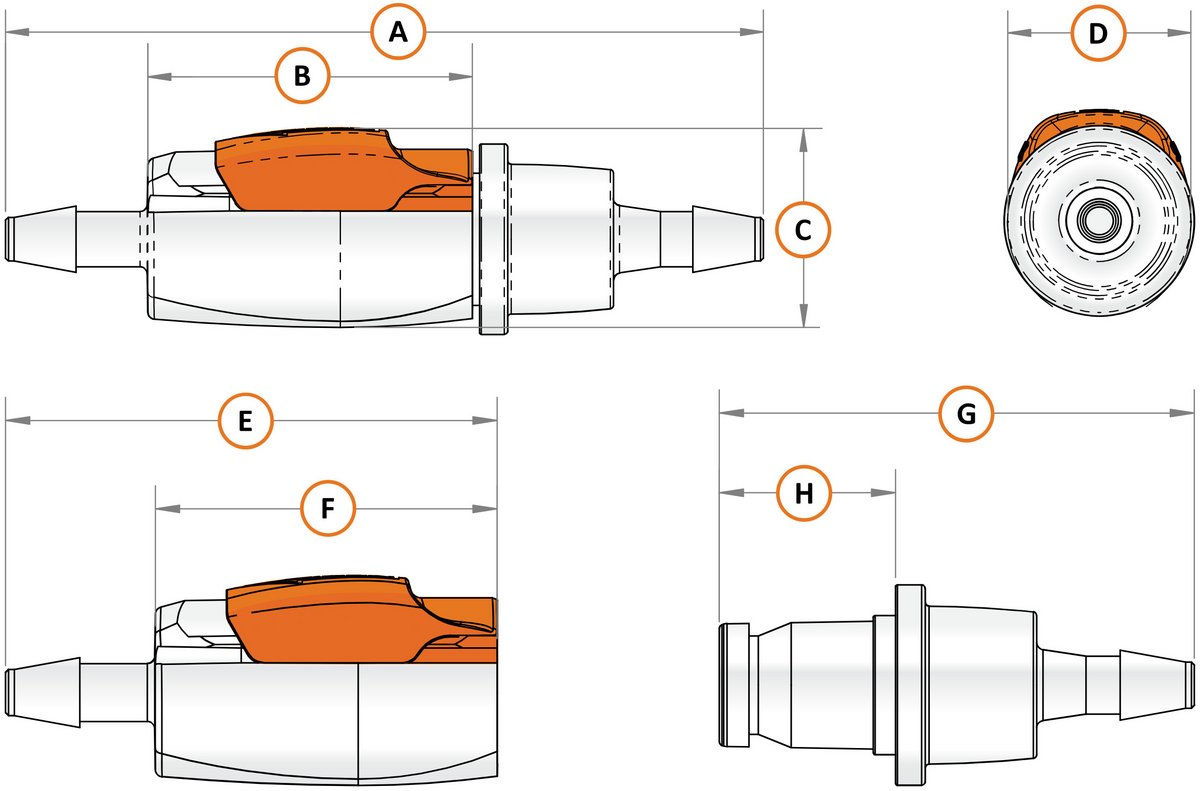

Sliding Latch Quick Couplings Dimensions Micro-V
Series
Barb size
A
B
C
D
F
F
G
H
Micro-V (1)
1/16″
43.94
23.37
14.48
13.21
28.45
23.37
27.43
14.22
Micro-V (2)
1/8″
54.1
23.37
14.48
13.21
33.53
23.37
32.51
14.22
Micro-V (3)
3/16″
64.26
23.37
14.48
13.21
38.61
23.37
37.59
14.22
Micro-V (4)
1/4″
69.6
23.37
14.48
13.21
39.88
23.37
41.15
14.22

Weight versions without valves (g) Micro-V

Series
Barb size
PP
PVDF
PP
PVDF
Micro-V (1)
1/16″
1.6
3.3
1.1
2.2
Micro-V (2)
1/8″
1.7
3.4
1
2.1
Micro-V (3)
3/16″
1.9
3.9
1.2
2.5
Micro-V (4)
1/4″
1.9
3.9
1.2
2.4

Dimensions (mm) Small, Medium, Large, X-Large

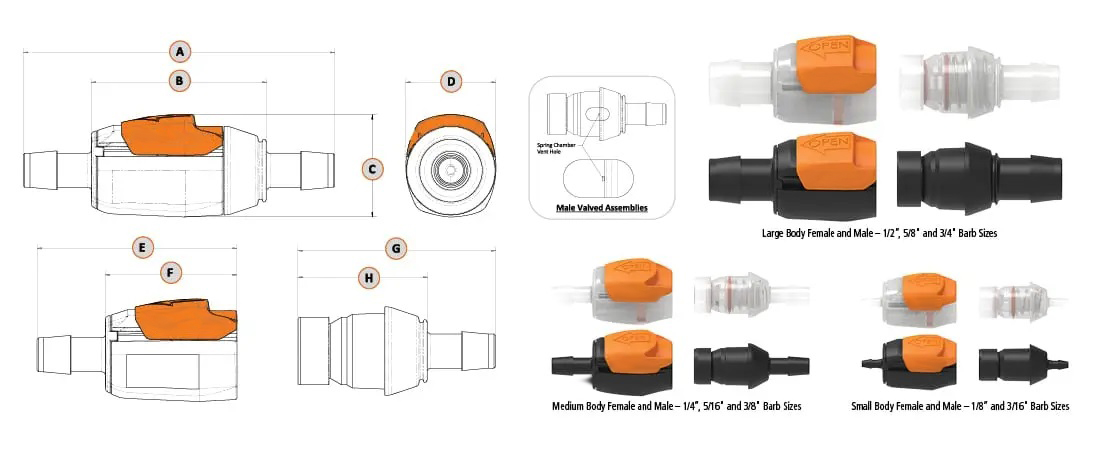

Dimensions Sliding Latch Quick Couplings Small, Medium, Large, X-Large
Series
A
B
C
D
F
F
G
H
Small (1)
66.04
45.72
22.86
21.34
46.99
36.58
43.18
33.02
Small (2)
76.2
45.72
22.86
21.34
52.07
36.58
48.26
33.02
Medium (1)
87.88
50.29
28.45
25.15
58.42
39.62
58.17
36.83
Medium (3)
92.96
50.29
28.45
25.15
60.96
39.62
58.17
36.83
Large (1)
116.33
65.28
38.1
33.53
74.42
49.02
73.66
48.26
Large (3)
126.24
65.28
38.1
33.53
79.5
49.02
78.74
48.26
X-Large (1)
146.81
75.69
46.23
40.13
92.46
56.64
91.44
55.88

Weight versions with valves (g)

Series
Female

Male


PP
PVDF
GFBN
PP
PVDF
GFBN
Small (1)
7
12
11
4
6
6
Small (2)
8
13
12
4
7
6
Medium (1)
11
18
17
6
9
9
Medium (3)
11
19
17
6
9
9
Large (1)
25
42
38
15
25
22
Large (3)
27
45
41
15
27
23
X-Large (1)
40
71
-
23
46
-

Weight versions without valves (g)

Series
Female

Male


PP
PVDF
GFBN
PP
PVDF
GFBN
Small (1)
7
12
11
2
4
3
Small (2)
8
13
12
2
4
3
Medium (1)
10
17
15
3
5
4
Medium (3)
10
18
16
3
6
4
Large (1)
22
39
34
9
18
14
Large (3)
24
42
37
9
18
14
X-Large (1)
38
69
-
21
44
-
