SBP Series - Miniature Syringe Pump

0,105nl (with 1/100 micro-step) | 10,5nl (with Fullstep) dosing steps with 100µl syringe capacity

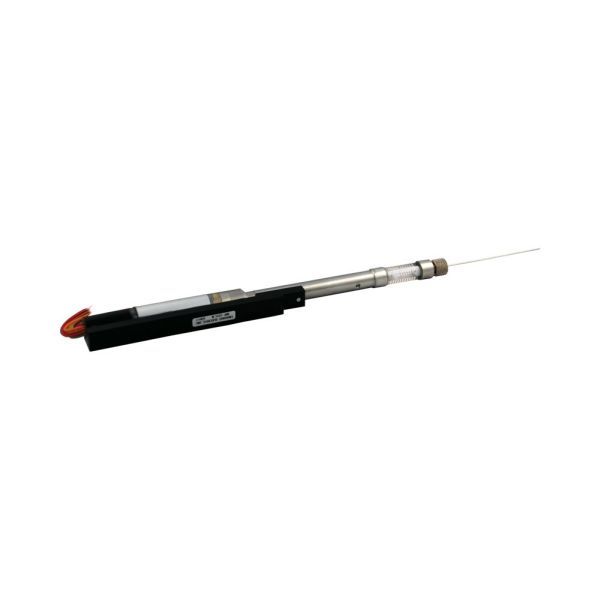

SBP Series - Miniature Syringe Pump

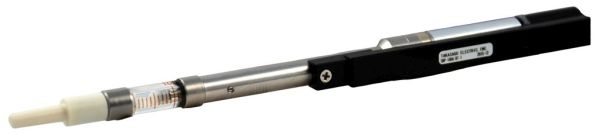

SBP Series - Miniature Syringe Pump with tip adaptor (Eppendorf® epT.I.P.S., 2-200µl)

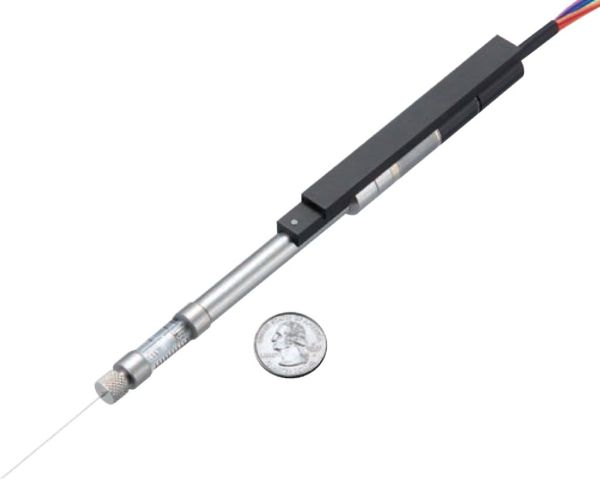

SBP Series - Miniature Syringe Pump size
SBP Series - Miniature Syringe Pump versions

Description

This miniature syringe pump has minimum dimensions of only Ø12 × L170 mm with integrated 2-phase stepper motor and transmission. A large number of available connections enable a wide range of options for the varied applications of our customers.

On request, we also offer a miniature 3/2-way valve, which can be attached to the pump head of this miniature syringe pump.

All these features make this pump well suitable for microfluidic applications and mobile devices.

The miniature syringe pumps can be mounted directly on a movable arm. Therefore a needle is immediately attached below the pump, reducing the air gap between the syringe and the sample to a minimum. This leads to higher accuracy.

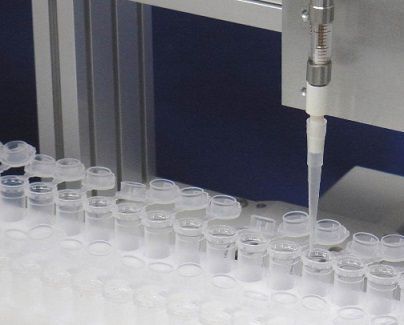

Miniature syringe pump application example

Specifications

Syringe capacity
100µl
Resolution
0.105nl (at 1/100 micro-step) | 10.5nl (at Flullstep)
Connection
needle | Luer | M6 (male | female) | 1 / 4-28UNF (male | female) | Adapter for exchangeable pipette tip (Eppendorf® epT.I.P.S., 2-200µl)
Wetted materials
Glass, PTFE, PVDF, stainless steel (needle)
Fluid temperature range
15 - 40 ° C
Ambient temperature range
15 - 40 ° C
Dimensions
Ø12 × L170 mm (without needle and sensor)
Mounting direction
Any
