PCRL Electronic pressure regulator - low flow

Optimized for low flow rates

PCRL pressure regulator

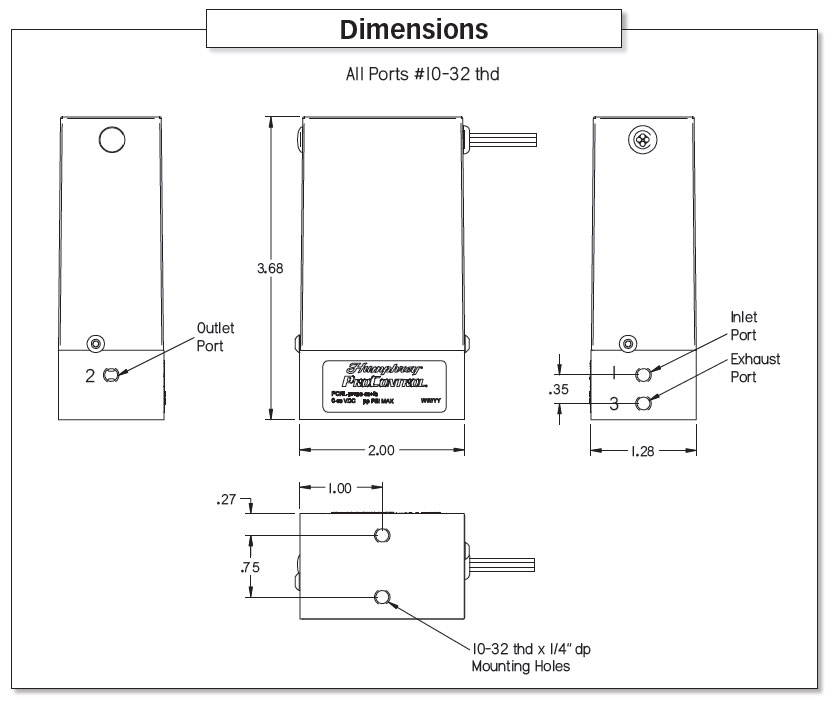

PCRL pressure regulator dimensions

Description

  • High accuracy and fast response time - due to proportional valve technology
  • Quiet operation - even at low pressures
  • Long service life - with several million cycles

Small flow version with Cv of 0.02.

Specifications

Media air, inerte gases (optional oxygen)
Pressure ranges 0 - 3.4 bar | 0 - 6.8 bar
Ambient temperature 0 - 70°C
Related voltage 12 VDC | 24 VDC
Cv 0.02
Response time 1 sec.
Pressure accuracy (typical) +/- 0,5% (full span)
Linearity (typical) +/- 0,5% (full span)
Connections 10-32 UNF
Internal valve wetted materials Cold-rolled stainless steel w/electroless,
nickel plating, brass, 304 and 403 stainless steel,
FKM seals, Nylon, Aluminum
Control signals 0 - 5V | 0 - 10V
Output signal 0 - 5V
Power supply 12 VDC | 24 VDC
Power consumption max. 200 mA
Weight approx. 273 g

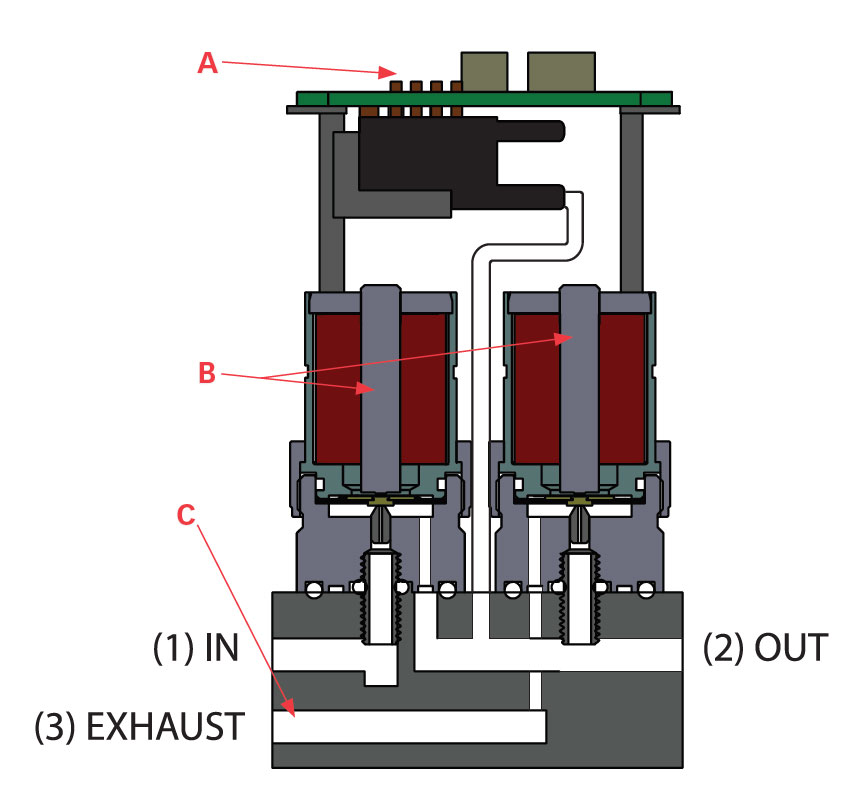

 Structure of PCRL pressure regulator - low flow

Structure of PCRL pressure regulator - low flow

A:
Analog control circuitry compensates for dynamic changes in output pressure, offering fast, accurate, closed-loop pressure control characteristics.

B:
The incorporation of two proportional control valves offers fast and smooth pressure control, excellent resolution, as well as optimized response times when pressure venting, and reduced overall air (media) consumption.

C:
Relief port can be plugged (with PF fitting), allowing for non-relieving type function.

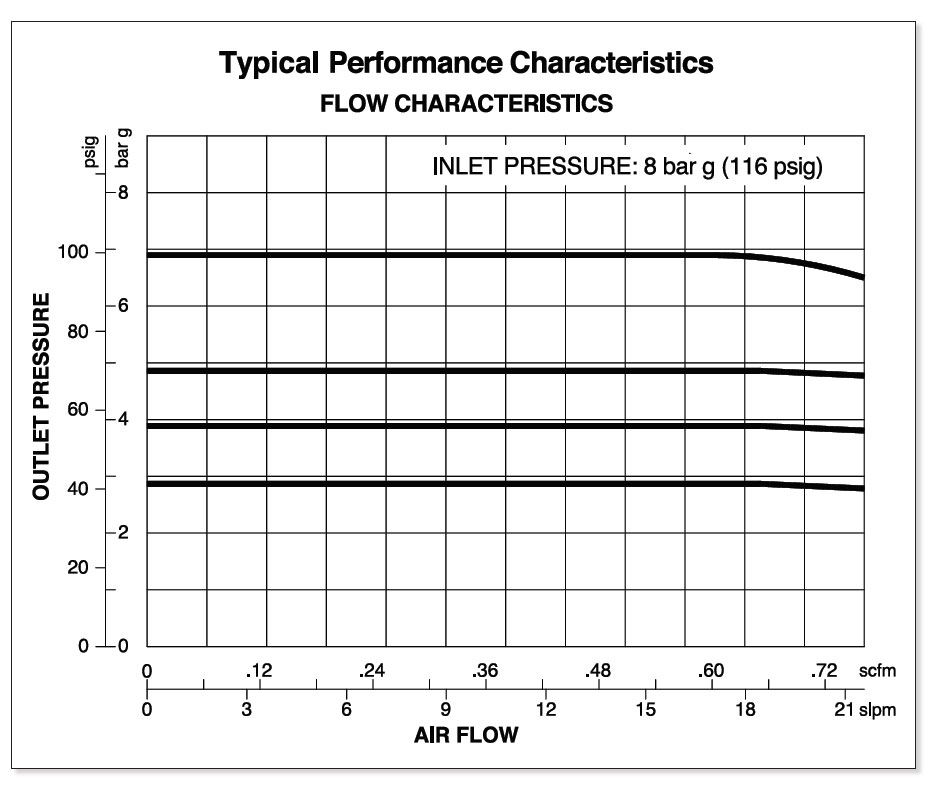

Typical flow characteristics

PCRL pressure regulator performance
