Fittings for PTFE tubing

Flare Type und Flange Type Fittinge.

Fittings for PTFE tubes - Flare Type
Fittings for PTFE tubes - Flange Type

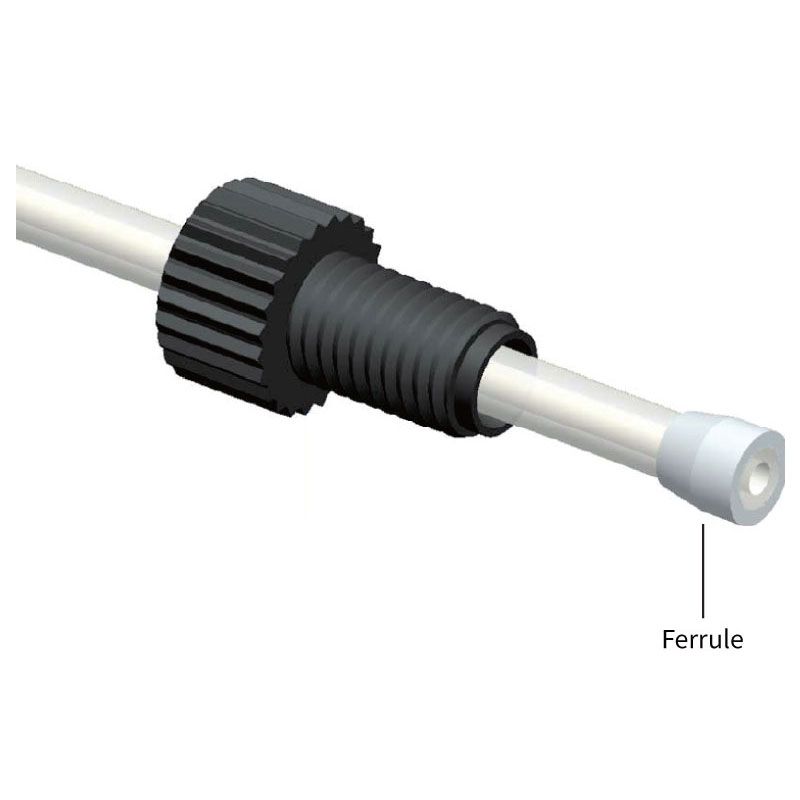

Fittings for PTFE tubes - Ferrule

Description

The Flare Type (SM series) and Flange Type (FM series) fittings for PTFE tubes are available for threads M5, M6, M8, 1 / 4-28UNF, 5 / 16-24UNF manufactured from ETFE and PTFE.

L-pieces and connectors in R1 / 8, R1 / 4, R3 / 8 are also available on request.

Fittings for PTFE tubes - Flare Type
Fittings for PTFE tubes - Flare Type Construction

The Flare Type fittings have a flat threaded base, which makes them easy to install because you do not have to enlarge the end of the PTFE tubing.

Fittinge für PTFE Schläuche - Flange Type
Fittings for PTFE tubes - Flange Type Construction

The end of the PTFE tubes must be enlarged for the Flange Type fittings.
