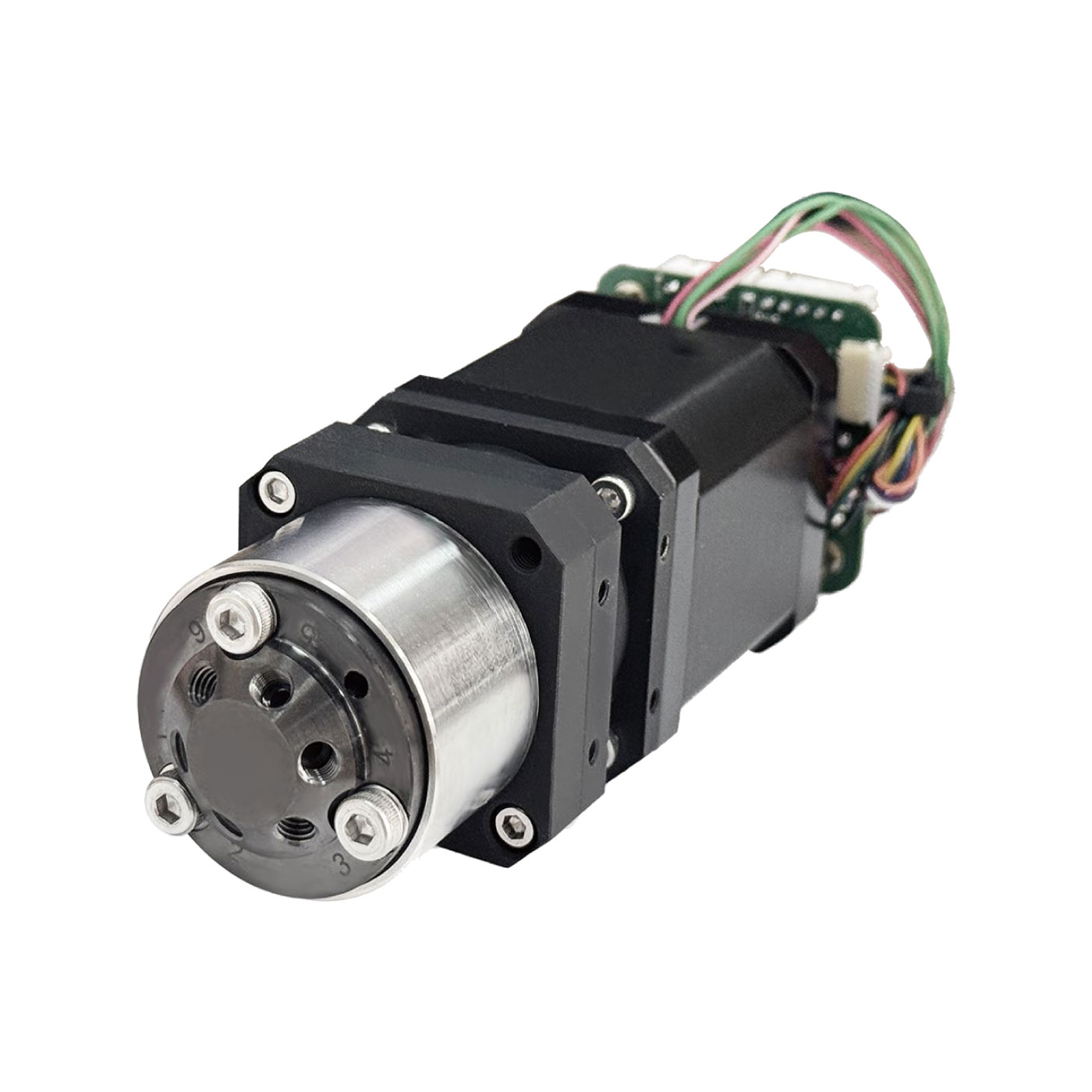

Ultra-High Pressure 6-Port / 2-Position Injection Valve for UHPLC | Precise Sample Injection
0.25 mm channel diameter and pressure ratings up to 100 MPa
Description
Ultra-high-pressure 6-port / 2-position injection valves are specifically designed for use in HPLC and UHPLC systems, enabling precise and reproducible sample injection under high operating pressures.
Material: 316 stainless steel
Bore diameter: 0.25 mm
Maximum pressure rating: 100 MPa
Specifications
Product
|
S3101-S
|
|---|---|
Type
|
6-Port / 2-Position Injection Valve
|
Ports
|
10-32 UNF Coned
|
Valve Body Material
|
316 Stainless Steel
|
Bore Diameter
|
0.25 mm
|
Maximum Pressure
|
100 MPa
|
Actuator
|
Stepper Motor with Controller
|
Voltage
|
24 VDC
|
Interface
|
RS-485 / RS-232
|
